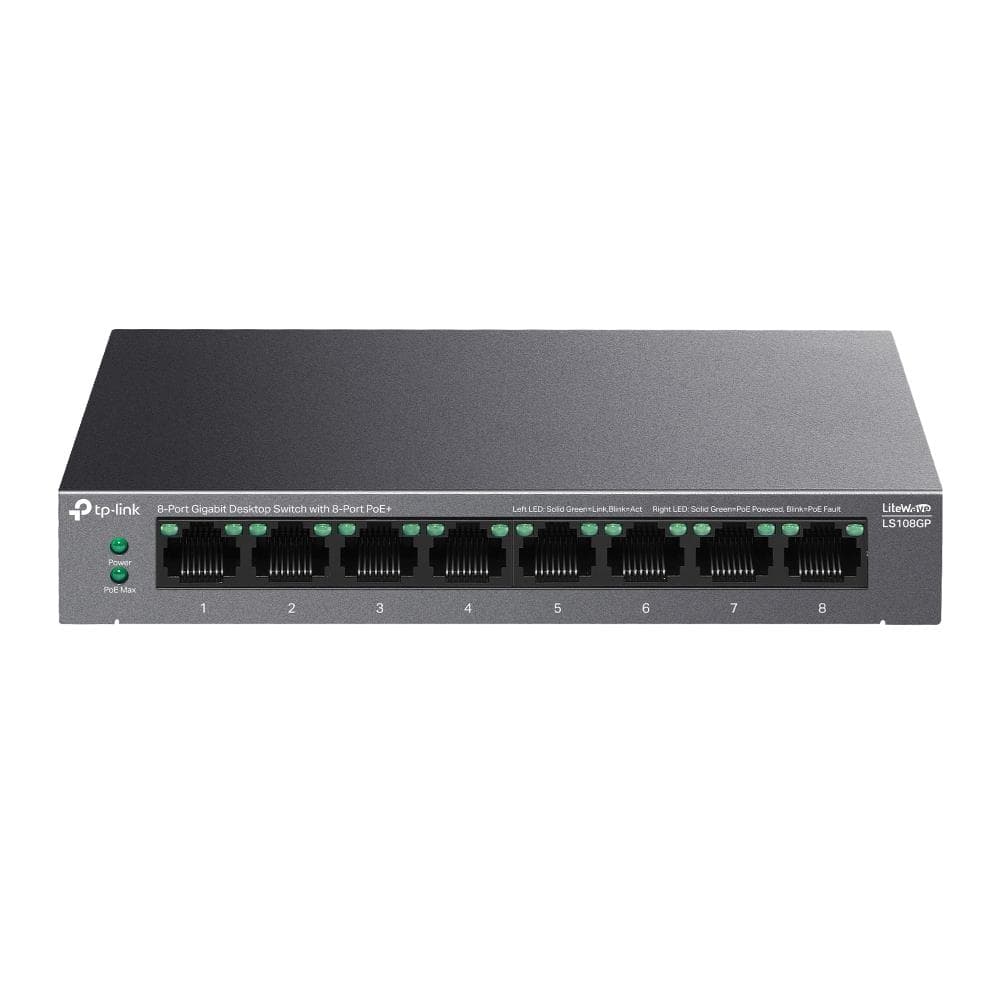

TP-Link LS108GP network switch 8 × 1G, 8 × PoE+ 62 W, unmanaged
TP-LINK

TP-Link LS108GP network switch 8 × 1G, 8 × PoE+ 62 W, unmanaged

The TP-Link LS108GP is an 8-port gigabit unmanaged network switch from the LiteWave series, and all eight ports deliver PoE+ power. The 62 W budget covers a small camera system or a couple of access points, with nothing to configure.

  • Ports: 8 × RJ-45 10/100/1000 Mbps, 16 Gbps switching capacity
  • PoE: 8 × PoE+ (802.3af/at), up to 30 W per port, 62 W in total
  • Modes: Extend Mode up to 250 m, PoE Auto Recovery
  • Management: unmanaged, plug and play
  • Housing and power: metal, fanless, desktop or wall, 158 × 99 × 25 mm, 53.5 V adapter included

Description

Eight powered ports over a single cable each

Every port carries both data and power, so a camera or access point needs just one network cable and no nearby socket. Extend Mode stretches the link to 250 metres, which helps with surveillance over a larger area. PoE Auto Recovery reboots a device that stops responding by itself, and the fanless metal housing runs quietly on a desk or on the wall.

Who this network switch is for

Homes and small offices that need to power a few cameras, access points or IP phones; users who do not want to configure network gear; and small surveillance setups where the cameras sit far from the building or router.

Specifications

General

BrandTP-LINK
Model nameLS108GP
Product colourBlack
User guideYes
Jumbo frames16000
Forwarding rate11.9
Auto-negotiationYes
MAC address table4000
Operating relative humidity (H-H)10 - 90
EAN4895252505986

Storage

Switching capacity16
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Power over Ethernet (PoE)Yes
Power connectorDC-in jack
Total Power over Ethernet (PoE) budget62
Power over Ethernet (PoE) power per port30
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity8
Power over Ethernet plus (PoE+) ports quantity8

Connectivity

Networking standardsIEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Keyboard & controls

Switch typeUnmanaged

Battery & power

Power consumption (max)71.61 W
AC input voltage220 V
AC input frequency50 Hz
Power sourceDC/PoE
Input current1.31
DC input voltage53.5
Power supply includedYes

Performance & capacities

Operating temperature (T-T)0 – 40 °C
Heat dissipation243.47

Features

LED indicatorsYes
10G supportNo
Package typeBox
Auto MDI/MDI-XYes
Flow control supportYes
Cable types supportedCat3/Cat4/Cat5/Cat5e
Quality of Service (QoS) supportYes

Dimensions & weight

Width158 mm
Depth99 mm
Height25 mm

Questions & answers

How many cameras can it power?

All eight ports are PoE+ and share a 62 W budget, with up to 30 W per port. If each camera draws less than 7 W, all eight can be powered at once.

Does the switch need to be configured?

No. The LS108GP is an unmanaged switch: plug in the cables and it starts working. It has no VLANs and no web interface.

How far away can a camera be installed?

In Extend Mode the switch carries data and power up to 250 metres, which is aimed at cameras covering large areas.
