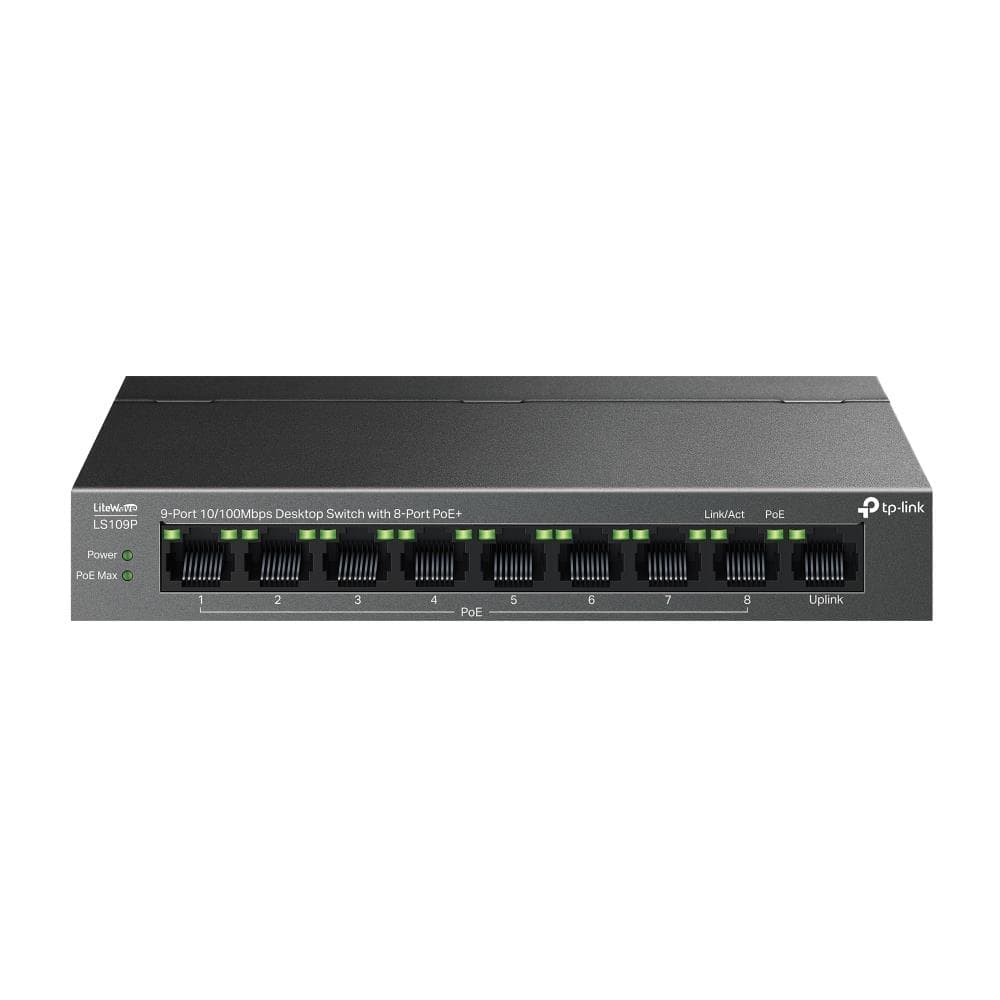

TP-LINK LS109P 8-Port PoE+ Fast Ethernet Switch

  • Switching capacity1.8
  • Power consumption (max)73.24 W
  • Operating temperature (T-T)0 – 40 °C
  • Switch typeUnmanaged
  • Width171 mm
  • Copper ethernet cabling technology100BASE-TX/10BASE-T

The TP-LINK LS109P is a compact unmanaged network switch with 9 Fast Ethernet ports, 8 of which deliver Power over Ethernet Plus (PoE+). It's designed for straightforward network expansion in small offices, retail environments, and remote installations where powered devices need reliable connectivity without extra cabling.

Description

Plug-and-play networking with integrated power delivery

  • 8 PoE+ ports supply up to 30W per port, powering IP cameras, access points, and VoIP phones directly from the network cable
  • 9 Fast Ethernet ports (10/100 Mbps) handle standard office and surveillance traffic efficiently
  • Unmanaged design means zero configuration—connect and it works immediately
  • Compact form factor fits into tight spaces behind racks or wall-mounted installations

Ideal for small businesses deploying IP security systems, hospitality venues adding wireless coverage, or IT installers needing a dependable PoE switch without management overhead. Works seamlessly with standard network equipment and powered devices that support PoE or PoE+ standards.

Specifications

General

BrandTP-LINK
Model nameLS109P
Product colourBlack
FanlessYes
User guideYes
Number of fans0
Wall mountableYes
Forwarding rate1.3392
Auto-negotiationYes
MAC address table2000
Store-and-forwardYes
Operating relative humidity (H-H)10 - 90
EAN4895252504620

Storage

Switching capacity1.8
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Power over Ethernet (PoE)Yes
Copper ethernet cabling technology100BASE-TX/10BASE-T
Power over Ethernet (PoE) power per port30
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity9
Power over Ethernet plus (PoE+) ports quantity8

Connectivity

Networking standardsIEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Keyboard & controls

Switch typeUnmanaged

Battery & power

Power consumption (max)73.24 W
AC input voltage220 V
AC input frequency50 Hz
Power sourceDC/PoE
Input current1.31
DC input voltage53.5
Power supply includedYes

Performance & capacities

Operating temperature (T-T)0 – 40 °C
Heat dissipation249

Features

LED indicatorsYes
10G supportNo
Package typeBox
Auto MDI/MDI-XYes
Flow control supportYes
Jumbo frames supportYes
Cable types supportedCat3/Cat4/Cat5/Cat5e
Quality of Service (QoS) supportYes

Dimensions & weight

Width171 mm
Depth98 mm
Height27 mm
