TP-LINK

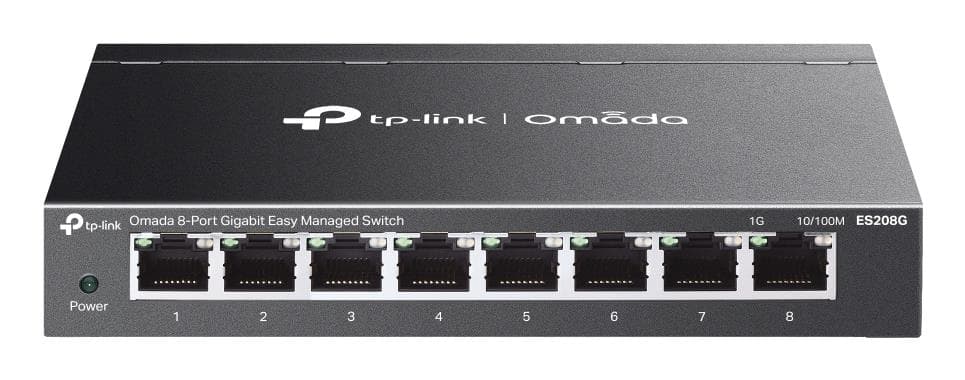

TP-Link Omada ES208G 8-Port Gigabit Managed Switch

Switching capacity16
Power consumption (max)2.7 W
Operating temperature (T-T)0 – 5 – 45 °C
Flash memory64 MB
Switch typeManaged
Width158 mm

The TP-Link Omada ES208G is an 8-port gigabit managed switch built for small businesses and surveillance networks that need reliable, centrally controlled connectivity. As a Layer 2 managed network switch, it combines straightforward setup with genuine network control — all without a recurring software fee.

Description

Cloud Management Without the Complexity

8× Gigabit RJ45 ports (10/100/1000 Mbps) deliver full-speed wired connections for every device on the network.
Free Omada Cloud Essentials support lets you monitor and manage the switch remotely via browser or the Omada mobile app.
VLAN, QoS, and Port Isolation give administrators fine-grained traffic control for security cameras and business-critical devices.
Fanless, metal-cased design means silent operation and durability in desktop or wall-mounted deployments.
Automatic Loop Prevention and IGMP Snooping keep multicast traffic clean without manual intervention.

The ES208G suits small offices, retail spaces, and IP surveillance setups where a straightforward managed switch with cloud oversight is needed but rack mounting and PoE are not requirements.

Specifications

General

Brand	TP-LINK
Model name	ES208G
Product colour	Black
Series	Omada
Fanless	Yes
Stackable	No
Fast leave	Yes
User guide	Yes
Jumbo frames	15000
Cloud-managed	Yes
IGMP snooping	Yes
Rack mounting	No
Wall mountable	Yes
Forwarding rate	11.9
Number of VLANs	32
Auto-negotiation	Yes
Link aggregation	Yes
MAC address table	8000
Store-and-forward	Yes
Firmware upgradeable	Yes
Packet buffer memory	4
Web-based management	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
Unified static configuration	Yes
Zero Touch Provisioning (ZTP)	Yes
Mean time between failures (MTBF)	1141726
Operating relative humidity (H-H)	10 - 90
EAN	1210002600668

Storage

Switching capacity	16
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90

Camera

Flash memory	64 MB

Ports

Power over Ethernet (PoE)	No
Port mirroring	Yes
Virtual LAN features	MTU VLAN/Port-based VLAN/Tagged VLAN
Gigabit Ethernet (copper) ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8

Connectivity

Networking standards	IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3at/IEEE 802.3i/IEEE 802.3x

Keyboard & controls

Switch type	Managed
Switch layer	L2

Battery & power

AC adapter included	Yes
Power consumption (max)	2.7 W
Power source	DC
Input current	0.6
DC input voltage	5
Power supply included	Yes
Surge protection voltage	6

Performance & capacities

Operating temperature (T-T)	0 – 5 – 45 °C
Heat dissipation	9.09

Features

LED indicators	Yes
10G support	No
Package type	Box
VLAN support	Yes
DHCP features	DHCP client
Auto MDI/MDI-X	Yes
Loop protection	Yes
Surge protection	Yes
Flow control support	Yes
Jumbo frames support	Yes
Quality of Service (QoS) support	Yes
