TP-LINK

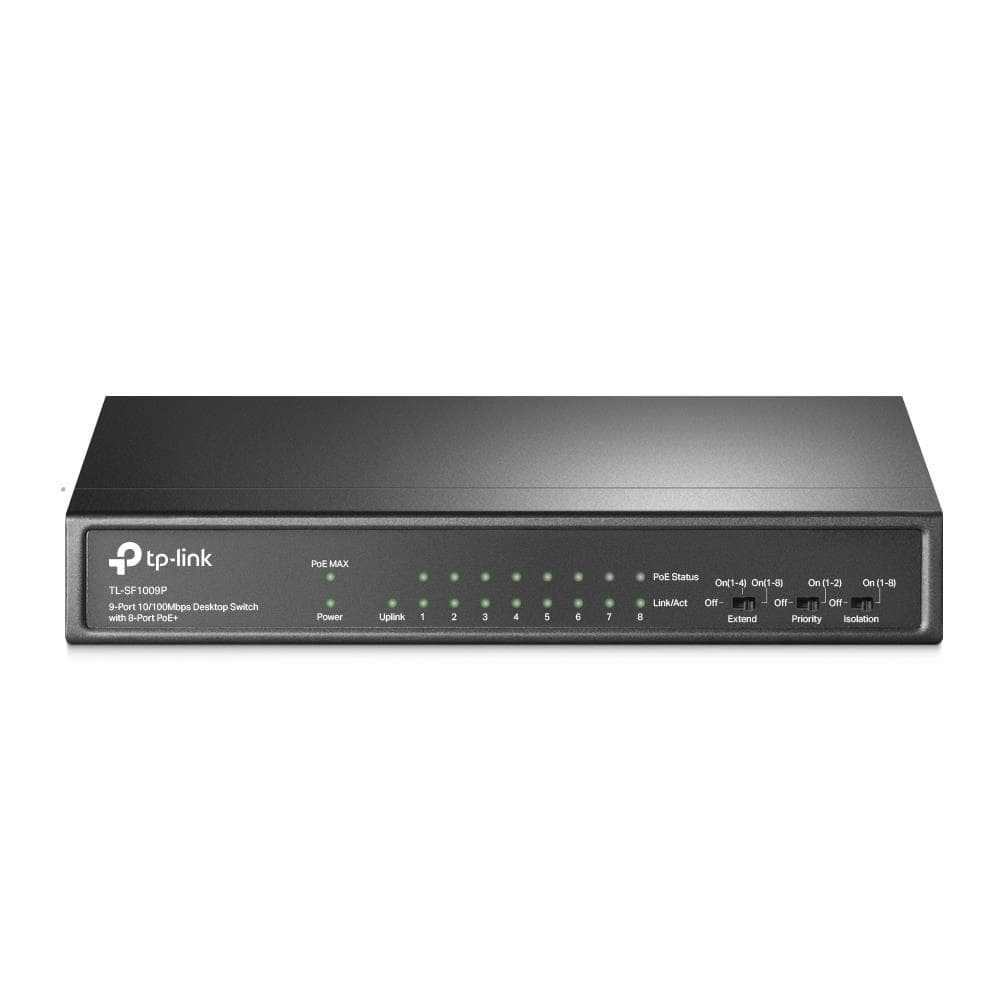

TP-Link TL-SF1009P 9-Port Unmanaged PoE+ Switch, 8×PoE+

Switching capacity1.6
Power consumption (max)77.08 W
Operating temperature (T-T)0 – 40 °C
Switch typeUnmanaged
Width171 mm
Power connectorDC-in jack

The TP-Link TL-SF1009P is a 9-port unmanaged network switch with eight 802.3af/at PoE+ ports, delivering up to 30 W per port and a 65 W total PoE power budget — all in a compact desktop unit that requires zero configuration.

Description

Plug-and-Play PoE Power for Cameras, Access Points and Phones

8 × PoE+ ports supporting 802.3af/at, up to 30 W each, with a shared 65 W budget managed by intelligent power prioritisation
Extended PoE mode stretches transmission distance up to 250 m — ideal for IP cameras located far from the switch
Fast Ethernet (10/100 Mbps) on all 9 ports, with one uplink port for connecting to an existing network
Isolation mode keeps PoE devices from communicating with each other, adding a layer of network security
Unmanaged, desktop form factor — no rack space needed, no software setup required

A practical fit for small offices, retail premises, dormitories and home setups running IP surveillance cameras, wireless access points or VoIP phones over a single Ethernet cable.

Specifications

General

Brand	TP-LINK
Model name	9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
Product colour	Black
Housing material	Metal
Fanless	Yes
Stackable	No
User guide	Yes
Full duplex	Yes
Half duplex	Yes
Rack mounting	No
Wall mountable	Yes
Forwarding rate	1.3392
Auto-negotiation	Yes
MAC address table	2000
Store-and-forward	Yes
Sustainability compliance	Yes
Operating relative humidity (H-H)	10 - 90
EAN	6935364052966

Storage

Switching capacity	1.6
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90

Ports

Power over Ethernet (PoE)	Yes
Power connector	DC-in jack
Copper ethernet cabling technology	100BASE-TX/10BASE-T
Fast Ethernet (copper) ports quantity	9
Total Power over Ethernet (PoE) budget	65
Power over Ethernet (PoE) power per port	30
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity	9
Power over Ethernet plus (PoE+) ports quantity	8

Connectivity

Networking standards	IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Keyboard & controls

Switch type	Unmanaged

Battery & power

AC adapter included	Yes
Power consumption (max)	77.08 W
AC input voltage	220 V
AC input frequency	50 Hz
Power source	DC/PoE
Input current	1.31
DC input voltage	53.5
Power supply included	No

Performance & capacities

Operating temperature (T-T)	0 – 40 °C
Heat dissipation	262.84

Features

LED indicators	Activity/Link/PoE/Power
10G support	No
Package type	Box
Auto MDI/MDI-X	Yes
Flow control support	Yes
Cable types supported	Cat3/Cat4/Cat5/Cat5e
MAC address auto-aging supported	Yes
MAC address auto-learning supported	Yes
