TP-LINK

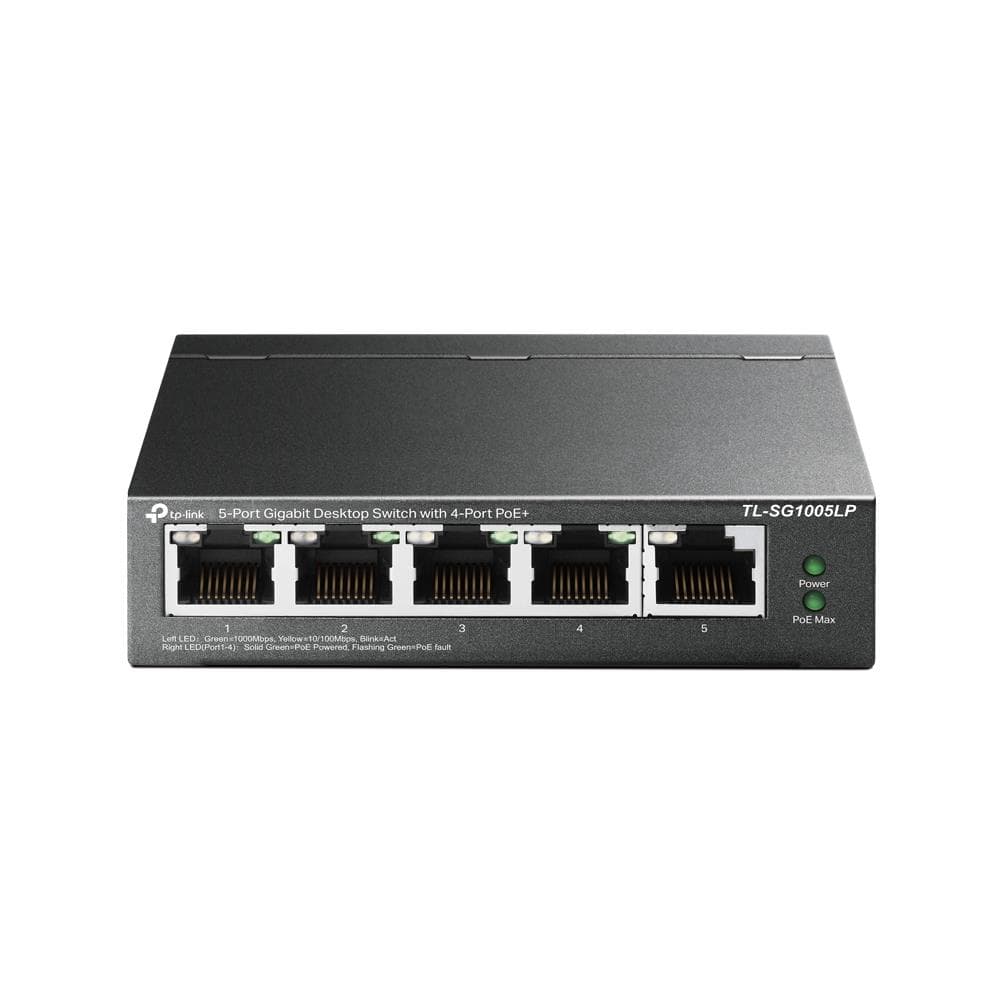

TP-LINK TL-SG1005LP 5-port Gigabit switch with PoE

Switching capacity10
Power consumption (max)47.5 W
Operating temperature (T-T)0 – 40 °C
Switch typeUnmanaged
Width99.8 mm
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T

The TP-LINK TL-SG1005LP is an unmanaged network switch designed to expand your wired connectivity with built-in Power over Ethernet. This 5-port gigabit switch delivers plug-and-play simplicity, making it ideal for small offices, home networks, and locations where running separate power cables isn't practical.

Description

Reliable connectivity with integrated PoE

5 Gigabit Ethernet ports (10/100/1000 Mbps) for fast, stable data transfer
PoE support on one dedicated port to power compatible devices without extra adapters
Unmanaged design—no configuration needed, just connect and go
Compact desktop form factor fits neatly in any workspace

Whether you're setting up IP cameras, wireless access points, or expanding your office network, this switch handles the job without fuss. It's built for users who want straightforward networking without complicated management interfaces.

Specifications

General

Brand	TP-LINK
Product colour	Black
Fanless	Yes
Stackable	No
User guide	Yes
Jumbo frames	16000
IGMP snooping	Yes
Rack mounting	No
Wall mountable	Yes
Forwarding rate	7.44
Auto-negotiation	Yes
MAC address table	2000
Store-and-forward	Yes
Sustainability compliance	Yes
Operating relative humidity (H-H)	10 - 90
EAN	6935364052720

Storage

Switching capacity	10
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90

Ports

Power over Ethernet (PoE)	Yes
Copper ethernet cabling technology	1000BASE-T/100BASE-TX/10BASE-T
Total Power over Ethernet (PoE) budget	40
Gigabit Ethernet (copper) ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	5
Power over Ethernet plus (PoE+) ports quantity	4

Connectivity

Networking standards	IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Keyboard & controls

Switch type	Unmanaged

Battery & power

Power consumption (max)	47.5 W
AC input voltage	100 – 240 V
AC input frequency	50/60
Power source	DC/PoE
Input current	0.81
DC input voltage	53.5
Maximum cable length	100
Power supply included	Yes

Performance & capacities

Operating temperature (T-T)	0 – 40 °C
Heat dissipation	161.98

Features

LED indicators	Yes
10G support	No
Package type	Box
Auto MDI/MDI-X	Yes
Flow control support	Yes
Jumbo frames support	Yes
Cable types supported	Cat3/Cat4/Cat5/Cat5e/Cat6
MAC address auto-aging supported	Yes
Quality of Service (QoS) support	Yes
MAC address auto-learning supported	Yes
