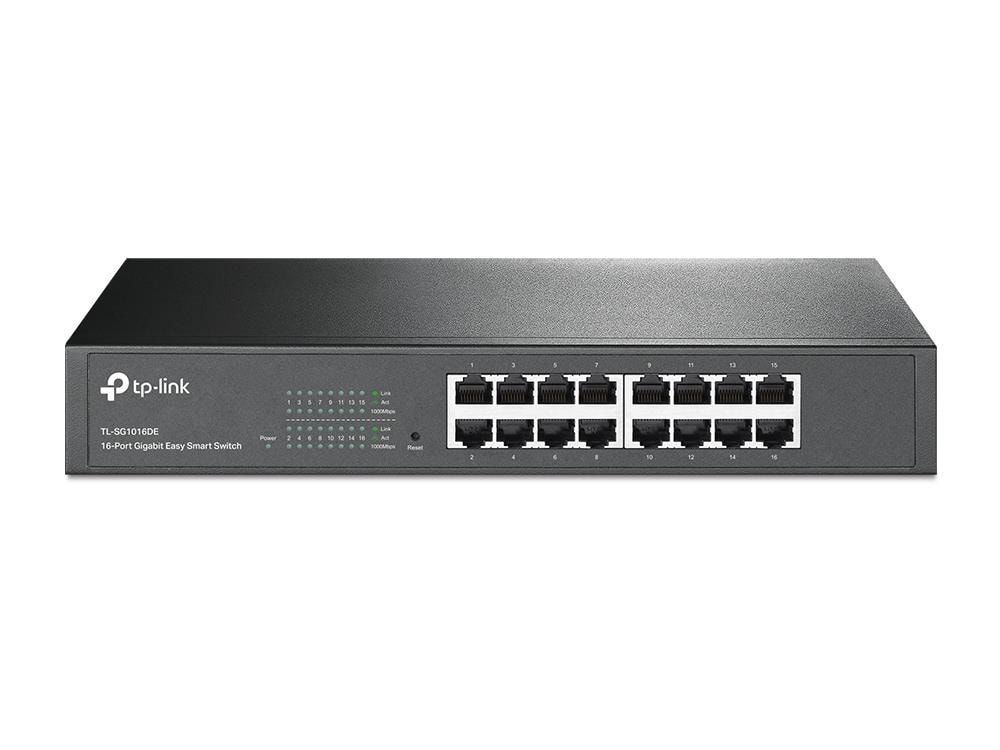

TP-Link TL-SG1016DE Easy Smart network switch 16 × 1G, VLAN, QoS, 1U
TP-LINK

TP-Link TL-SG1016DE Easy Smart network switch 16 × 1G, VLAN, QoS, 1U

The TP-Link TL-SG1016DE is a 16-port gigabit Easy Smart network switch, a step up from an unmanaged model. Its web interface lets you split the network into VLANs, give voice and video priority with QoS, and track down faults with port mirroring and cable diagnostics.

  • Ports: 16 × RJ-45 Gigabit Ethernet (10/100/1000), auto MDI/MDI-X
  • Management: L2 Easy Smart, web interface and management utility, 32 VLANs (MTU, port-based and 802.1Q)
  • Traffic control: QoS with 4 queues, IGMP snooping, rate limiting, broadcast storm control, link aggregation
  • Performance: 32 Gbit/s switching capacity, 8000-entry MAC table, 9000-byte jumbo frames
  • Mounting: desktop or 1U rack, rack mount kit included, metal housing, 284 × 180 × 44 mm
  • Power: built-in 100–240 V AC power supply, up to 19.15 W consumption

Description

Simple management without heavy network gear

Easy Smart lets you separate cameras, a guest network and office computers with VLANs and give IP phones priority so calls do not break up. Port mirroring, loop prevention and cable diagnostics help you find a connection problem quickly. Setup is done in the web interface or the management utility.

Who this network switch is for

Small businesses that want to split their network with VLANs but do not need a fully managed switch; IT staff who rely on port mirroring for troubleshooting; and offices where the switch sits on a desk or in a server rack.

Specifications

General

BrandTP-LINK
Form factor1U
Model name16-Port Gigabit Easy Smart Network Switch
Product colourBlack
Housing materialMetal
User guideYes
Resource CDYes
Jumbo frames9000
IGMP snoopingYes
Rack mountingYes
Rate limitingYes
Rack mount kitYes
Forwarding rate23.8
Number of VLANs32
Auto-negotiationYes
Link aggregationYes
Number of queues4
MAC address table8000
Store-and-forwardYes
Packet buffer memory0.512
Broadcast storm controlYes
Sustainability complianceYes
Operating relative humidity (H-H)10 - 90
EAN6935364021269

Storage

Switching capacity32
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Power over Ethernet (PoE)No
Port mirroringYes
Power connectorAC-in jack
Virtual LAN featuresPort-based VLAN/Tagged VLAN
Copper ethernet cabling technology1000BASE-T/100BASE-T/100BASE-TX
Gigabit Ethernet (copper) ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity16

Connectivity

Networking standardsIEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x

Software & security

Compatible operating systemsWindows

Keyboard & controls

Switch typeManaged
Switch layerL2

Battery & power

Power consumption (max)19.15 W
AC input voltage100 – 240 V
AC input frequency50/60
Power sourceAC
Maximum cable length100
Power supply includedYes

Performance & capacities

Operating temperature (T-T)0 – 40 °C
Heat dissipation34.52

Features

Cables includedAC
LED indicatorsYes
10G supportNo
Package typeBox
VLAN supportYes
Auto MDI/MDI-XYes
Flow control supportYes
Jumbo frames supportYes
Cable types supportedCat3/Cat5/Cat6
Quality of Service (QoS) supportYes

Dimensions & weight

Width284 mm
Depth180 mm
Height44 mm

Questions & answers

How does Easy Smart differ from an unmanaged switch?

An unmanaged switch has no settings at all. The TL-SG1016DE lets you configure VLANs, QoS, IGMP snooping, port mirroring and link aggregation without the complexity of a fully managed switch.

How is the switch configured?

Through the web interface or the TP-Link management utility. The manufacturer lists Windows as the supported system for the utility.

Does the TL-SG1016DE fit a server rack?

Yes. The housing is 1U high and the rack mount kit is included, and its compact size also suits a desk.
