TP-LINK

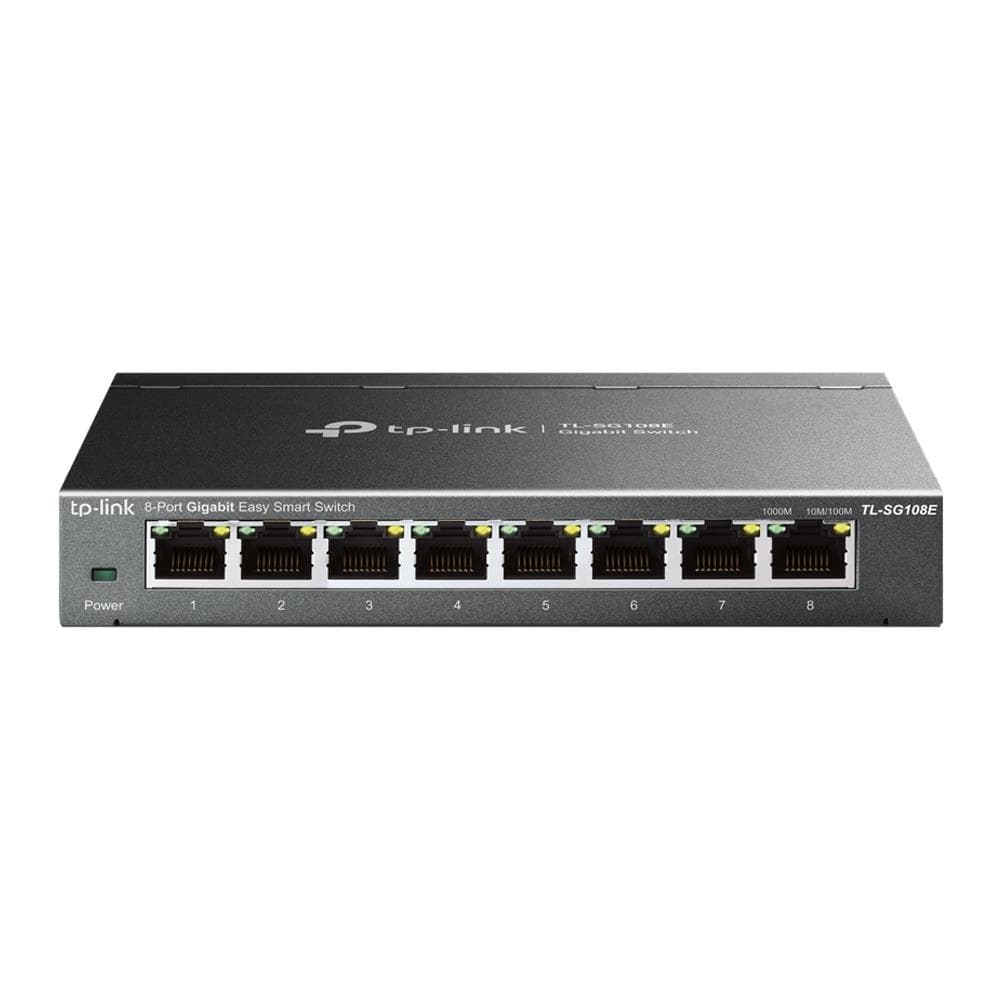

TP-Link TL-SG108E 8-Port Gigabit Managed Network Switch

Switching capacity16
Power consumption (max)3.55 W
Operating temperature (T-T)0 – 40 °C
Security algorithmsSNMP/SNMPv2/SNMPv3
Switch typeManaged
Width158 mm

The TP-Link TL-SG108E is an 8-port gigabit managed switch that gives small offices and home networks precise control over their wired infrastructure. Unlike unmanaged switches, it lets you configure traffic behaviour through a web-based interface — making it a practical network switch for anyone who needs more than plug-and-play connectivity.

Description

Gigabit Speeds with Smart Management Built In

8 × Gigabit Ethernet ports (10/100/1000 Mbps) deliver non-blocking throughput for large file transfers and bandwidth-heavy applications.
VLAN support lets you segment the network into isolated groups for better security and performance.
QoS (Quality of Service) prioritises latency-sensitive traffic such as VoIP and video conferencing.
IGMP Snooping optimises multicast delivery, benefiting IPTV and similar streaming applications.
Durable metal casing protects internal components for reliable long-term operation.

The TL-SG108E suits small businesses, home offices, and prosumers who need managed switch functionality — VLAN segmentation, traffic prioritisation, and network monitoring — without the complexity of enterprise-grade equipment.

Specifications

General

Brand	TP-LINK
Product colour	Black
Housing material	Metal
User guide	Yes
Jumbo frames	15000
IGMP snooping	Yes
Plug and Play	Yes
Forwarding rate	11.9
Number of VLANs	32
Auto-negotiation	Yes
Link aggregation	Yes
MAC address table	4000
Store-and-forward	Yes
Packet buffer memory	1.5
Web-based management	Yes
Broadcast storm control	Yes
Operating relative humidity (H-H)	10 - 90
EAN	6935364021856

Storage

Switching capacity	16
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90

Ports

Port mirroring	Yes
Virtual LAN features	Port-based VLAN
Gigabit Ethernet (copper) ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8

Connectivity

Networking standards	IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3u/IEEE 802.3x
Security algorithms	SNMP/SNMPv2/SNMPv3

Keyboard & controls

Switch type	Managed
Switch layer	L2

Battery & power

Power consumption (max)	3.55 W
Input voltage	9 V
Power source	DC
Input current	0.6
Power supply included	Yes

Performance & capacities

Operating temperature (T-T)	0 – 40 °C
Heat dissipation	12.12

Features

Cables included	AC
LED indicators	Yes
10G support	No
Package type	Box
VLAN support	Yes
Auto MDI/MDI-X	Yes
Loop protection	Yes
Jumbo frames support	Yes
Cable types supported	Cat3/Cat4/Cat5/Cat5e
Quality of Service (QoS) support	Yes
