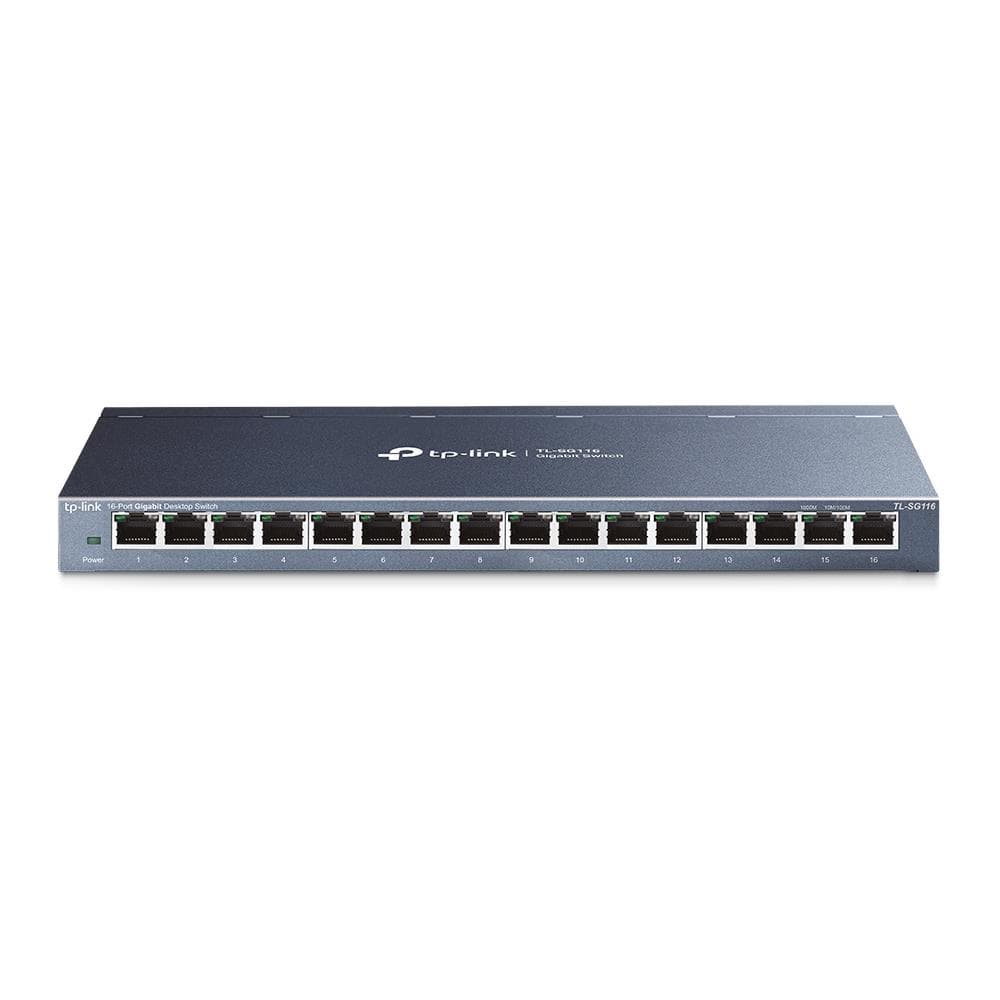

TP-Link TL-SG116 network switch 16 × 1G, unmanaged, desktop or wall mount
TP-LINK

TP-Link TL-SG116 network switch 16 × 1G, unmanaged, desktop or wall mount

The TP-Link TL-SG116 is an unmanaged 16-port gigabit network switch for a desk or a wall. It works as soon as it is plugged in, the fanless steel housing is silent, and QoS and IGMP snooping are built in and active without any configuration.

  • Ports: 16 × RJ-45 10/100/1000 Mbit/s, auto MDI/MDIX
  • Performance: 32 Gbit/s switching capacity, 8000-entry MAC table, 10 KB jumbo frames
  • Traffic: 802.1p/DSCP QoS, IGMP snooping, 802.3x flow control
  • Management: unmanaged, no setup needed
  • Housing: steel, fanless, rubber feet, 286 × 111.7 × 25.4 mm
  • Power: 12 V adapter included, up to 10 W

Description

A silent switch for next to your desk

With no fan, the switch can sit in a study, a studio or a living room. Rubber feet keep it in place on a desk, and it can also be mounted on a wall. Energy-saving technology adjusts consumption to each port's link status and cable length, and maximum consumption is just 10 W.

Who this network switch is for

Homes, small offices or creative studios where large files move between computers, a NAS and a server and the router has run out of ports. If you do not need VLANs or port mirroring, this switch gets by without any setup at all.

Specifications

General

BrandTP-LINK
Product colourBlack
Housing materialSteel
Full duplexYes
Rubber feetYes
Jumbo frames10000
IGMP snoopingYes
Plug and PlayYes
Rack mountingNo
Forwarding rate23.8
Auto-negotiationYes
MAC address table8000
Quick start guideYes
Store-and-forwardYes
Packet buffer memory4.1
Operating relative humidity (H-H)10 - 90
EAN6935364084325

Storage

Switching capacity32
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Power over Ethernet (PoE)No
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Gigabit Ethernet (copper) ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity16

Connectivity

Networking standardsIEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x

Keyboard & controls

Switch typeUnmanaged

Battery & power

AC adapter includedYes
Power consumption (max)10 W
Input voltage12 V
Power sourceDC
Input current1
Power supply includedYes

Performance & capacities

Operating temperature (T-T)0 – 40 °C
Heat dissipation34.12

Features

LED indicatorsYes
10G supportNo
Package typeBox
Auto MDI/MDI-XYes
Flow control supportYes
Jumbo frames supportYes
Quality of Service (QoS) supportYes

Dimensions & weight

Width286 mm
Depth111.7 mm
Height25.4 mm

Questions & answers

How does it differ from the TL-SG116E?

Ports and housing dimensions are the same. The TL-SG116 is fully unmanaged, while the TL-SG116E is an Unmanaged Pro model whose web interface lets you configure VLANs, port mirroring and cable diagnostics.

Can it be rack-mounted?

No, the manufacturer does not list rack mounting. The housing sits on a desk or mounts on a wall.

Does it support PoE?

No, this model has no PoE. The switch itself is powered by the included 12 V adapter.
