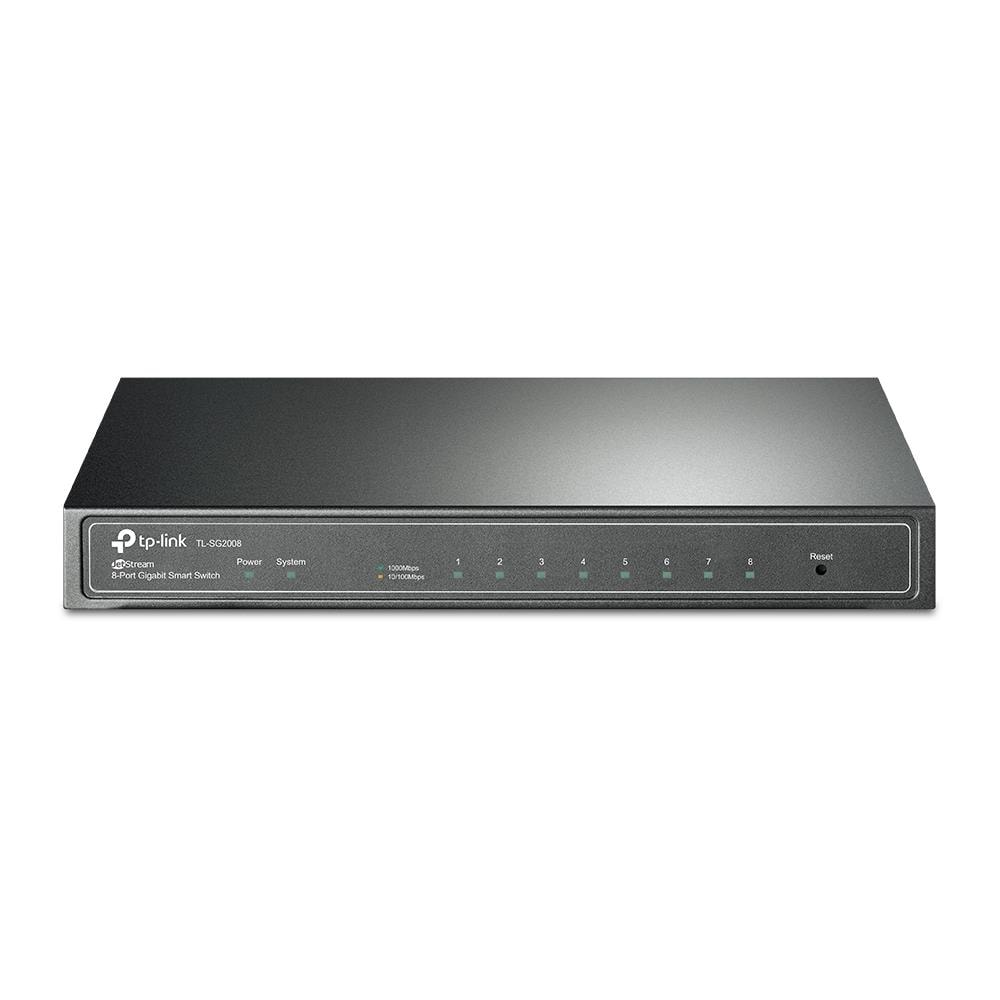

TP-Link Omada TL-SG2008 network switch 8 × 1G, managed L2, VLAN, ACL
TP-LINK

TP-Link Omada TL-SG2008 network switch 8 × 1G, managed L2, VLAN, ACL

The TP-Link Omada TL-SG2008 (JetStream) is an 8-port gigabit managed L2 network switch for small and medium business networks. 802.1Q VLANs, ACLs, QoS and IGMP snooping are configured through the web interface, command line or SNMP, and the fanless housing runs silently.

  • Ports: 8 × RJ-45 10/100/1000 Mbps
  • Management: managed L2, web interface, CLI, SNMP v1/v2/v3, RMON, SSH/SSL
  • Features: 802.1Q VLAN (up to 512), Voice VLAN, ACL, QoS L2–L4, STP/RSTP/MSTP, LACP
  • PoE: no
  • Housing and power: fanless, 209 × 126 × 26 mm, 100–240 V, up to 6.42 W draw

Description

Voice and video get priority

QoS prioritises traffic by port, 802.1p and DSCP, so calls and video stay clear even on a busy network. Voice VLAN keeps IP phones apart from other traffic. IGMP snooping sends a multicast stream only to those who asked for it, while ACLs, port security and storm control protect the network. Loopback detection and cable diagnostics make maintenance easier.

Who this network switch is for

Small and medium businesses that need a properly managed switch with VLANs, ACLs and QoS; IT administrators who prefer a command line and SNMP monitoring; and offices where IP phones and computers share the same network.

Specifications

General

BrandTP-LINK
Model nameTL-SG2008
Product colourBlack
SeriesOmada
FanlessYes
User guideYes
Full duplexYes
Half duplexYes
Jumbo frames9216
IGMP snoopingYes
Rate limitingYes
Forwarding rate11.9
Number of VLANs512
Link aggregationYes
System event logYes
MAC address table8000
Packet buffer memory4
Web-based managementYes
Spanning tree protocolYes
Broadcast storm controlYes
Access Control List (ACL)Yes
Operating relative humidity (H-H)10 - 90
EAN6935364021788

Storage

Switching capacity16
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Power over Ethernet (PoE)No
Port mirroringYes
Virtual LAN featuresMulticast VLAN/Tagged VLAN/Voice VLAN
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Gigabit Ethernet (copper) ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity8

Connectivity

Networking standardsIEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Security algorithmsSSH/SSH-2/SSL/TLS

Keyboard & controls

Switch typeManaged
Switch layerL2

Battery & power

Power consumption (max)6.42 W
AC input voltage100 – 240 V
AC input frequency50 – 60 Hz
Power sourceAC
Power supply includedYes

Performance & capacities

Operating temperature (T-T)0 – 40 °C

Features

Cables includedAC
LED indicatorsYes
10G supportNo
MIB supportY
VLAN supportYes
DHCP featuresDHCP client
SSH/SSL supportYes
Multicast supportYes
Flow control supportYes
Jumbo frames supportYes
Cable types supportedCat3/Cat4/Cat5/Cat5e
Quality of Service (QoS) supportYes

Dimensions & weight

Width209 mm
Depth126 mm
Height26 mm

Questions & answers

Does it provide PoE power?

No, the TL-SG2008 does not support PoE. A similar model with four PoE+ ports is the TL-SG2008P.

What is the difference between managed and unmanaged switches?

An unmanaged switch simply forwards traffic. The managed TL-SG2008 lets you split the network into VLANs, restrict access with ACLs, give calls priority and monitor the unit over SNMP.

How much power does it use?

Maximum consumption is 6.42 W. According to the manufacturer, its energy-saving technology cuts power use by up to 65%.
