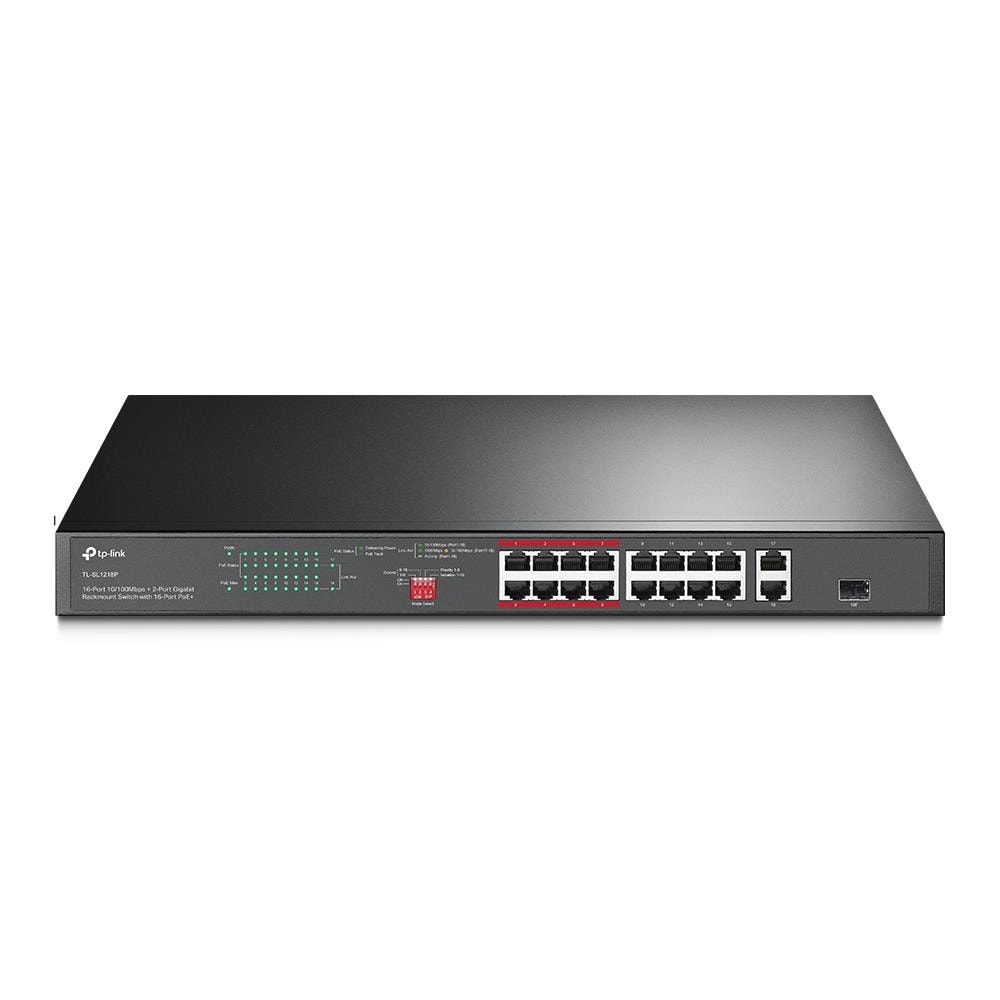

TP-Link TL-SL1218P network switch 16 × 100M PoE+, 2 × 1G, SFP, 150 W

Name: TP-Link TL-SL1218P network switch 16 × 100M PoE+, 2 × 1G, SFP, 150 W
Brand: TP-LINK
SKU: ELKO-1311791
Price: 183.99 EUR
Availability: InStock

The TP-Link TL-SL1218P is an unmanaged 19″ rack-mount network switch built for video surveillance: 16 PoE+ ports power up to 16 IP cameras, while two gigabit ports and an SFP slot carry the footage to the recorder. The total PoE budget is 150 W.

Ports: 16 × RJ-45 10/100 Mbit/s PoE+, 2 × RJ-45 1G, 1 × combo SFP 1G
PoE: 150 W total, up to 30 W per port, IEEE 802.3af/at
Modes: Extend up to 250 m, Priority for ports 1–8, Isolation for ports 1–16
Management: unmanaged, 7.2 Gbit/s switching capacity, 8000-entry MAC table
Installation: 19″ rack 1U, metal housing, 2 fans, 440 × 180 × 44 mm
Power: 100–240 V, operating temperature 0–50 °C

Description

Modes that keep the key cameras running

In Priority mode ports 1–8 get higher priority, so footage from cameras in critical areas stays smooth under load. Extend mode stretches data and power transmission up to 250 metres, and Isolation separates traffic on ports 1–16. If consumption goes above 150 W, power management cuts the lower-priority ports.

Who this network switch is for

Installers building a surveillance system with up to 16 IP cameras for a warehouse, car park or retail space and putting it in a server cabinet next to the video recorder. The cameras take the 100 Mbit/s ports, leaving the gigabit ports and SFP for the recorder and the rest of the network.

Specifications

General

Brand	TP-LINK
Form factor	1U
Product colour	Black
Housing material	Metal
Jumbo frames	10000
Rack mounting	Yes
Number of fans	2
Forwarding rate	5.36
Auto-negotiation	Yes
MAC address table	8000
Quick start guide	Yes
Packet buffer memory	4.1
Traffic classification	Yes
Operating relative humidity (H-H)	10 - 90
EAN	6935364052829

Storage

Switching capacity	7.2
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90

Ports

Power over Ethernet (PoE)	Yes
Combo SFP ports quantity	1
Fast Ethernet (copper) ports quantity	16
Total Power over Ethernet (PoE) budget	150
Gigabit Ethernet (copper) ports quantity	2
Power over Ethernet (PoE) power per port	30
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	18
Power over Ethernet plus (PoE+) ports quantity	16

Connectivity

Networking standards	IEEE 802.3af/IEEE 802.3at/IEEE 802.3x

Keyboard & controls

Switch type	Unmanaged

Battery & power

Power consumption (max)	172.8 W
AC input voltage	100 – 240 V
AC input frequency	50 – 60 Hz
Power source	AC
Power supply included	Yes

Performance & capacities

Operating temperature (T-T)	0 – 50 °C
Heat dissipation	589.25

Features

Cables included	AC
LED indicators	Yes
10G support	No
Auto MDI/MDI-X	Yes
Jumbo frames support	Yes
Cable types supported	Cat3/Cat4/Cat5/Cat5e/Cat6

Dimensions & weight

Width	440 mm
Depth	180 mm
Height	44 mm

Questions & answers

How many cameras can it power?

There are 16 PoE+ ports, up to 30 W on one port and 150 W in total. With every port in use that averages about 9.4 W per port, so check your cameras' data sheets for their consumption.

Are 100 Mbit/s ports enough for cameras?

The video stream of a single IP camera fits within a 100 Mbit/s port. Traffic from all cameras is gathered on the two gigabit ports or the SFP slot, where the recorder and router connect.

Can I set up VLANs on it?

No, it is an unmanaged switch. To keep camera traffic separate it offers Isolation mode, which needs no configuration.
