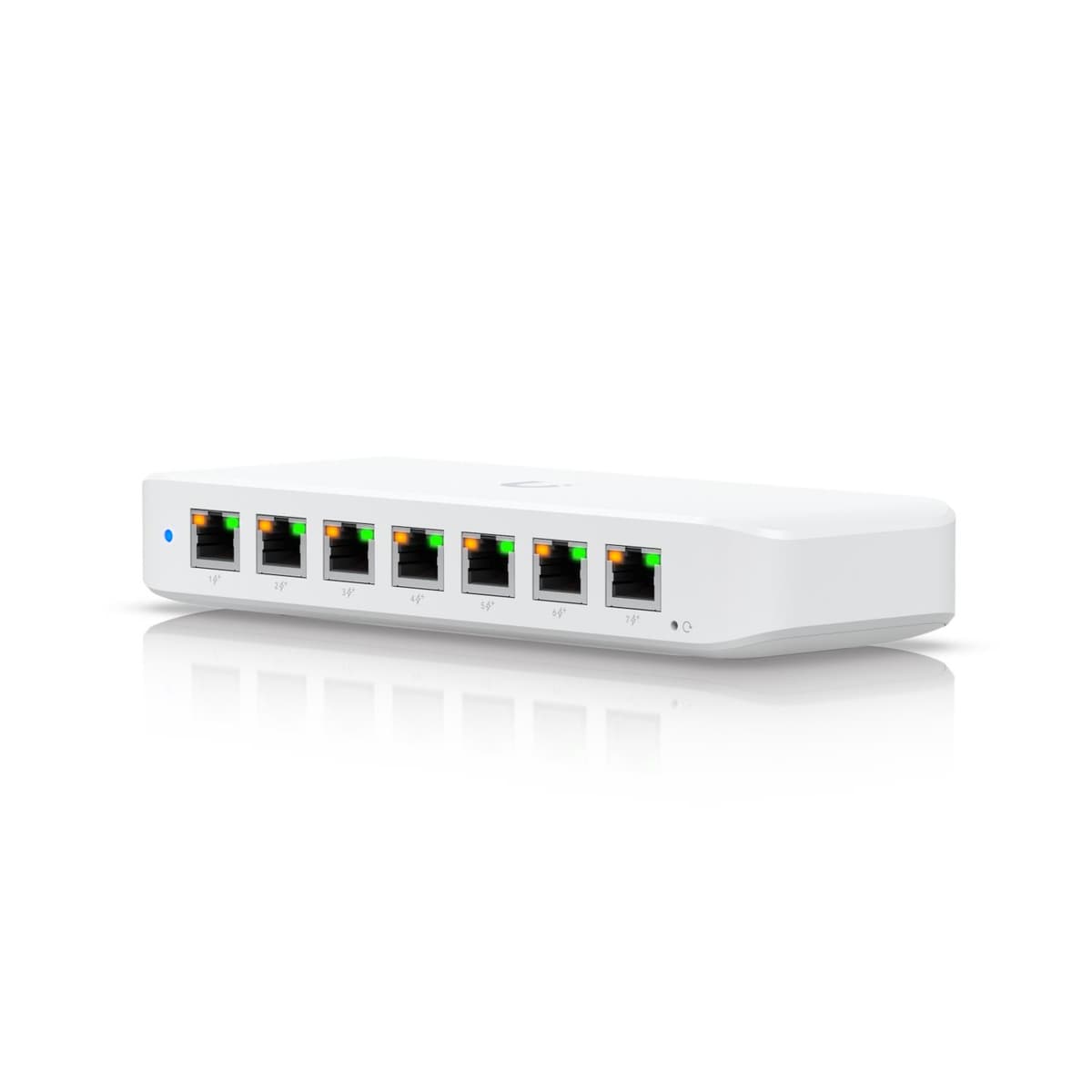

Ubiquiti USW-Ultra-210W network switch 8 × 1G, 7 × PoE+, 202 W, with PSU
UBIQUITI

Ubiquiti USW-Ultra-210W network switch 8 × 1G, 7 × PoE+, 202 W, with PSU

The Ubiquiti Ultra 210W (USW-Ultra-210W) is a compact managed L2 network switch with eight gigabit ports. Seven ports supply PoE+ with up to 202 W in total, and the power supply is included, so cameras and access points draw power straight from the switch.

  • Ports: 8 × RJ-45 10/100/1000 Mbit/s: 7 × PoE+ output, 1 × port with optional PoE++ input
  • PoE: 202 W total budget across seven ports
  • Management: managed L2; port mirroring, broadcast storm control, multicast, flow control, jumbo frames
  • Power: power supply included, 44–57 V DC input or PoE++
  • Housing: white polycarbonate, 203 × 76 × 33 mm, 320 g, wall mountable, operating range –20 to 60 °C

Description

A big PoE budget in a small box

The 202 W is shared across seven PoE+ ports, so several cameras, access points and IP phones can run at once without separate adapters. It all fits in a housing 203 mm wide and weighing 320 g that sits on a desk or mounts on a wall, for example in a cabinet or under the ceiling.

Who this network switch is for

A house, small office or retail outlet where several PoE devices need power from one place and a managed switch is wanted. With the power supply in the box, the switch does not depend on an upstream PoE switch.

Specifications

General

BrandUBIQUITI
Model nameUltra 210W
Product colourWhite
Housing materialPolycarbonate (PC)
ManualYes
SeriesUltra
Throughput8
Rack mountingNo
Wall mountableYes
Broadcast storm controlYes
Operating relative humidity (H-H)10 - 90
EAN810084693735

Storage

Switching capacity16

Ports

Power over Ethernet (PoE)Yes
Port mirroringYes
Power connectorDC-in jack
Total Power over Ethernet (PoE) budget202
Power over Ethernet (PoE) ports quantity7
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity8
Power over Ethernet 4PPoE (PoE++) ports quantity1

Keyboard & controls

Switch typeManaged
Reset buttonYes
Switch layerL2

Battery & power

Power consumption (max)9 W
Power sourceDC/PoE
Input current3.9
DC input voltage44 - 57
Power supply includedYes
Number of power supply units1

Performance & capacities

Operating temperature (T-T)0 – 20 – 60 °C

Features

LED indicatorsActivity/Link/PoE/Status
10G supportNo
Multicast supportYes
Flow control supportYes
Jumbo frames supportYes

Dimensions & weight

Width203 mm
Depth76 mm
Height33 mm
Weight320 g

Questions & answers

How many cameras or access points can it power?

There are seven PoE+ output ports and a 202 W total budget. As long as the combined draw stays below that, all seven run at once.

Is a power supply included?

Yes. The switch can also take power through one port from a PoE++ input.

Can the switch be wall mounted?

Yes, Ubiquiti lists it as wall mountable.
