UBIQUITI

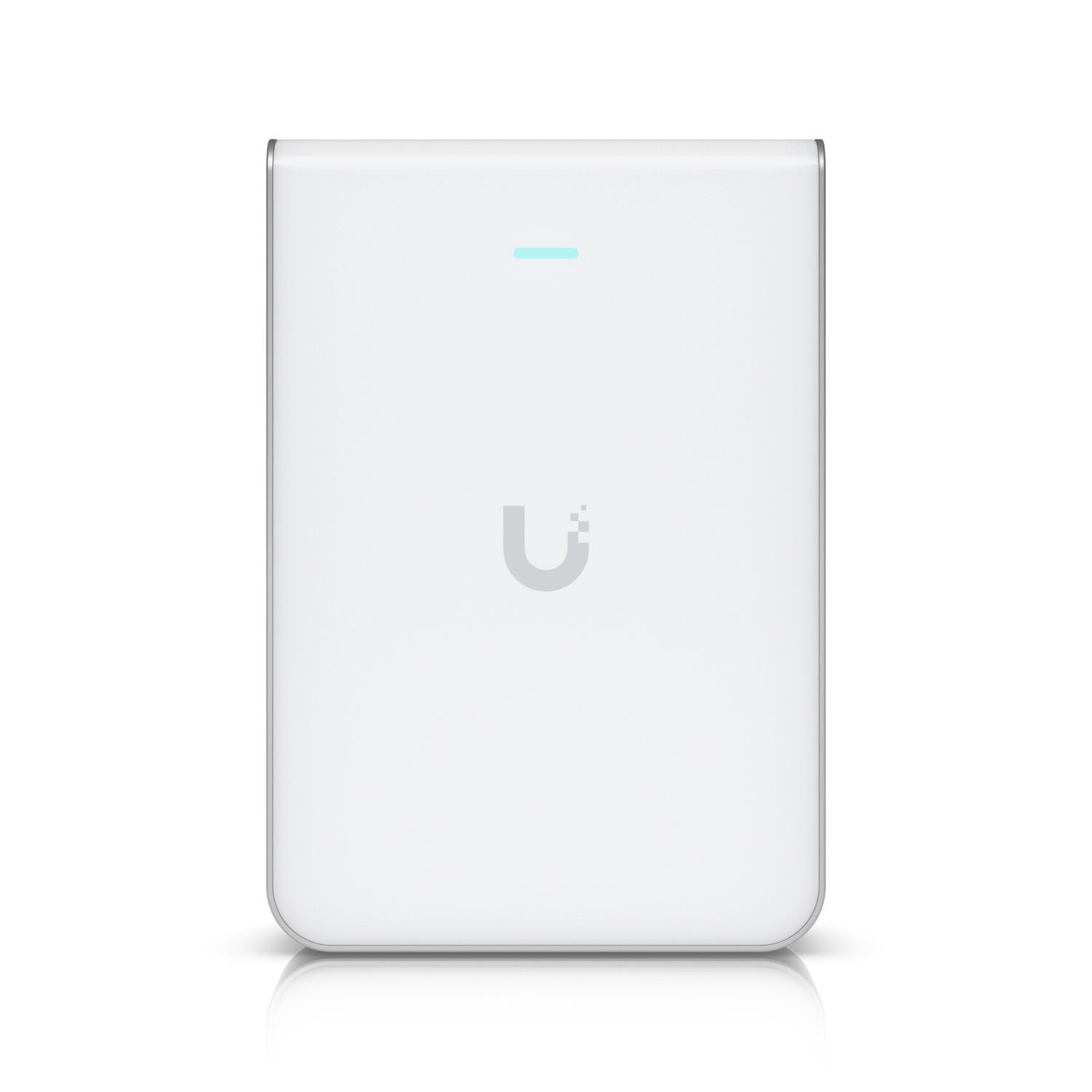

Ubiquiti UniFi U7 Pro Wall WiFi 7 Access Point, PoE, 5700 Mbps

Power consumption (max)22 W
Operating temperature (T-T)0 – 30 – 60 °C
Security algorithmsPPSK/WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK
Width103 mm
Ethernet LAN (RJ-45) ports1

The Ubiquiti UniFi U7 Pro Wall is a wall-mounted WiFi 7 wireless access point delivering up to 5700 Mbps aggregate throughput with 6 GHz band support — built for dense environments where speed and coverage need to coexist without compromise.

Description

High-Capacity Wall Coverage Without the Clutter

WiFi 7 with 6 GHz support — 6 spatial streams for faster, less congested wireless connections
Up to 140 m² coverage supporting 300+ simultaneously connected devices
Powered via PoE+ — no separate power adapter needed, keeping installations clean and simple
2.5 GbE uplink through a single LAN port, matching the high throughput WiFi 7 delivers
Wall-placement design with optional Flush Mount and Table Stand accessories for flexible deployment

A practical fit for home builders, small offices, and hospitality spaces where a discreet, high-performance wireless access point needs to blend into the wall while handling a serious client load.

Specifications

General

Brand	UBIQUITI
Recommended usage	Indoor
Model name	UBIQUITI U7 Pro Wall
Product colour	White
Housing material	Aluminium, Polycarbonate (PC)
5 GHz	Yes
6 GHz	Yes
2.4 GHz	Yes
Placement	Wall
Mounting kit	Yes
Rate limiting	Yes
Spatial streams	6
Sustainability compliance	Yes
Maximum data transfer rate	5700
Operating relative humidity (H-H)	5 - 95
EAN	810084695548

Ports

Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	2500 Mbit/s
Power over Ethernet (PoE)	Yes

Connectivity

Networking standards	IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n/IEEE 802.1Q/IEEE 802.3at
Security algorithms	PPSK/WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK
MIMO	Yes
MIMO type	Multi User MIMO
Antenna type	Internal
Frequency band	2.4 - 6
Throughput data rate	5764
Antenna gain level (max)	6
