BE QUIET

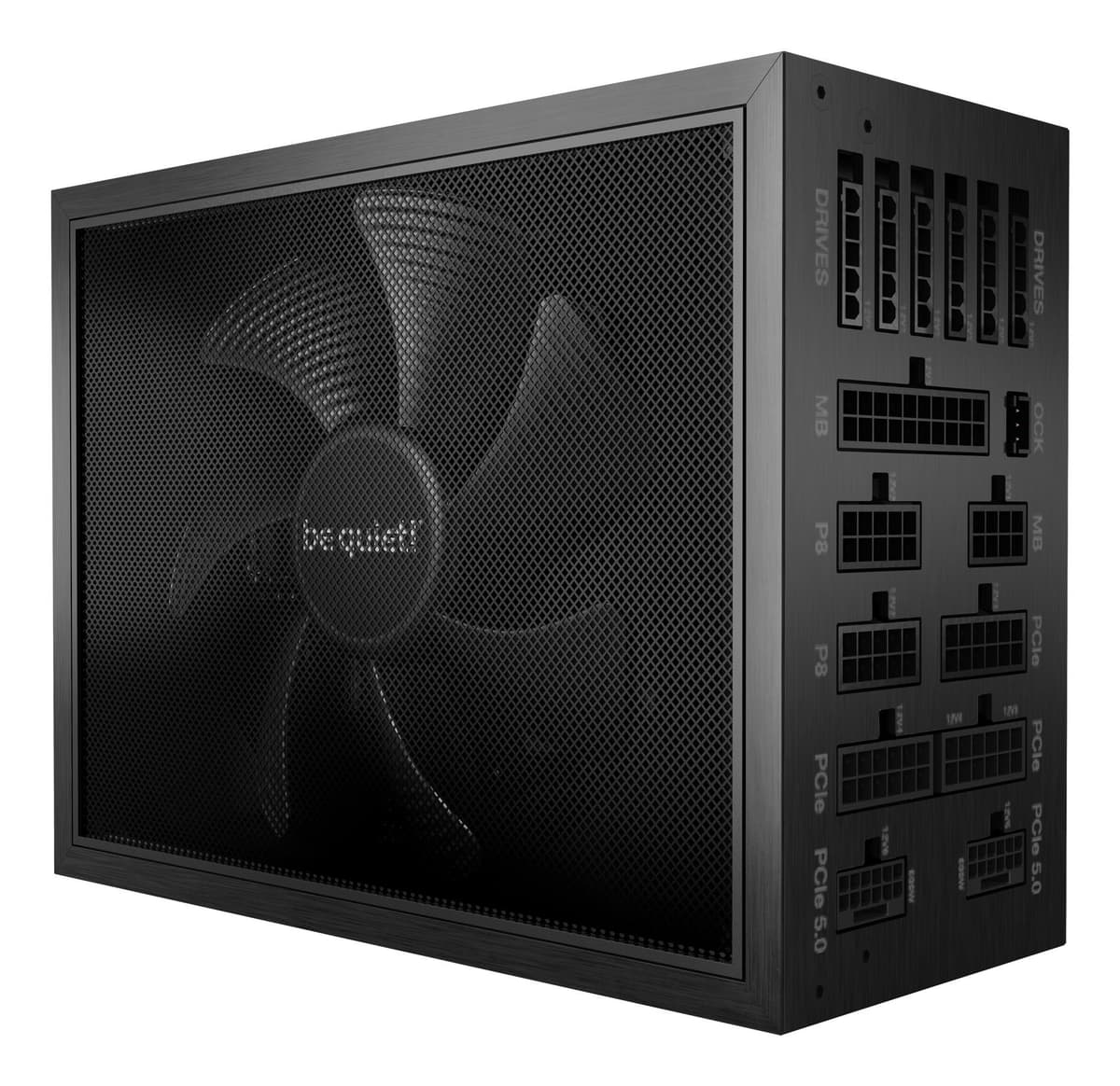

be quiet! Dark Power Pro 13 1600W 80 Plus Titanium ATX Power Supply

CPU power cable length700
AC input voltage115 – 240 V
Noise level31.1 dB
Width150 mm
Motherboard power connector20+4 pin ATX
Cables includedCPU, PCIe, Peripheral (Molex), SATA

The be quiet! Dark Power Pro 13 1600W is a high-wattage ATX desktop computer power supply built for demanding builds that push hardware to its limits. With 80 PLUS Titanium efficiency, it delivers up to 94.5% efficiency, keeping heat and energy waste to a minimum even under sustained heavy loads.

Description

1600W of Headroom with Titanium-Grade Efficiency

1600W continuous output with a 1700W peak — engineered for multi-GPU and extreme overclocking configurations
80 PLUS Titanium certified efficiency rating, among the highest available for ATX power supplies
ATX form factor ensures broad compatibility with standard full-tower and mid-tower cases
135mm frameless Silent Wings fan for near-silent operation at typical load levels
MTBF of 100,000 hours reflects robust long-term reliability under continuous operation

This PSU suits builders assembling high-end workstations, content creation rigs, or enthusiast gaming systems where power headroom, efficiency, and stable delivery across multiple components are non-negotiable requirements.

Specifications

General

Brand	BE QUIET
Model name	Dark Power Pro 13 1600W
Product colour	Black
Purpose	PC
Hold time	18
Efficiency	94.5
ATX version	3.1
EPS version	2.92
Cabling type	Fully-Modular
Fan diameter	135
Number of fans	1
Sustainability compliance	Yes
Shipping (inner) case width	325
Shipping (inner) case height	283
Shipping (inner) case length	440
Shipping (inner) case net weight	14600
Mean time between failures (MTBF)	100000
Products per shipping (inner) case	2
Warranty	10 years
EAN	4260052189375

Processor

CPU power cable length	700

Ports

PCI Express connector	Yes
EPS power connector (8-pin)	Yes
Motherboard power connector	20+4 pin ATX
EPS power connector (4+4 pin)	Yes
ATX power connector (20+4 pin)	Yes
Number of PATA power connectors	5
Number of SATA power connectors	16
PCI Express power connectors (6+2 pin)	6

Battery & power

AC input voltage	115 – 240 V
AC input frequency	50 – 60 Hz
Peak power	1700
Total power	1600
Power factor	0.99
Input current	15 - 9
Combined power (+5V)	150
80 PLUS certification	80 PLUS Titanium
Combined power (+12V)	1600
Combined power (-12V)	6
Combined power (+3.3V)	150
Combined power (+5Vsb)	17.5
SATA power cable length	1050/500/600/750/800/900/950
Max output current (+5V)	25
Max output current (-12V)	0.5
Power protection features	Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Max output current (+12V1)	40
Max output current (+12V2)	40
Max output current (+12V3)	45
Max output current (+12V4)	45
Max output current (+3.3V)	25
Max output current (+5Vsb)	3.5
Motherboard power cable length	600
PCI Express power cable length	600
Power supply unit (PSU) form factor	ATX
Peripheral (Molex) power cable length	1050/600/750/900
