D-Link DGS-1010MP network switch 10-port, 8 × PoE+ 30 W, SFP
D-Link

D-Link DGS-1010MP network switch 10-port, 8 × PoE+ 30 W, SFP

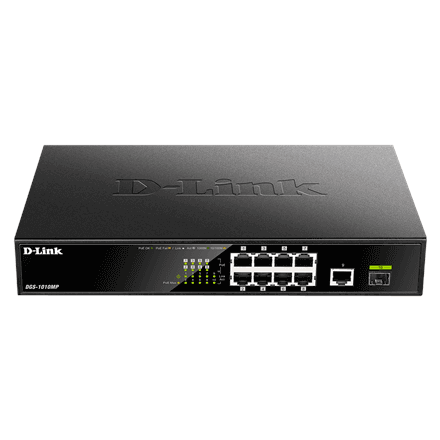

The D-Link DGS-1010MP is a ten-port unmanaged PoE network switch that delivers both data and power to eight devices over a single cable each. It suits a network of security cameras, Wi-Fi access points and IP phones where running a power socket to every device makes little sense.

  • Ports: 8 × RJ-45 PoE, 1 × RJ-45, 1 × SFP; port type 10/100/1000 Mbps
  • PoE: IEEE 802.3at (PoE+), up to 30 W per port
  • Management: unmanaged, L2
  • Mounting: desktop or rack
  • Weight: 2 kg

Description

PoE+ power for eight devices from one place

The eight PoE ports follow 802.3at, also known as PoE+, which allows up to 30 W per port, enough for more demanding cameras and access points. Devices take their power through the network cable, so separate adapters and extension leads are not needed. There is also one regular RJ-45 port and one SFP slot for connecting to a router or another switch, including over fibre.

Who this network switch is for

Small businesses and homes with several security cameras; offices that power ceiling-mounted Wi-Fi access points from a single server cabinet; and installers looking for a simple PoE switch that needs no configuration and fits on a shelf or in a rack.

Specifications

General

BrandD-Link
Form factorDesktop / Rackmount
EAN790069439872

Ports

Gigabit Ethernet (copper) ports quantity1
Power over Ethernet (PoE) ports quantity8
Power over Ethernet (PoE) power per port30 W
Predominant port type10/100/1000 Mbps (RJ-45)
SFP ports quantity1

Connectivity

POE802.3at

Keyboard & controls

Switch layerL2
Switch typeUnmanaged

Dimensions & weight

Net weight2 kg

Questions & answers

How many cameras or access points can it power?

There are eight PoE ports, each delivering up to 30 W. The manufacturer does not specify the total PoE budget shared across all ports, so with power-hungry devices it is worth adding up their consumption.

Can the switch be mounted in a rack?

Yes, the manufacturer lists it as desktop and rackmount, so it can sit on a desk or shelf or go into a server cabinet.

Is this a managed switch?

No, the DGS-1010MP is an unmanaged L2 switch. VLANs and other settings are not configured on it: plug in the cables and devices get network and power right away.
