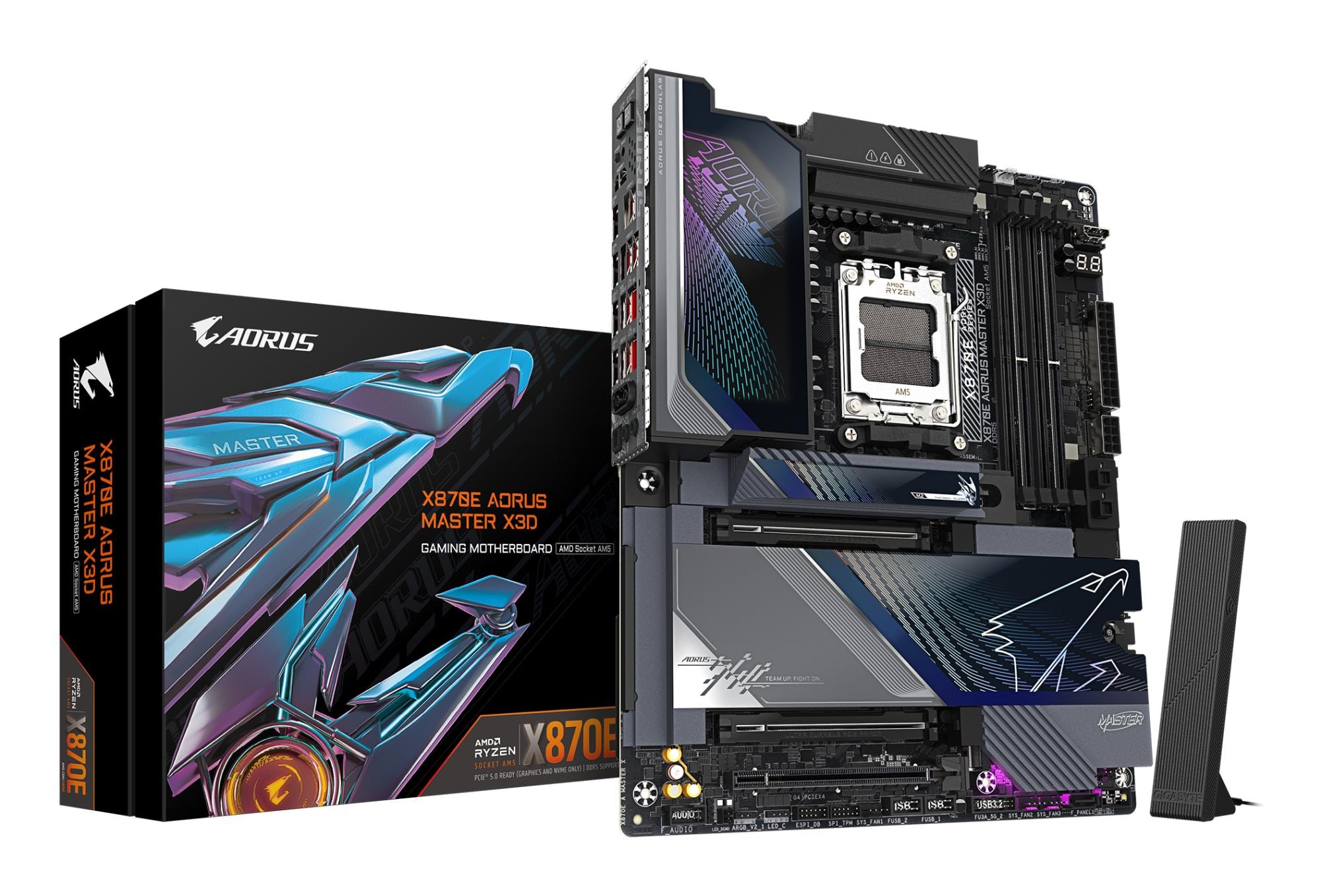

Gigabyte X870E Aorus Master X3D AM5 DDR5 ATX motherboard
GIGABYTE

Gigabyte X870E Aorus Master X3D AM5 DDR5 ATX motherboard

  • Maximum resolution4096 x 2304
  • Processor manufacturerAMD
  • Maximum internal memory256 GB
  • Number of HDDs supported2
  • Battery technologyLithium-Manganese Dioxide (LiMnO2)
  • RAID levels0/1/10/5

The Gigabyte X870E Aorus Master X3D is a high-end ATX motherboard for AMD AM5 processors, built on the AMD X870E chipset and designed to get the most out of Ryzen 9000, 8000, and 7000 series CPUs — including 3D V-Cache models with X3D Turbo Mode 2.0.

Description

Five M.2 slots, Wi-Fi 7, and DDR5 up to 9000 MT/s

  • Socket AM5 with AMD X870E chipset supports the full current Ryzen lineup
  • 4 DDR5 DIMM slots with AMD EXPO support and overclocking headroom up to 9000 MT/s
  • 5 M.2 slots including a PCIe 5.0 x4 slot for next-generation NVMe storage
  • Wi-Fi 7 and Bluetooth built in, with a high-gain directional antenna connector
  • Dual USB4 Type-C, 10GbE + 5GbE LAN, and an 18+2+2 phase VRM for stable power delivery

A strong match for PC builders, overclockers, and content creators who need a flagship AMD platform with fast storage, robust networking, and serious CPU power headroom in a standard ATX form factor.

Specifications

General

BrandGIGABYTE
Product colourBlack
HDCPYes
Line-inYes
BIOS typeUEFI AMI
ACPI version5.0
HDCP version2.3
Component forPC
DirectX version12.0
BIOS memory size512
Clear CMOS jumperYes
Headphone outputs1
Unbuffered memoryYes
ECC сompatibilityNon-ECC
RGB LED pin headerYes
PC health monitoringCPU/Fan/Temperature/Voltage/Water cooling
Number of memory slots4
Motherboard form factorATX
Number of M.2 (M) slots5
1st M.2 largest key size2580
2nd M.2 largest key size2280
3rd M.2 largest key size2280
4th M.2 largest key size2280
5th M.2 largest key size2280
Number of RGB LED pin headers5
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots2
Products per shipping (inner) case1
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation5.0
3rd M.2 highest PCI Express generation4.0
4th M.2 highest PCI Express generation4.0
5th M.2 highest PCI Express generation4.0
System Management BIOS (SMBIOS) version2.7
Desktop Management Interface (DMI) version2.7
Warranty3 years
EAN4719331878894

Display

Maximum resolution4096 x 2304

Processor

Processor manufacturerAMD
Motherboard chipsetAMD X870E
Processor socketSocket AM5
CPU fan connectorYes
Motherboard chipset familyAMD
Compatible processor seriesAMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Number of CPU fan connectors2

Memory

Maximum internal memory256 GB
Memory channelsDual-channel
Memory slots typeDIMM
Maximum internal memory per slot64

Storage

Number of HDDs supported2
Supported storage drive typesHDD & SSD
Number of storage drives supported7
Supported storage drive interfacesM.2, PCI Express 4.0, PCI Express 5.0, SATA III

Audio

Audio chipRealtek ALC1220-VB/ESS 9118
Audio output channels7.1
Digital audio optical out1
Front panel audio connectorYes

Ports

HDMI ports quantity1
HDMI version2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LANYes
Ethernet LAN (RJ-45) ports2
TPM connectorYes
LAN controllerRealtek RTL8126/Realtek RTL8127
S/PDIF out portYes
USB 2.0 connectors2
DisplayPort version1.4
WiFi-AP antenna jack2
Front panel connectorYes
Ethernet interface type10 Gigabit Ethernet/2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
USB 3.2 Gen 2x2 connectors1
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
USB4 Gen 2x2 ports quantity2
ATX Power connector (24-pin)Yes
Number of SATA III connectors2
Number of water pump connectors2
Number of chassis fan connectors6
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2x2 Type-C ports quantity1
Number of EPS power connectors (8-pin)2

Connectivity

Wi-FiYes
Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Top Wi-Fi standardWi-Fi 7 (802.11be)
WLAN controller modelMediaTek MT7927
BluetoothYes
Bluetooth version5.4
Antenna includedYes

Software & security

Bundled softwareNorton® Internet Security (OEM version)
Windows operating systems supportedWindows 11 x64

Keyboard & controls

Clear CMOS buttonYes

Battery & power

Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Battery capacity220 Wh
Number of battery cells1
Power source typeATX
Battery weight3
Lithium weight per battery0.07

Performance & capacities

RAID levels0/1/10/5
Cooling typePassive
Supported memory clock speeds4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000
Number of noise detection headers1
Supported memory clock speed (max)9000
Number of temperature sensor headers2

Features

RAID supportYes
Screws includedYes
Batteries includedYes
Supported memory typesDDR5-SDRAM
Parallel processing technology supportNot supported

Dimensions & weight

Width305 mm
Depth244 mm
Height35 mm
Weight3.78 kg
