ASUS

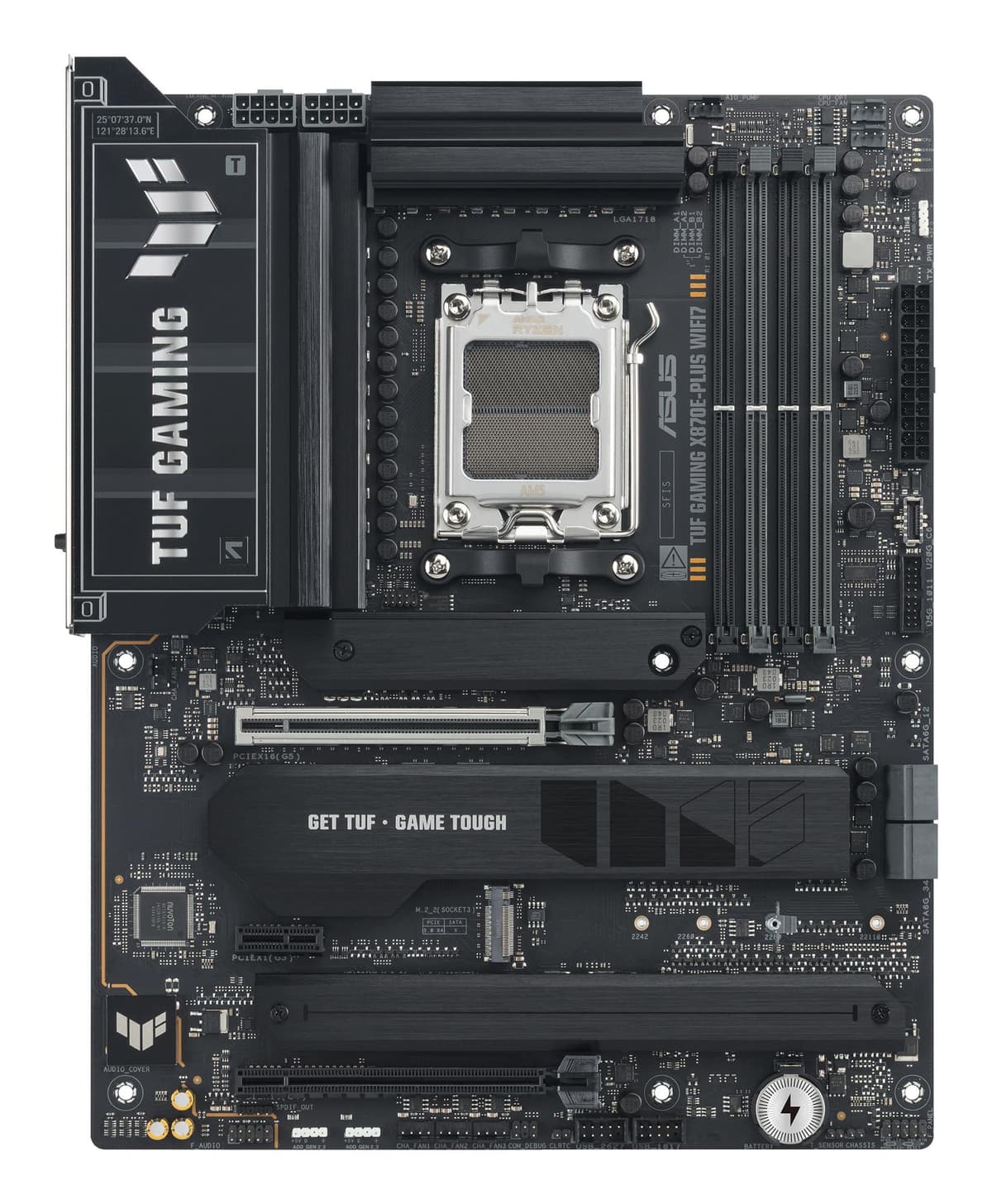

ASUS TUF Gaming X870E-Plus WiFi 7 AMD AM5 ATX Motherboard DDR5

Processor manufacturerAMD
Maximum internal memory256 GB
Number of HDDs supported4
Power source typeATX
RAID levels0/1/10/5
Wi-Fi standardsWi-Fi 7 (802.11be)

The ASUS TUF Gaming X870E-Plus WiFi 7 is an ATX motherboard built on the AMD X870E chipset for Socket AM5 processors, delivering a robust foundation for high-performance desktop builds that demand modern connectivity and DDR5 memory support.

Description

Built for Demanding Workloads and Extended Gaming Sessions

AMD X870E chipset with Socket AM5 — supports the latest AMD Ryzen processors with full platform capabilities
4x DDR5 memory slots — enables high-bandwidth configurations suited to gaming, content creation and AI workloads
4x M.2 slots — ample high-speed storage expansion with PCIe 5.0 and PCIe 4.0 support across slots
Integrated WiFi 7 — next-generation wireless for low-latency online gaming and fast local transfers
Comprehensive I/O — 7x USB 3.2, 2x USB-C, HDMI and a dedicated RJ45 LAN port cover all connectivity needs

This motherboard suits enthusiast PC builders, competitive gamers and content creators who are upgrading to an AM5 platform and want a reliable, feature-rich ATX board without compromising on expansion options or wireless performance.

Specifications

General

Brand	ASUS
Product colour	Grey
Line-in	Yes
BIOS type	UEFI AMI
Component for	PC
BIOS memory size	256
Headphone outputs	1
Unbuffered memory	Yes
ECC сompatibility	ECC & Non-ECC
RGB LED pin header	Yes
Number of memory slots	4
Motherboard form factor	ATX
Number of M.2 (M) slots	4
1st M.2 largest key size	2280
2nd M.2 largest key size	22110
3rd M.2 largest key size	2280
4th M.2 largest key size	2280
Quick installation guide	Yes
Number of RGB LED pin headers	3
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	5.0
3rd M.2 highest PCI Express generation	4.0
4th M.2 highest PCI Express generation	4.0
EAN	4711636100342

Processor

Processor manufacturer	AMD
Motherboard chipset	AMD X870E
Processor socket	Socket AM5
CPU fan connector	Yes
Motherboard chipset family	AMD
Compatible processor series	AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Number of CPU fan connectors	1

Memory

Maximum internal memory	256 GB
Memory channels	Dual-channel
Memory slots type	DIMM

Storage

Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Number of storage drives supported	8
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Graphics

On-board graphics card	No

Audio

Microphone in	Yes
Audio output channels	7.1
Front panel audio connector	Yes

Ports

HDMI ports quantity	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
USB 2.0 connectors	2
12V power connector	Yes
WiFi-AP antenna jack	2
Front panel connector	Yes
Ethernet interface type	2.5 Gigabit Ethernet
EPS power connector (8-pin)	Yes
USB4 Gen 3x2 ports quantity	2
ATX Power connector (24-pin)	Yes
Number of SATA III connectors	4
Number of water pump connectors	1
Number of chassis fan connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of EPS power connectors (8-pin)	2
