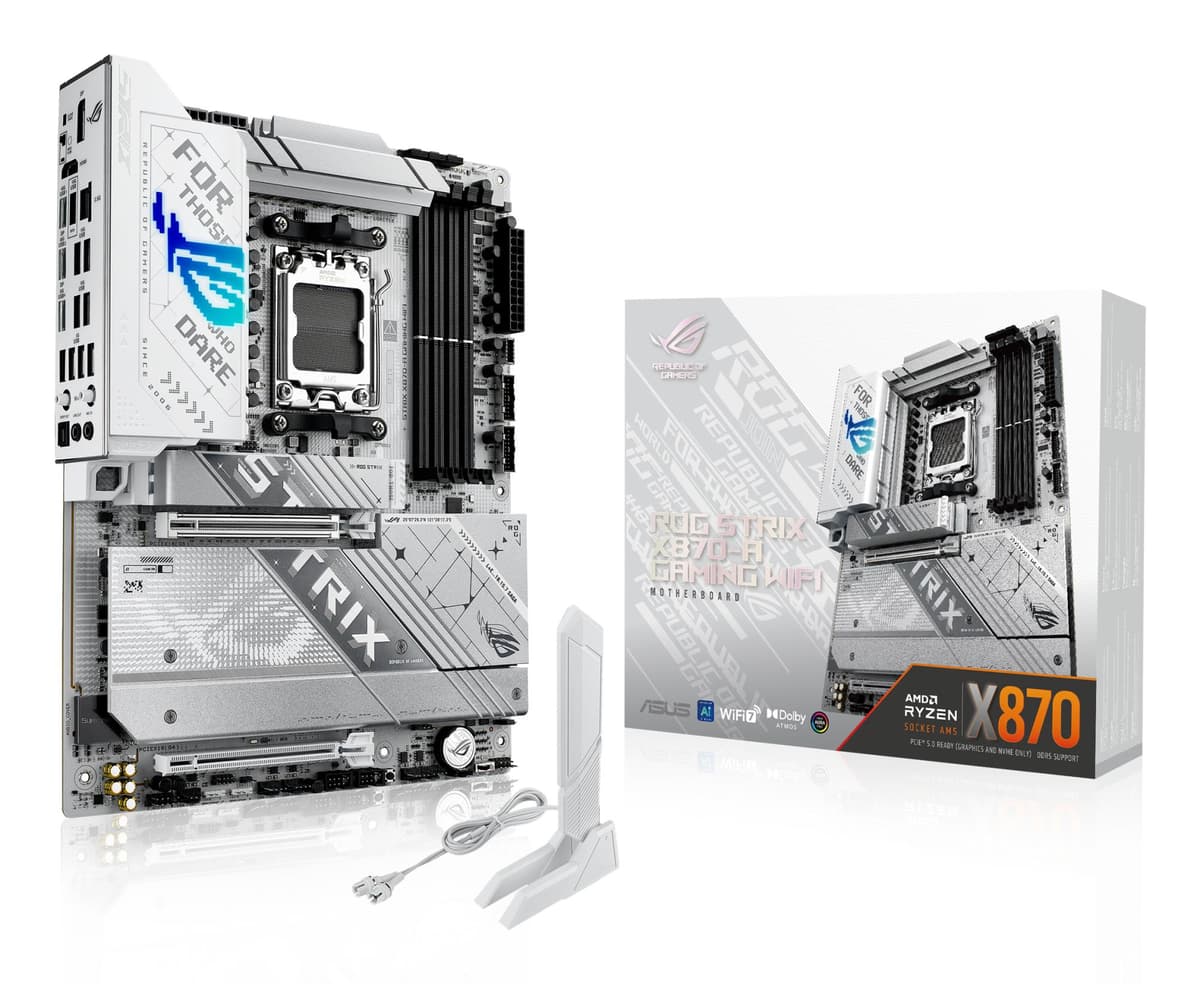

The board has an AMD AM5 socket and the X870 chipset. ASUS AI Overclocking profiles the processor and cooling and suggests a suitable overclock, while Dynamic OC Switcher automatically swaps between a manual overclock and Precision Boost Overdrive based on current and temperature thresholds. Overclocking Load Guard protects the system from sudden current spikes so experiments do not end in a crash.
The rear panel has two USB4 ports for fast external SSDs and USB4 devices. On top of that there are five USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 2 Type-C and four USB 3.2 Gen 1 ports, so there is room for a keyboard, mouse, headset and more. For the front panel there is a USB 3.2 Gen 2x2 header, two USB 3.2 Gen 1 headers and two USB 2.0 headers.
Four DIMM slots take up to 192 GB of dual-channel DDR5 memory, and unbuffered memory is supported with and without ECC. Six drives can be installed in total: four M.2 SSDs and two SATA III devices, with support for RAID 0, 1, 5 and 10. The graphics card gets a PCIe 5.0 x16 slot, alongside two more x16-size slots running PCIe 4.0. At 305 × 244 mm the board follows the ATX standard, so it fits ATX cases.
Wireless connectivity is Wi-Fi 7 (802.11be), joined by Bluetooth 5.4. For wired networking there is a 2.5 Gbps Ethernet port, up to 2.5 times faster than standard gigabit. ASUS AI Networking II optimises network traffic so games and video calls are not held back by large downloads. The HDMI and DisplayPort outputs on the rear panel serve processors with integrated graphics.
ASUS AI Cooling II balances temperatures and noise with a single click, so the PC is neither loud nor hot. There are five headers for case fans. Audio comes from a Realtek ALC4080 with 7.1 channels, and the board offers an optical S/PDIF output, a microphone input and a headphone output. A Clear CMOS button resets the BIOS to defaults, and SATA cables are included.
Gamers and enthusiasts building a powerful AM5 PC who want AI tools to make overclocking easier; creators who rely on fast USB4 external drives and need plenty of USB ports; and anyone who needs Wi-Fi 7, four M.2 SSDs, up to 192 GB of memory and room for several expansion cards.
| Brand | ASUS |
|---|---|
| Product colour | Aluminium |
| BIOS type | UEFI AMI |
| Component for | PC |
| BIOS memory size | 256 |
| Headphone outputs | 1 |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Number of memory slots | 4 |
| Motherboard form factor | ATX |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| EAN | 4711387737859 |
| Processor manufacturer | AMD |
|---|---|
| Motherboard chipset | AMD X870 |
| Processor socket | Socket AM5 |
| CPU fan connector | Yes |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory | 192 GB |
|---|---|
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of HDDs supported | 2 |
|---|---|
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 6 |
| Supported storage drive interfaces | M.2, SATA III |
| On-board graphics card | No |
|---|
| Audio chip | Realtek ALC4080 |
|---|---|
| Microphone in | Yes |
| Audio output channels | 7.1 |
| Front panel audio connector | Yes |
| HDMI ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| USB 2.0 connectors | 2 |
| 12V power connector | Yes |
| WiFi-AP antenna jack | 1 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| USB 3.2 Gen 2x2 connectors | 1 |
| Chassis intrusion connector | Yes |
| USB4 Gen 2x2 ports quantity | 2 |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 2 |
| Number of chassis fan connectors | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Windows operating systems supported | Windows 11 |
|---|
| Clear CMOS button | Yes |
|---|
| RAID levels | 0/1/10/5 |
|---|
| Cables included | SATA |
|---|---|
| RAID support | Yes |
| Supported memory types | DDR5-SDRAM |
| Parallel processing technology support | Not supported |
| Width | 305 mm |
|---|---|
| Depth | 244 mm |
| Height | 50 mm |
| Weight | 1.84 kg |
The board has an AMD AM5 socket, so AMD processors for AM5 fit. ASUS publishes the exact list of supported series on its support page.
Four DDR5 DIMM slots, up to 192 GB in total in dual-channel mode. Unbuffered memory is supported with and without ECC.
Six in total: four M.2 SSDs and two SATA III drives, with support for RAID 0, 1, 5 and 10.
Yes, Wi-Fi 7 (802.11be) and Bluetooth 5.4. Wired networking is 2.5 Gbps Ethernet.
