MikroTik cAP ac Wi-Fi access point 802.11ac, dual-band, 2 × 1G, PoE
MikroTik

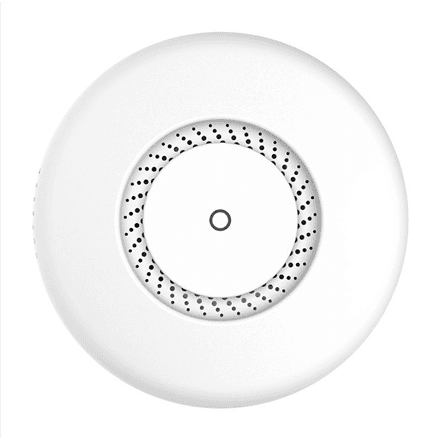

MikroTik cAP ac Wi-Fi access point 802.11ac, dual-band, 2 × 1G, PoE

The MikroTik cAP ac (RBcAPGi-5acD2nD) is a dual-band Wi-Fi access point that works on 2.4 and 5 GHz and supports the 802.11b/g/n/ac standards. Two Gigabit ports, PoE in and out and a RouterOS L4 licence make it a flexible device for home and office networks.

  • Wi-Fi: 802.11b/g/n/ac, MU-MIMO support
  • Bands: 2.4 GHz and 5 GHz
  • Ports: 2 × RJ-45, 10/100/1000 Mbit/s, PoE in and PoE out
  • Antennas: internal, up to 2.5 dBi gain
  • Management: RouterOS L4, web interface, quad-core IPQ-4015 (716 MHz), 128 MB memory
  • Power: 12–56 V, power adapter and mounting kit included

Description

PoE and two ports make installation simpler

The cAP ac takes power over the network cable, so you do not need a separate socket where it is mounted. The second Gigabit port offers PoE out: it can power the next device and carry the wired network further. Without a PoE switch, the included power adapter does the job. The manufacturer gives dimensions for two case shapes: round Ø 136 × 30 mm and square 145 × 145 × 30 mm, in white.

Who this access point is for

Homes and small offices that already have a router and need to add dual-band Wi-Fi; MikroTik users who want to manage the access point in the same RouterOS as the rest of their gear; and installers who save cable and time thanks to PoE power and the pass-through PoE output.

Specifications

General

BrandMikroTik
Colour of productWhite
2.4 GHzYes
InternalYes
Mounting kitYes
Web-based managementYes
EAN4752224003416

Processor

Built-in processorIPQ-4015, Quad Core 716MHz

Memory

Internal memory128 MB

Camera

Flash memory16 MB

Ports

Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10/100/1000 Mbit/s
Power over Ethernet (PoE)Yes

Connectivity

Wi-FiYes
Wi-Fi standards802.11b/g/n/ac
Antenna gain level (max)2.5 dBi
Antenna typeInternal
Frequency band2.4-5
Integrated antennaYes
MU-MiMOYes
POEPoE in/out
Wi-Fi band802.11ac

Software & security

Software typeRouterOS L4

Battery & power

AC adapter includedYes
Input voltage12 - 56 V

Features

LED indicatorsYes

Dimensions & weight

Net weight0.50 kg
Dimensions (WxDxH)Round case: Ø136mm x 30mm, Square case: 145x145x30mm mm

Questions & answers

Can the access point be powered over the network cable?

Yes. The cAP ac accepts PoE input with a 12–56 V range, and the second port passes PoE on to the next device. A regular power adapter is also included.

Does it work on 5 GHz?

Yes, it works on both 2.4 GHz and 5 GHz. Newer clients connect with 802.11ac on 5 GHz, older ones use 802.11b/g/n.

How large an area does it cover?

The manufacturer does not specify a range. It depends on walls, mounting position and interference; the internal antennas have up to 2.5 dBi gain.
