SYNOLOGY

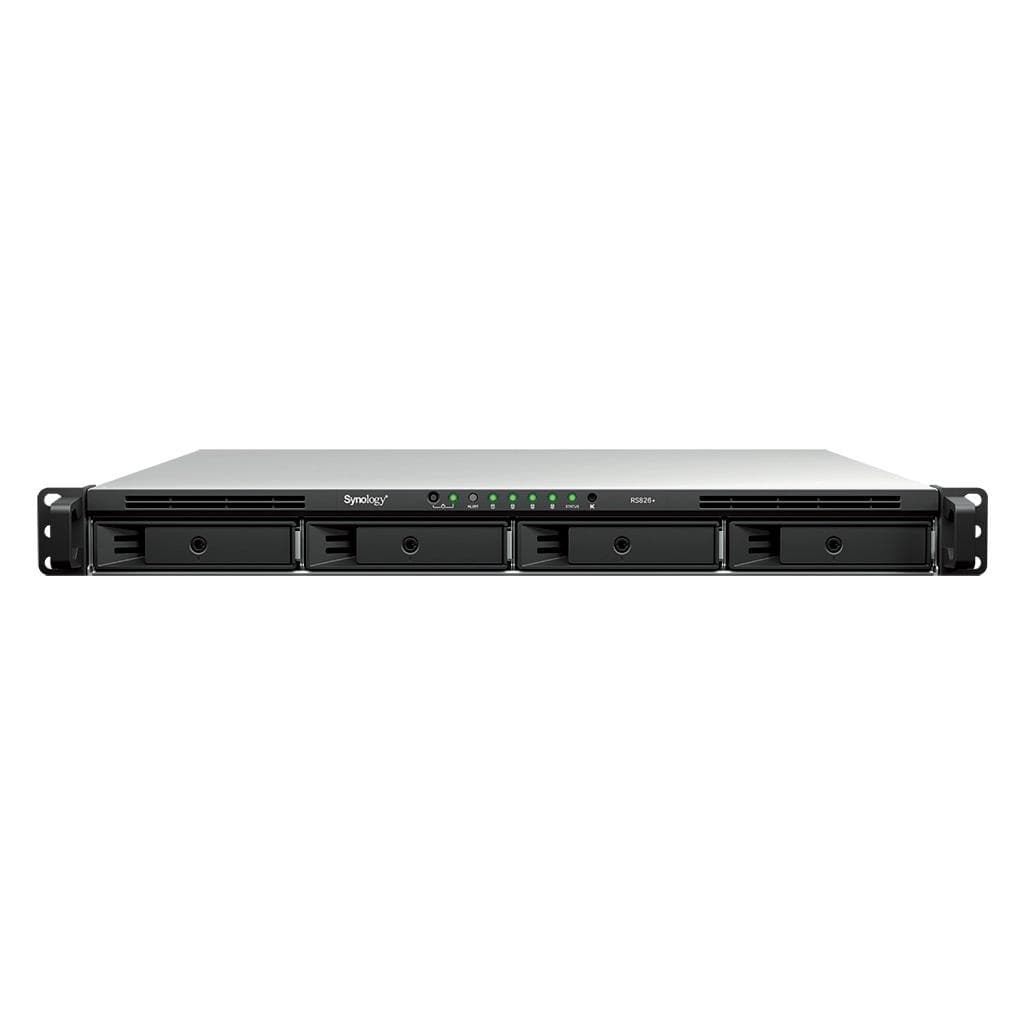

Synology RS826+ 4-Bay NAS Storage 1U Rackmount

Processor manufacturerAMD
Internal memory4 GB
Storage drive capacity0
Power consumption (typical)37.73 W
Noise level26.5 dB
Security algorithmsHTTPS/SNMP/SSH/SSL/TLS

The Synology RS826+ is a 1U rackmount NAS storage solution designed for businesses that need reliable data management in a compact server cabinet footprint. This four-bay NAS delivers centralised storage with built-in redundancy and straightforward administration, making it ideal for small to medium environments that require always-on file storage and backup capabilities.

Description

Built for Business-Grade Performance

AMD Ryzen processor for consistent multi-user performance and reliable file serving
4 GB of RAM ensures smooth operation across concurrent backup and access tasks
Four Gigabit Ethernet ports enable load balancing and failover protection for mission-critical uptime
1U rackmount chassis fits standard 19-inch server racks for space-efficient deployment
Tool-free hot-swap drive bays allow maintenance without disrupting service

The RS826+ suits organisations running small office networks, branch offices, or departmental servers where both performance and space constraints matter. Common scenarios include centralised file storage, Time Machine backups for Mac clients, and virtual machine datastores for smaller Hypervisor installations.

Specifications

General

Brand	SYNOLOGY
Model name	RS826+
Product colour	Black/Grey
Remotely operated	Yes
ECC	Yes
Type	NAS
Snapshot	Yes
Hot spare	Yes
Chassis type	Rack (1U)
Device class	Small & Medium Business
Fan diameter	40
Share folder	512
Fan diameter 2	40
Number of fans	3
Backup function	Yes
Web-based management	Yes
Online RAID migration	Yes
Built-in iTunes server	Yes
Access Control List (ACL)	Yes
PCI Express x8 (Gen 3.x) slots	1
Operating relative humidity (H-H)	8 - 80
EAN	4711174726912

Processor

Processor manufacturer	AMD
Processor family	AMD Ryzen
Processor model	V1500B
Processor cores	4
Processor threads	8
Processor frequency	2.2 GHz

Memory

Internal memory	4 GB
Internal memory type	DDR4
Memory slots	2
Memory form factor	SO-DIMM

Storage

Hot-swap drive bays	Yes
Storage drive capacity	0
Storage drives installed	No
Storage temperature (T-T)	-20 - 60
Installed storage drive type	No
Storage drive sizes supported	2.5/3.5
Supported storage drive types	HDD & SSD
Storage relative humidity (H-H)	5 - 95
Total installed storage capacity	0
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA III

Ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB port	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	4
Ethernet LAN data rates	1000 Mbit/s

Connectivity

Security algorithms	HTTPS/SNMP/SSH/SSL/TLS
Supported network protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Software & security

Operating system installed	DiskStation Manager
Mac operating systems supported	Yes
Windows operating systems supported	Yes

Keyboard & controls

On/off switch	Yes
Reset button	Yes

Battery & power

Power consumption (typical)	37.73 W
AC input voltage	100 – 240 V
AC input frequency	50 – 60 Hz
Power supply location	Built-in
Number of power supply units	1
Power consumption (HDD standby)	15.57
Power supply unit (PSU) capacity	150

Performance & capacities

Noise level	26.5 dB
Operating temperature (T-T)	0 – 35 °C
RAID levels	0/1/10/5/6/JBOD
Cooling type	Active

Features

Cables included	AC
LED indicators	Alarm/Power/Status
RAID support	Yes
iSCSI support	Yes
Browser supported	Chrome, Firefox, Edge, Internet Explorer 10 onwards, Safari 10 onwards, Safari (iOS 10 onwards), Chrome (Android 6.0 onwards)
Third-party support	Yes
Multilingual support	Yes
Maximum RAM supported	32
