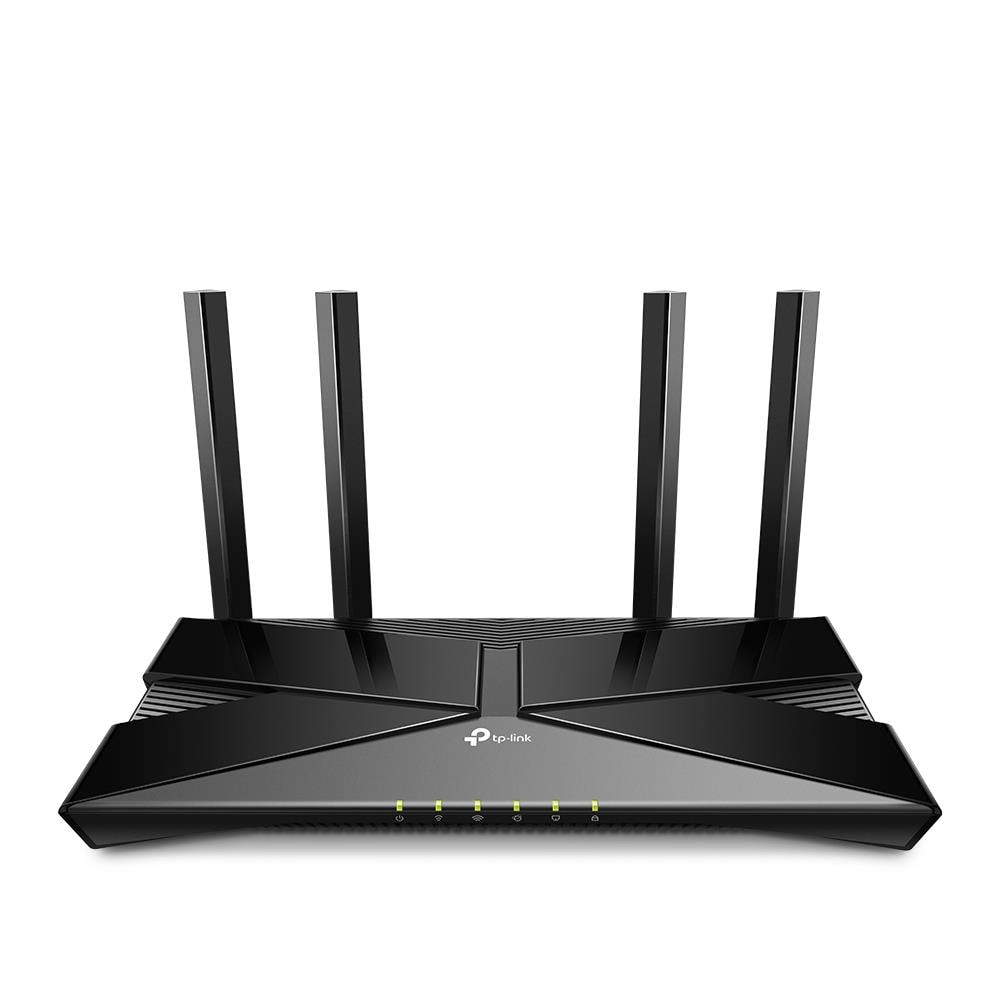

TP-LINK Archer AX53 Wi-Fi 6 Wireless Router

Processor cores2
Storage temperature (T-T)-40 - 70
Output voltage12 V
Operating temperature (T-T)0 – 40 °C
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Width260.2 mm

Experience next-generation wireless connectivity with the TP-LINK Archer AX53, a dual-band Wi-Fi 6 router built for modern homes and offices. Delivering speeds up to 2402 Mbps, this router combines the latest 802.11ax technology with reliable performance across both 2.4GHz and 5GHz bands, ensuring seamless streaming, gaming, and video conferencing without lag or interference.

Description

Built for flexibility and stability, the Archer AX53 features four Gigabit Ethernet LAN ports plus a dedicated RJ-45 WAN port for wired connections where you need maximum reliability. Whether you're connecting smart home devices, gaming consoles, or work equipment, this router delivers the speed and coverage your household demands. The sleek black design fits naturally into any interior.

Perfect for households with multiple connected devices, the Archer AX53 handles bandwidth-heavy tasks with ease while maintaining a stable connection throughout your space. TP-LINK's proven build quality and straightforward setup make this an excellent choice for anyone upgrading to Wi-Fi 6 technology.

Specifications

General

Brand	TP-LINK
Product type	Tabletop router
Model name	Archer AX53
Product colour	Black
DSL WAN	No
Firewall	Yes
VPN server	OpenVPN, PPTP VPN
DHCP client	Yes
DHCP server	Yes
Parental control	Yes
Dynamic DNS (DDNS)	Yes
WAN connection type	RJ-45
Firmware upgradeable	Yes
DoS attack prevention	Yes
Works with Amazon Alexa	Yes
Quick installation guide	Yes
Sustainability compliance	Yes
Universal Plug and Play (UPnP)	Yes
Operating relative humidity (H-H)	10 - 90
EAN	4897098683088

Processor

Processor cores	2
Built-in processor	Yes

Storage

Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90

Ports

USB port	No
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	4
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet WAN	Yes
SIM card slot	No
Port forwarding	Yes
Port triggering	Yes
3G/4G USB modem compatibility	No

Connectivity

Wi-Fi standards	802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2402 Mbit/s
Antenna design	External
Security algorithms	WPA/WPA2/WPA2-Enterprise/WPA3/WPA-Enterprise
Antennas quantity	4
Intelligent Mesh technology	Yes
Supported network protocols	IPv4, IPv6
Number of guest networks (5 GHz)	1
Network address translation (NAT)	Yes
Number of guest networks (2.4 GHz)	1
WLAN data transfer rate (first band)	574
WLAN data transfer rate (second band)	2402

Keyboard & controls

On/off switch	Yes
Reset button	Yes
WPS push button	Yes

Battery & power

AC adapter included	Yes
Output voltage	12 V
Power source type	DC
Output current	2
External power adapter	Yes

Performance & capacities

Operating temperature (T-T)	0 – 40 °C
Filtering	Yes

Features

Cables included	LAN (RJ-45)
DMZ support	Yes
Browser supported	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+
Cabling technology	10/100/1000Base-T(X)
Quality of Service (QoS) support	Yes
