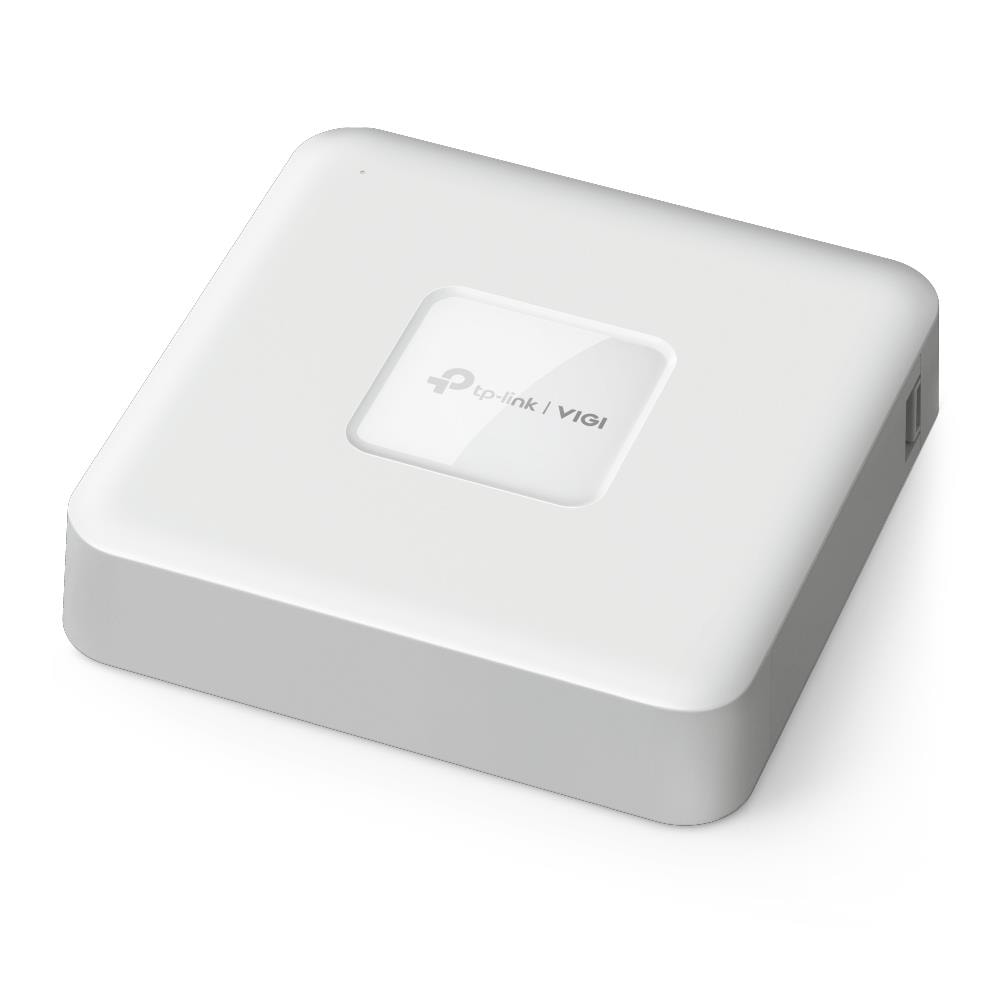

TP-Link VIGI NVR1104H-4P NVR recorder, 4 channels, 4 × PoE+, 4K HDMI
TP-LINK

TP-Link VIGI NVR1104H-4P NVR recorder, 4 channels, 4 × PoE+, 4K HDMI

The TP-Link VIGI NVR1104H-4P is a four-channel NVR recorder with four PoE+ ports, so each camera gets power and data over a single RJ45 cable. It decodes up to 16 MP in total, accepts cameras of up to 8 MP each and sends a 4K picture to a monitor over HDMI.

  • Channels: 4 IP cameras, simultaneous playback of up to 4 channels
  • Cameras and decoding: up to 8 MP per camera, 16 MP in total, H.265+, ONVIF
  • Hard drive: SATA, up to 10 TB of recordings, drive not included
  • PoE: 4 × PoE+ ports for cameras
  • Ports: HDMI output (4K), 1 × RJ45 network port, 2 × USB 2.0
  • Power and housing: 53.5 V DC / 1.31 A adapter, 200.3 × 200.3 × 43 mm, 1.2 kg, white

Description

PoE+ and H.265+: fewer cables, more recording time

The PoE+ ports power each camera through the same cable that carries its video, so there is no need for a socket or a separate adapter next to the camera. New VIGI cameras are added automatically through Plug & Play. H.265+ compression shrinks the video stream, which means more footage fits on the drive and the network carries less load. Recording can run around the clock.

Who this NVR recorder is for

A house, office, warehouse or small business with up to four cameras that wants to keep its recordings on site. A built-in speaker plays audio without extra devices. The recorder can be wall-mounted or placed on or under a desk, and it operates from −10 to 55 °C.

Specifications

General

BrandTP-LINK
SATAYes
ColourWhite
Desktop/pedestalYes
Number of Channels4
EAN4897098688786

Ports

RJ451
USB 2.02

Battery & power

Power consumption4.82
Power supply requirements53.5V DC/1.31A

Performance & capacities

Operating temperature range-10–55 °C

Features

Included AccessoriesPower Adapter, HDD Screws, Mouse, Quick Installation Guide

Dimensions & weight

Product Net Weight1.2 kg
Dimensions200.3 × 200.3 × 43 mm

Questions & answers

Is a hard drive included?

No. The box contains the power adapter, HDD screws, a mouse and a quick installation guide. A SATA drive is added separately through side access, and the recorder supports up to 10 TB.

Does it work with cameras from other brands?

Yes, ONVIF support lets you add IP cameras from VIGI and other manufacturers, at up to 8 MP per camera.

How do I watch the cameras remotely?

Remote viewing works through the VIGI app, the web interface and the VIGI Security Manager software. On site, a monitor connects to the HDMI output, which supports a 4K picture.
