DAHUA

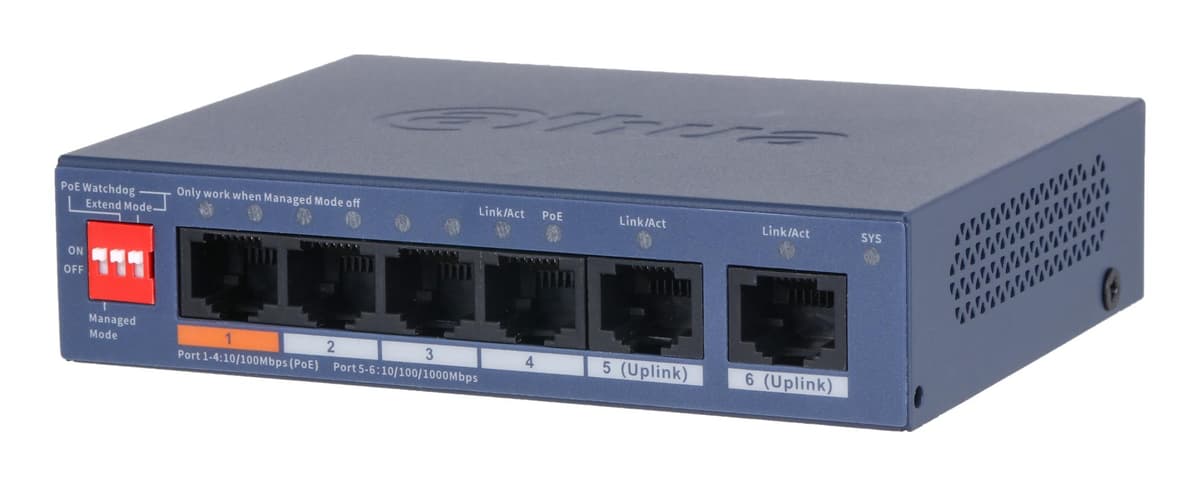

Dahua DH-CS4006-4ET2GT-60 6-Port Managed PoE Network Switch

Switching capacity4.8
Power sourceDC/PoE
Operating temperature (T-T)0 – 10 – 55 °C
Switch typeManaged
Width84 mm
Ethernet LAN data rates10,100,1000

The Dahua CS4006-4ET2GT-60 is a managed network switch combining four Fast Ethernet PoE ports with two Gigabit uplinks, giving small installations a compact and capable layer 2 switching solution with a 60 W total PoE budget.

Description

Cloud-Managed Control with Built-In PoE Watchdog

4 × PoE ports (802.3af/at) power cameras, access points and VoIP phones without separate adapters — total budget of 60 W across all ports
2 × Gigabit RJ45 uplinks keep backbone throughput fast while PoE devices connect at 10/100 Mbps
Web management and DoLynk cloud app allow real-time network monitoring and centralised control from anywhere
VLAN support and loop protection improve network segmentation and resilience in multi-device setups
PoE Watchdog and Long Distance PoE automatically restart unresponsive devices and extend cable reach beyond standard limits

Well suited for small business offices, IP surveillance installations, retail environments and home networks that need reliable managed switching with power delivery over a single cable.

Specifications

General

Brand	DAHUA
Model name	CS4006-4ET2GT-60
Product colour	Blue
Housing material	Metal
Jumbo frames	9216
Cloud-managed	Yes
Rack mounting	No
Wall mountable	Yes
Forwarding rate	3.57
Number of VLANs	32
MAC address table	2000
Quick start guide	Yes
Packet buffer memory	4
Web-based management	Yes
Broadcast storm control	Yes
Mean time between failures (MTBF)	2037751.2
Operating relative humidity (H-H)	10 - 90
EAN	6939554921773

Storage

Switching capacity	4.8
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 95

Ports

Ethernet LAN data rates	10,100,1000
Power over Ethernet (PoE)	Yes
Port mirroring	Yes
Power connector	DC-in jack
IP-MAC-Port binding	Yes
Fast Ethernet (copper) ports quantity	4
Total Power over Ethernet (PoE) budget	60
Gigabit Ethernet (copper) ports quantity	2
Power over Ethernet (PoE) ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	6

Connectivity

Networking standards	IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x

Keyboard & controls

Switch type	Managed
Reset button	Yes
Switch layer	L2

Battery & power

Power source	DC/PoE
Input current	1.22
DC input voltage	53
Power supply included	Yes

Performance & capacities

Operating temperature (T-T)	0 – 10 – 55 °C

Features

Cables included	AC
LED indicators	Yes
10G support	No
VLAN support	Yes
DHCP features	DHCP client
Loop protection	Yes
Multicast support	Yes
Flow control support	Yes
Jumbo frames support	Yes
