PoE watchdog monitors the ports, and if a camera connection drops the switch restarts that port automatically. The watchdog and extend mode are enabled with a switch on the housing. The red ports also support 802.3bt and Hi-PoE for higher-power devices, and 8-pin powering reduces cable loss.
Installers connecting up to eight IP cameras who want to link a recorder or a distant building over fibre through SFP; homes, offices and small malls; and sites where a camera sits farther away than a standard 100 m network cable reaches.
| Brand | DAHUA |
|---|---|
| Form factor | 10U |

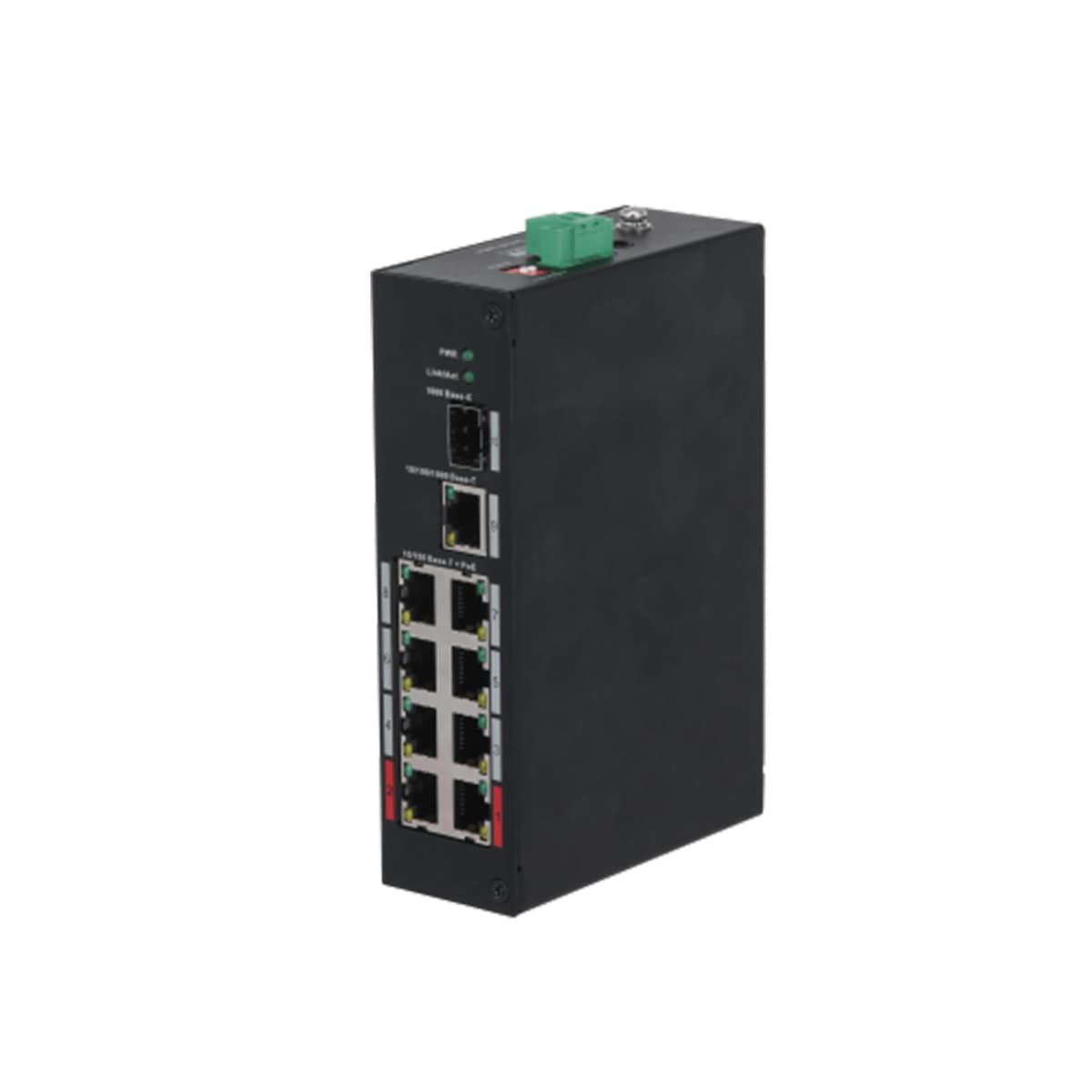

| Model name | PFS3110-8ET-96-V2 |
| Product colour | Black |
| Stackable | No |
| Rack mounting | No |
| Forwarding rate | 4.17 |
| MAC address table | 8000 |
| Packet buffer memory | 1 |
| SFP module slots quantity | 1 |
| EAN | 6923172503862 |
| Switching capacity | 7.6 |
|---|
| Power over Ethernet (PoE) | Yes |
|---|---|
| Total Power over Ethernet (PoE) budget | 96 |
| Power over Ethernet (PoE) power per port | 45 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
|---|
| Switch type | Unmanaged |
|---|
| Input voltage | 53 V |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| 10G support | No |
|---|
| Width | 150 mm |
|---|---|
| Depth | 100 mm |
| Height | 42 mm |
| Weight | 540 g |
Up to 250 m in extend mode. In that mode the port speed drops to 10 Mbit/s, which is worth keeping in mind when setting the camera video stream.
Yes. The switch has one 1000M SFP slot for a suitable SFP module.
No. The manufacturer states rack mounting is not supported; the 150 × 100 × 42 mm housing is meant for a desk or cabinet.
