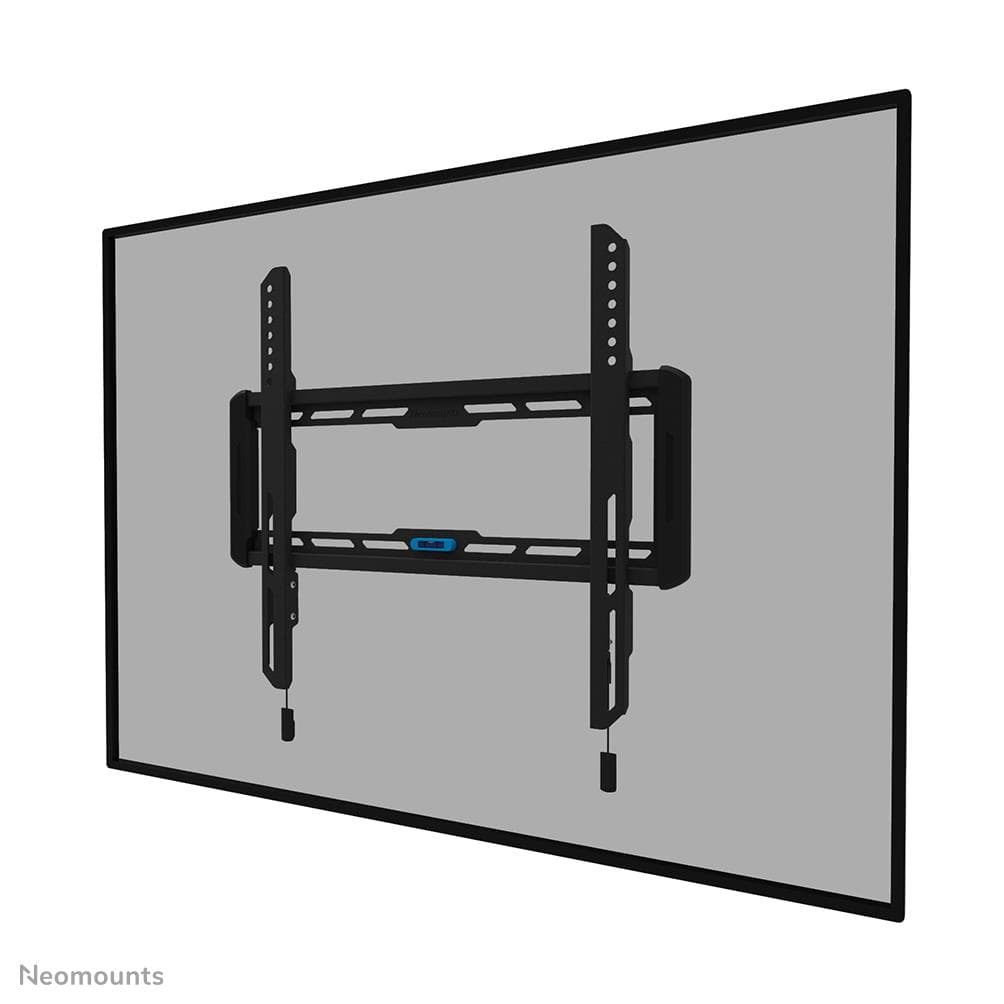

Neomounts WL30-550BL14 TV wall mount 40–75", fixed, 23 mm, up to 50 kg
NEOMOUNTS

Neomounts WL30-550BL14 TV wall mount 40–75", fixed, 23 mm, up to 50 kg

The Neomounts WL30-550BL14 is an ultra-flat fixed TV wall mount for 40–75 inch screens with a load capacity of up to 50 kg. It is only 23 mm deep and fits VESA patterns from 100 × 100 to 400 × 400 mm.

  • Type: fixed wall mount, ultra-flat
  • VESA: 100 × 100 to 400 × 400 mm
  • Maximum load: 50 kg
  • Screen size: 40–75″
  • Wall distance: 23 mm
  • Installation: magnetic pull-and-release straps, built-in spirit level, steel, black

Description

Magnetic straps and a spirit level for easier installation

The TV attaches to the wall plate with a pull-and-release system: pull the strap and the TV comes free. After installation the straps click onto the mount with a magnet and stay hidden behind the screen. The built-in spirit level helps you set the wall plate straight so the TV does not hang crooked.

Who this TV mount is for

The WL30-550BL14 suits owners of a 40–75 inch TV who want it flat on the wall like a picture. The TV must weigh up to 50 kg and use a listed VESA size. It fits a living room where the TV is watched straight on and its position does not need to change.

Specifications

General

BrandNEOMOUNTS
Product colourBlack
Housing materialSteel
TypeFixed
LockableNot lockable
Mounting typeWall
Height adjustmentNo
Maximum VESA mount400 x 400
Minimum VESA mount100 x 100
Products per pallet (EU)280
Master (outer) case width573
Distance to the wall (max)23
Master (outer) case height230
Master (outer) case length280
Master (outer) case net weight12100
Master (outer) case gross weight18200
Products per master (outer) case8
EAN8717371448646

Display

Panel mounting interface100 x 100/100 x 150/100 x 200/120 x 120/150 x 200/200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400
Maximum screen size75
Minimum screen size40
Number of displays supported1
Maximum weight capacity (per display)50

Storage

Maximum weight capacity50

Features

Package net weight2200

Dimensions & weight

Width535 mm
Depth23 mm
Height460 mm
Weight1.55 kg
Depth (max)23

Questions & answers

Which VESA sizes does the mount support?

100 × 100, 100 × 150, 100 × 200, 120 × 120, 150 × 200, 200 × 100, 200 × 150, 200 × 200, 200 × 300, 200 × 400, 300 × 100, 300 × 200, 300 × 300, 350 × 350, 400 × 200, 400 × 300 and 400 × 400 mm. The VESA size is the distance between the screw holes on the back of the TV in millimetres.

How far from the wall will the TV be?

The mount is 23 mm deep, so the back of the TV sits roughly that far from the wall. It cannot be pulled away from the wall.

Can the TV be tilted or locked?

No. The mount is fixed, has no height adjustment and according to the manufacturer it is not lockable.
