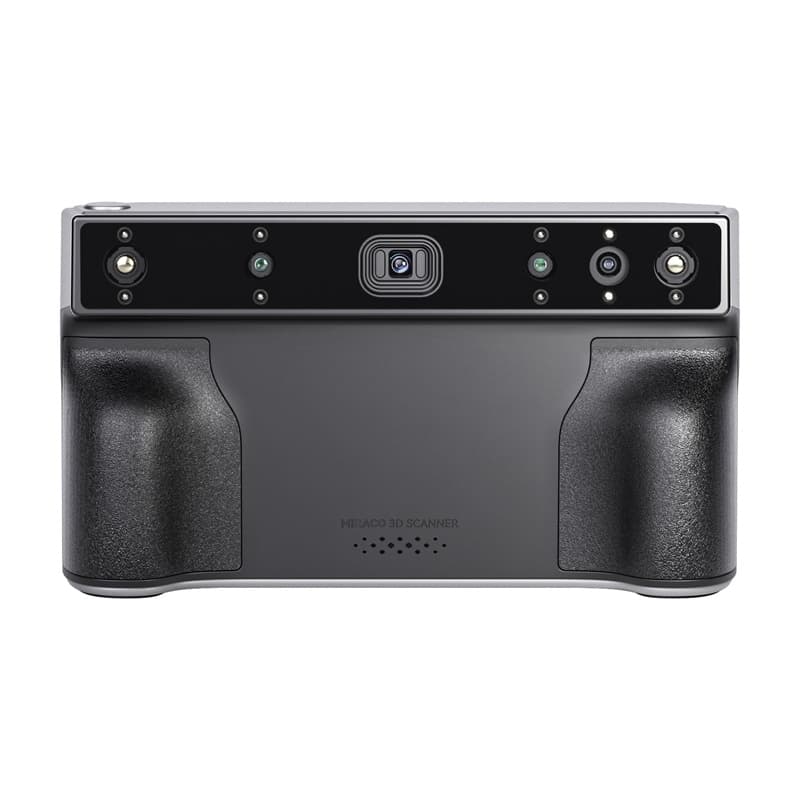

Revopoint Miraco standalone 3D scanner, 2K AMOLED screen, 48 MP camera
Revopoint

Revopoint Miraco standalone 3D scanner, 2K AMOLED screen, 48 MP camera

The Revopoint Miraco is a fully wireless, standalone 3D scanner that runs for about two hours on a single charge and needs no computer. Its quad infrared depth camera system with structured light handles both small details and large objects, with single-frame accuracy of up to 0.05 mm and a working range of 100–1000 mm. You can switch between Single Shot and Continuous Shot modes, scanning at up to 15 frames per second.

Description

Inside is a 2.8 GHz octa-core processor with 16 GB of RAM and 256 GB of storage for up to 10,000 frames. Scans can be reviewed and processed on the 6-inch 2K AMOLED screen, which adjusts through 180°, while a 48 MP RGB camera captures colour. A 9-axis IMU, IP45 rating, Wi-Fi 6 and a weight of 750 g make the Miraco a practical tool both indoors and outdoors.

  • Type: standalone wireless 3D scanner
  • Technology: quad infrared cameras, structured light (Class 1 infrared)
  • Accuracy: up to 0.05 mm per frame, point distance 0.05 mm
  • Working range: 100–1000 mm, frame up to 975 × 775 mm at 1000 mm, minimum object 10 × 10 × 10 mm
  • Hardware: 2.8 GHz 8-core ARM processor, 16 GB RAM, 256 GB eMMC, 6-inch 2K AMOLED screen, 48 MP RGB camera
  • Power and connectivity: 5000 mAh battery, 50 W fast charging (80% in 35 minutes), USB Type-C 3.1, Wi-Fi 6
  • In the box: scanner, tripod, mini turntable with cover and power cable, test bust, calibration plate, storage bag, wrist strap, dual USB-C input adapter, USB-C to USB-C cable (1.8 m), cleaning cloth, stickers, user manual
  • MPN and manufacturer: Miraco, Revopoint
  • Warranty: 12 months

Specifications

BrandRevopoint
Weight (boxed)3.17 kg
Warranty24 months
EAN6975577880277
