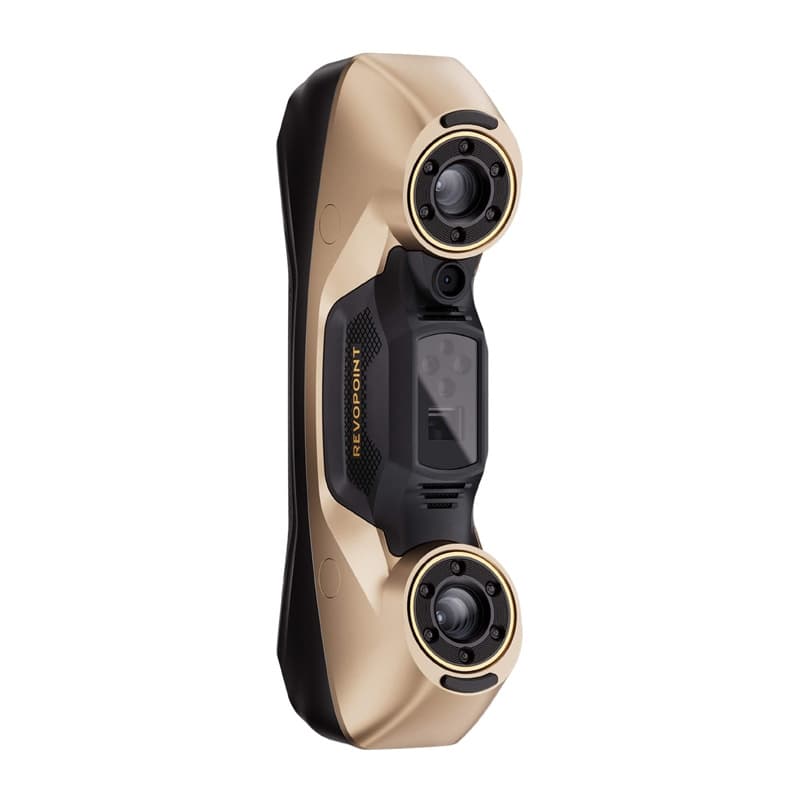

Revopoint MetroY Ultra Standard Edition 3D scanner, 0.015 mm, 90 fps

Name: Revopoint MetroY Ultra Standard Edition 3D scanner, 0.015 mm, 90 fps
Brand: Revopoint
SKU: IP-800060726
Price: 2059 EUR
Availability: InStock

The Revopoint MetroY Ultra Standard Edition is an advanced 3D scanner that combines a blue multi-line laser with structured light and reaches single-frame accuracy of up to 0.015 mm. High volumetric accuracy keeps measurements consistent even on larger objects, making the scanner well suited to rigorous quality control and precise dimensional analysis. It captures up to 90 frames and 3,000,000 points per second and works under light of up to 100,000 lux.

Description

Five blue-light modes, namely 34 crossing lines, 15 parallel lines, a single line for deep holes, structured light and an automatic turntable mode, let you tailor operation to the task. The scanner works with Revo Metro and Revo Measure software, whose algorithms are certified by the German metrology institute PTB. Wi-Fi 6 enables wireless scanning and screen mirroring to a monitor or smartphone.

Type: blue-light 3D scanner, Standard Edition
Accuracy: single-frame accuracy up to 0.015 mm (precision up to 0.01 mm), volumetric 0.015 mm + 0.04 mm × L (m), point distance up to 0.05 mm
Speed: up to 90 fps (NVIDIA GPU) / 60 fps (CPU), 3,000,000 points/s (multi-line), 7,000,000 points/s (structured light)
Light source: 34 crossing, 15 parallel and 1 single blue line, 62-line full-field structured light, 12 blue LEDs
Working distance and area: 200–400 mm, single frame from 152 × 138 mm to 332 × 276 mm, scan volume from 10 × 10 × 10 mm to 2 × 2 × 2 m
Scanner: 4-core ARM 2.0 GHz, 2 MP RGB camera, Wi-Fi 6, 450 g, 211 × 94 × 47 mm
In the box: scanner, tripod, USB-C to USB-C cable, power adapter, model sample, 500 markers (6 mm), dual-axis turntable, carrying case, calibration plate, Mobile Kit (4th gen)
MPN and manufacturer: METROY-ULTRA-SE, Revopoint
Warranty: 12 months
