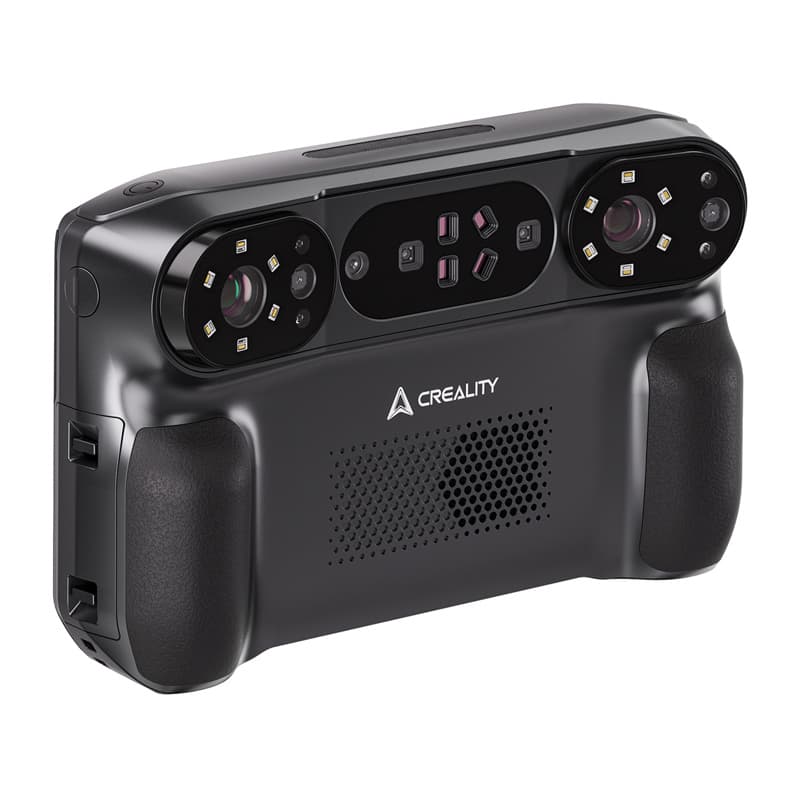

Creality Sermoon P1 3D scanner, laser + NIR, 0.02 mm, standalone

The Creality Sermoon P1 is a professional 3D scanner that combines accuracy of up to 0.02 mm with high speed. Its hybrid light source of 22 crossing, 7 parallel and 1 single blue laser lines plus dual NIR structured light handles large surfaces, fine details and deep holes (depth-to-diameter ratio up to 5:1), with objects from 5 × 5 × 5 mm to 4000 × 4000 × 4000 mm. An onboard 8-core Qualcomm processor, Adreno 740 GPU, 24 GB LPDDR5X and 256 GB UFS 4.0 let you scan and process models without a computer.

Description

Standalone (up to 60 FPS), Wireless PC and Wired PC (up to 100 FPS) modes cover every working scenario. The scanner weighs 830 g and features a 6-inch touchscreen, two swappable 3300 mAh batteries, 65 W fast charging and Wi-Fi 7. Black and metallic surfaces need no matting spray, and outdoors the single-line and 22-line modes work under light of up to 100,000 lux.

  • Type: hybrid 3D scanner (blue laser + NIR structured light), standalone operation
  • Accuracy: laser up to 0.02 mm, NIR up to 0.075 mm; volumetric 0.02 mm + 0.06 mm/m (laser)
  • Resolution: 3D resolution 0.05–2 mm (laser), 0.1–2 mm (NIR)
  • Speed: laser up to 100 FPS and 1,740,000 points/s, NIR up to 30 FPS and 6,881,000 points/s (wired PC mode)
  • Hardware: Qualcomm 8-core 3.36 GHz, Adreno 740, FPGA, 24 GB LPDDR5X, 256 GB UFS 4.0, Wi-Fi 7
  • Dimensions and power: 209 × 129 × 53 mm, 830 g, 2 × 7.2 V 3300 mAh batteries, 65 W PD 3.0 charging
  • In the box: scanner, glass calibration plate, USB-C 3.0 cable (2 m), power adapter, 10 + 10 reflective markers (6 and 3 mm), spare battery, cleaning cloth, lanyard, quick start guide, carrying case
  • MPN and manufacturer: 4008050065, Creality
  • Warranty: 12 months

Specifications

BrandCREALITY
Weight (boxed)3.82 kg
Warranty24 months
EAN6977905743452
