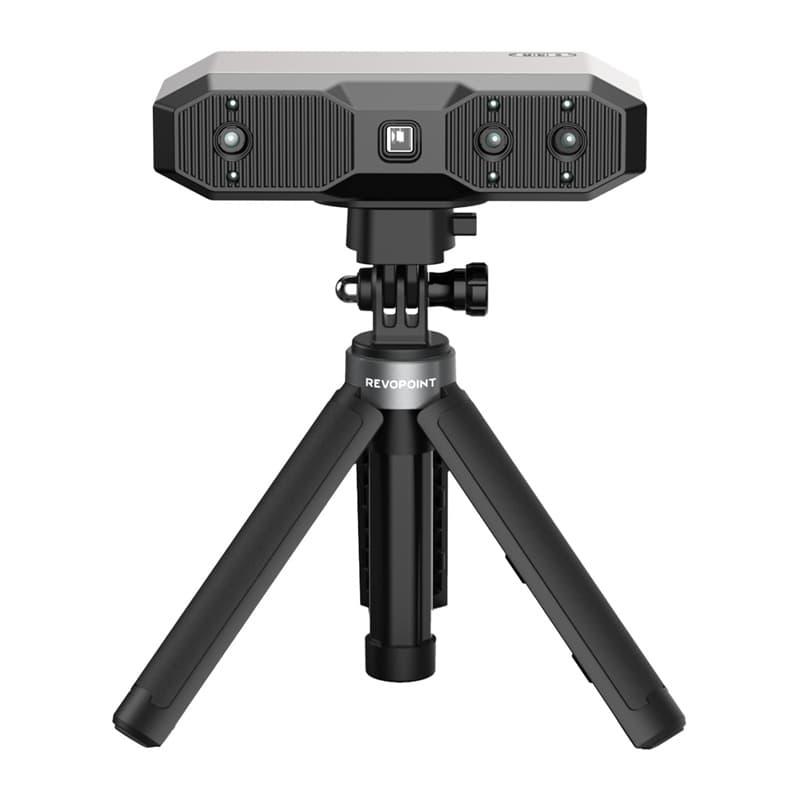

Revopoint Mini 2 Standard 3D scanner for small objects, blue light
Revopoint

Revopoint Mini 2 Standard 3D scanner for small objects, blue light

The Revopoint Mini 2 Standard is a compact 3D scanner for precise digitising of small objects. Its dual-camera blue structured light technology uses safe Class 1 light and delivers single-frame precision of up to 0.02 mm and accuracy of up to 0.05 mm. It suits jewellery, quality control, game modelling, medicine and the digitisation of historical artefacts, capturing both shape and colour.

Description

The working range is 120–250 mm, scanning runs at up to 16 frames per second and a 9-axis IMU reduces the effect of vibrations and accidental movements. Models can be saved as PLY, OBJ, STL, ASC, 3MF, GLTF and FBX, with support for Windows, macOS, Android and iOS. The scanner weighs 175 g, measures 132 × 53 × 36 mm and connects via USB-C or Wi-Fi 6.

  • Type: 3D scanner for small objects, Standard kit
  • Technology: dual-camera blue structured light (Class 1 light)
  • Accuracy: precision up to 0.02 mm, accuracy up to 0.05 mm
  • Working range: 120–250 mm, frame 52 × 64 mm to 168 × 132 mm, minimum object 10 × 10 × 10 mm
  • Speed and connectivity: up to 16 fps, 2 MP depth and RGB cameras, 9-axis IMU, Wi-Fi 6, USB Type-C
  • In the box: scanner, tripod, phone mount, USB-A to USB-C cable, 2-in-1 cable for mobile devices, USB Type-C adapter, mini turntable with cover and power cable, carrying case, test model, calibration board, 500 positioning markers, adhesive tack (Glue Tack), quick start guide, certificate and warranty card
  • MPN and manufacturer: MINI2-STANDARD-EDITI, Revopoint
  • Warranty: 12 months

Specifications

BrandRevopoint
Weight (boxed)2.02 kg
Warranty24 months
EAN6975577880291
