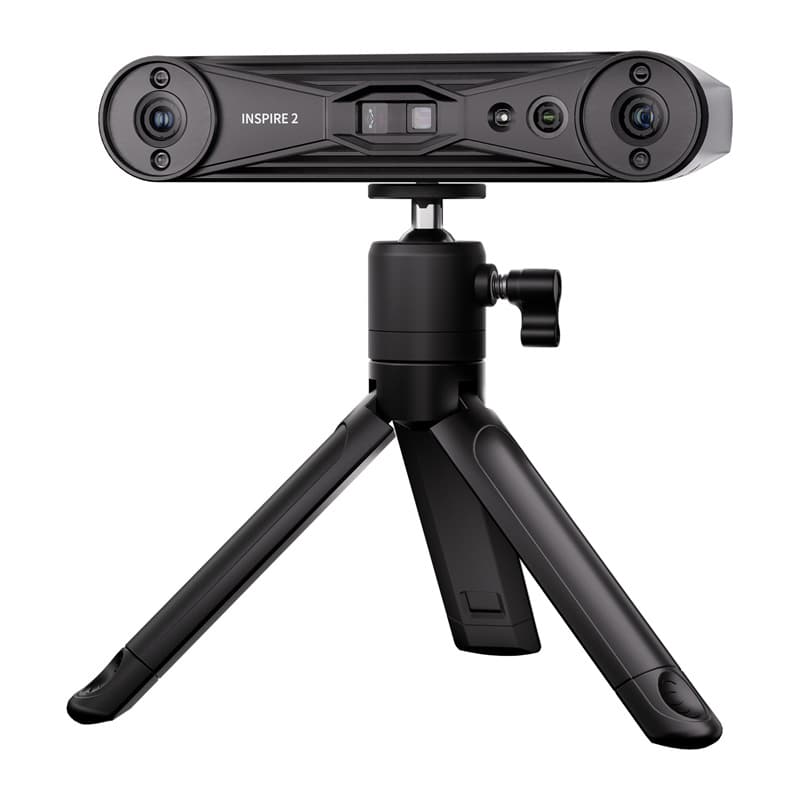

Revopoint Inspire 2 Standard 3D scanner, IR structured light + laser, 0.05 mm
Revopoint

Revopoint Inspire 2 Standard 3D scanner, IR structured light + laser, 0.05 mm

The Revopoint Inspire 2 Standard is a lightweight handheld 3D scanner that can be used in both mobile and stationary setups. Dual-camera infrared structured light is ideal for capturing shapes quickly, while the multi-line laser reproduces details and more challenging surfaces more accurately. Single-frame accuracy reaches 0.05 mm and precision 0.03 mm, with support for objects from 20 × 20 × 20 mm to 2 × 2 × 2 m.

Description

Laser mode runs at up to 90 frames per second and structured light mode at up to 18 frames per second. Revo Scan software lets you edit point clouds and meshes, fill gaps and export models to PLY, OBJ, STL, ASC, 3MF, GLTF and FBX. The scanner weighs about 190 g and connects via Wi-Fi 6, Bluetooth 4.1 or USB-C.

  • Type: handheld 3D scanner, Standard kit
  • Technology: dual cameras, infrared structured light and multi-line laser
  • Accuracy: single-frame accuracy up to 0.05 mm, precision up to 0.03 mm, volumetric accuracy 0.05 mm + 0.1 mm × L (m)
  • Working range: 200–400 mm indoors, 150–250 mm outdoors, field of view 43° × 35°
  • Camera and connectivity: RGB 1280 × 800, Wi-Fi 6, Bluetooth 4.1, USB Type-C, DC 5 V / 1 A power
  • Dimensions and weight: 53 × 27 × 132 mm, 190 g
  • In the box: scanner, tripod, USB-C to USB-C cable (2 m), mini rotating platform, 200 positioning markers, outdoor filters, calibration board
  • MPN and manufacturer: INSPIRE-2-STANDARD-E, Revopoint
  • Warranty: 12 months

Specifications

BrandRevopoint
Weight (boxed)2.32 kg
Warranty24 months
EAN6975577881328
