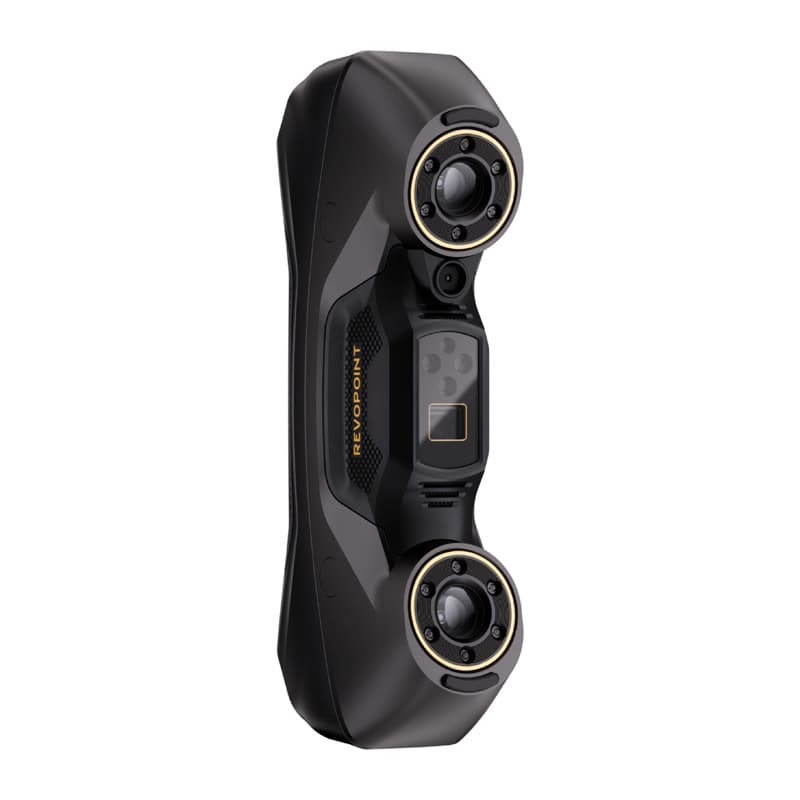

Revopoint MetroY Pro 3D scanner, blue laser + structured light, 0.02 mm
Revopoint

Revopoint MetroY Pro 3D scanner, blue laser + structured light, 0.02 mm

The Revopoint MetroY Pro is a professional 3D scanner for engineers, designers and specialists in quality control and reverse engineering. It captures objects from 10 × 10 × 10 mm up to 1 × 1 × 1 m, with single-frame precision of 0.01 mm and accuracy of 0.02 mm. Its blue light system combines 34 cross lines, 15 parallel lines, a single line and a 62-line full-field pattern, so there is a suitable mode for every surface, from glossy and dark materials to deep holes.

Description

In multi-line laser mode the scanner captures up to 1,700,000 points per second, rising to 7,000,000 points per second with full-field structured light. Many dark and glossy surfaces can be scanned without spray. It works handheld or on a tripod with the rotating stand, connects via Wi-Fi 6 or USB-C and weighs around 450 g.

  • Type: handheld and desktop 3D scanner
  • Technology: blue multi-line laser and full-field structured light
  • Accuracy: single-frame precision 0.01 mm, accuracy 0.02 mm, point distance 0.05 mm
  • Working range: 200–400 mm, frame 152 × 138 mm to 332 × 276 mm, objects from 10 mm to 1 m
  • Speed and connectivity: up to 7,000,000 points/s, 2 MP RGB camera, Wi-Fi 6, USB-C
  • File formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX (Revo Metro software)
  • In the box: scanner, USB-C to USB-C cable, power adapter, 200 markers, carrying case, calibration board, documentation, Mobile Kit (3rd generation), tripod, rotating stand, test model (bust)
  • MPN and manufacturer: METRO-Y-PRO, Revopoint
  • Warranty: 12 months

Specifications

BrandRevopoint
Weight (boxed)6.19 kg
Warranty24 months
EAN6975577881489
