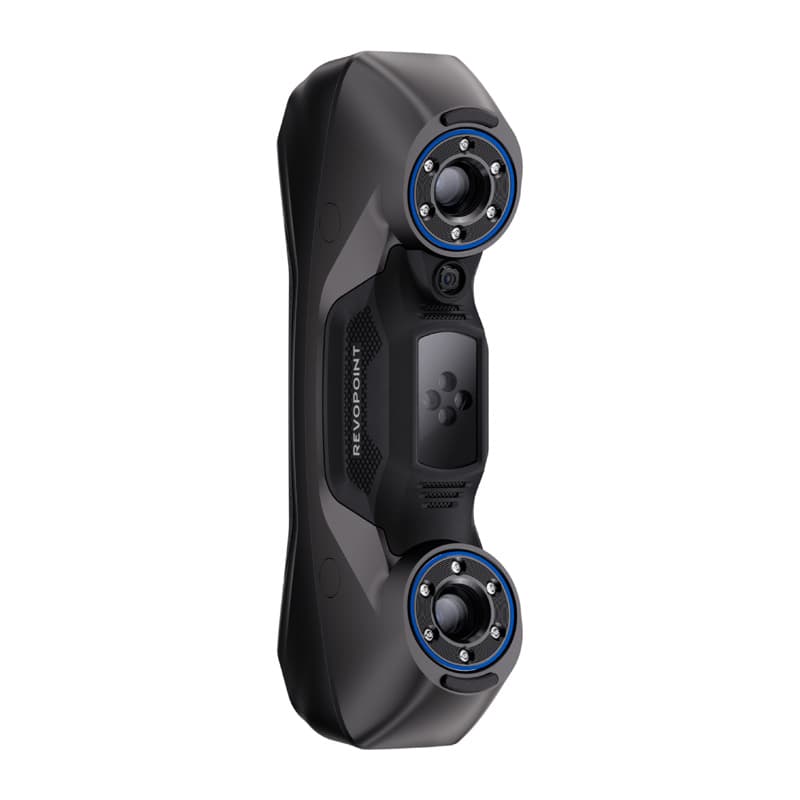

Revopoint MetroY 3D scanner, blue multi-line laser, 0.02 mm
Revopoint

Revopoint MetroY 3D scanner, blue multi-line laser, 0.02 mm

The Revopoint MetroY is a professional handheld 3D scanner for engineers, designers, makers and quality control specialists working with small and medium-sized parts. It digitises objects from 10 × 10 × 10 mm to 1 × 1 × 1 m with volumetric accuracy of 0.02 mm + 0.04 mm × L (m) and speeds of up to 1,500,000 points per second.

Description

The blue laser consists of 30 cross lines, 15 parallel lines and one single line: Cross-Lines mode suits glossy and dark materials, Parallel-Lines handles fine details, and Single-Line captures deep holes, channels and hard-to-reach areas. Many dark and glossy surfaces can be scanned without spray, the scanner connects via Wi-Fi 6 or USB-C and weighs around 447 g.

  • Type: handheld 3D scanner
  • Technology: blue multi-line laser (30 cross, 15 parallel and 1 single line)
  • Accuracy: precision up to 0.01 mm, accuracy up to 0.02 mm, volumetric accuracy 0.02 mm + 0.04 mm × L (m)
  • Working range: 200–400 mm, frame 123 × 130 mm to 290 × 260 mm, field of view 43 × 33°
  • Speed and connectivity: up to 1,500,000 points/s, 2 MP RGB camera, Wi-Fi 6, USB-C
  • File formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX (Revo Metro software)
  • In the box: scanner, USB-C to USB-C cable, power supply, 200 markers, carrying case, calibration board, documentation
  • MPN and manufacturer: METRO-Y, Revopoint
  • Warranty: 12 months

Specifications

BrandRevopoint
Weight (boxed)3.83 kg
Warranty24 months
EAN6975577881458
