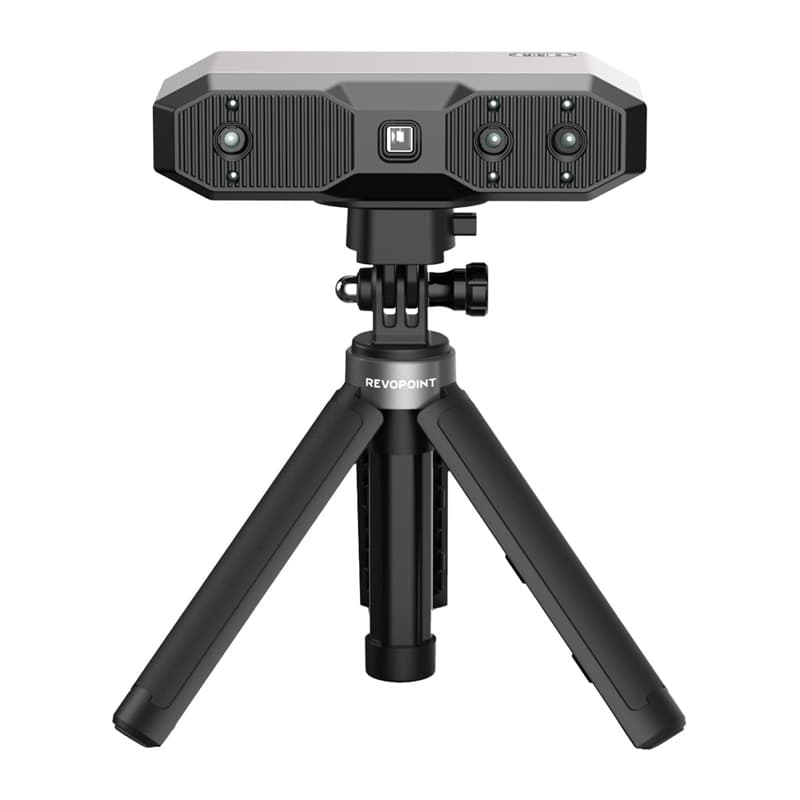

Revopoint Mini 2 Advanced 3D scanner, blue light, 2-axis auto turntable
Revopoint

Revopoint Mini 2 Advanced 3D scanner, blue light, 2-axis auto turntable

The Revopoint Mini 2 Advanced is a 3D scanner designed for digitising small objects, using dual-camera blue structured light technology with user-safe Class 1 blue light. Single-frame precision reaches 0.02 mm and accuracy 0.05 mm, it scans at up to 16 frames per second, and a 9-axis IMU keeps tracking stable. It is well suited to jewellery, small technical parts, collectible figurines and historical artefacts.

Description

The working range is 120–250 mm with a frame of 52 × 64 mm to 168 × 132 mm, and the 2 MP RGB cameras also capture colour. The Advanced kit additionally includes a two-axis automatic turntable and a mounting weight. The scanner weighs 175 g, measures 132 × 53 × 36 mm and connects via USB-C or Wi-Fi 6.

  • Type: 3D scanner for small objects, Advanced kit
  • Technology: dual-camera blue structured light (Class 1 light)
  • Accuracy: precision up to 0.02 mm, accuracy up to 0.05 mm
  • Working range: 120–250 mm, frame 52 × 64 mm to 168 × 132 mm, minimum object 10 × 10 × 10 mm
  • Speed and connectivity: up to 16 fps, 2 MP depth and RGB cameras, 9-axis IMU, Wi-Fi 6, USB Type-C
  • Compatibility: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX; Windows 10/11 (64-bit), macOS 11.0 or later, Android, iOS
  • In the box: scanner, tripod, phone mount, USB-A to USB-C cable, 2-in-1 cable for mobile devices, USB Type-C adapter, mini turntable with cover and power cable, carrying case, calibration board, 500 positioning markers, mounting weight, test model, quick start guide, certificate and warranty card, two-axis automatic turntable
  • MPN and manufacturer: MINI2-ADVANCED-EDITI, Revopoint
  • Warranty: 12 months

Specifications

BrandRevopoint
Weight (boxed)3.39 kg
Warranty24 months
EAN6975577880307
