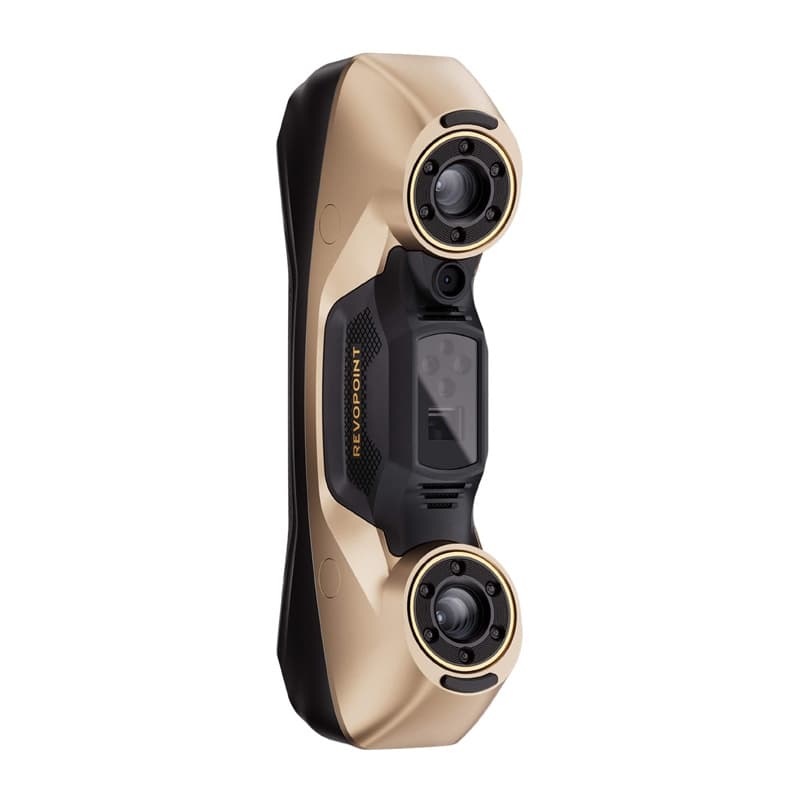

Revopoint MetroY Ultra CMM Edition 3D scanner, 0.015 mm, ball plate

Name: Revopoint MetroY Ultra CMM Edition 3D scanner, 0.015 mm, ball plate
Brand: Revopoint
SKU: IP-800060727
Price: 2859 EUR
Availability: InStock

The Revopoint MetroY Ultra is an industrial-grade 3D scanner that combines a blue multi-line laser with structured light, reaching single-frame accuracy of up to 0.015 mm and volumetric accuracy of 0.015 mm + 0.04 mm × L (m). It captures up to 90 frames and 3,000,000 points per second and keeps working under light of up to 100,000 lux. Five modes cover different tasks: 34 crossing lines for fast scanning, 15 parallel lines for detail, a single line for deep holes, full-field structured light and an automatic turntable mode.

Description

The CMM Edition adds a metrology-grade ball plate for one-click accuracy verification right at the workstation, plus a one-year Revo Measure license with PTB-certified algorithms for measurement, analysis and reporting. Wi-Fi 6 enables wireless scanning and mirroring the view to several devices at once.

Type: industrial blue-light 3D scanner, CMM Edition
Accuracy: single-frame accuracy up to 0.015 mm (precision up to 0.01 mm), volumetric 0.015 mm + 0.04 mm × L (m), point distance up to 0.05 mm
Speed: up to 90 fps (NVIDIA GPU) / 60 fps (CPU), 3,000,000 points/s (multi-line), 7,000,000 points/s (structured light)
Light source: 34 crossing, 15 parallel and 1 single blue line, 62-line full-field structured light, 12 blue LEDs
Working distance and area: 200–400 mm, single frame from 152 × 138 mm to 332 × 276 mm, scan volume from 10 × 10 × 10 mm to 2 × 2 × 2 m
Scanner: 4-core ARM 2.0 GHz, 2 MP RGB camera, Wi-Fi 6, 450 g, 211 × 94 × 47 mm
In the box: scanner, tripod, USB-C to USB-C cable, power adapter, model sample, 500 markers (6 mm), dual-axis turntable, carrying case, calibration plate, Mobile Kit (4th gen), calibration ball plate, 1-year Revo Measure license
MPN and manufacturer: METROY-ULTRA-CCM, Revopoint
Warranty: 12 months
