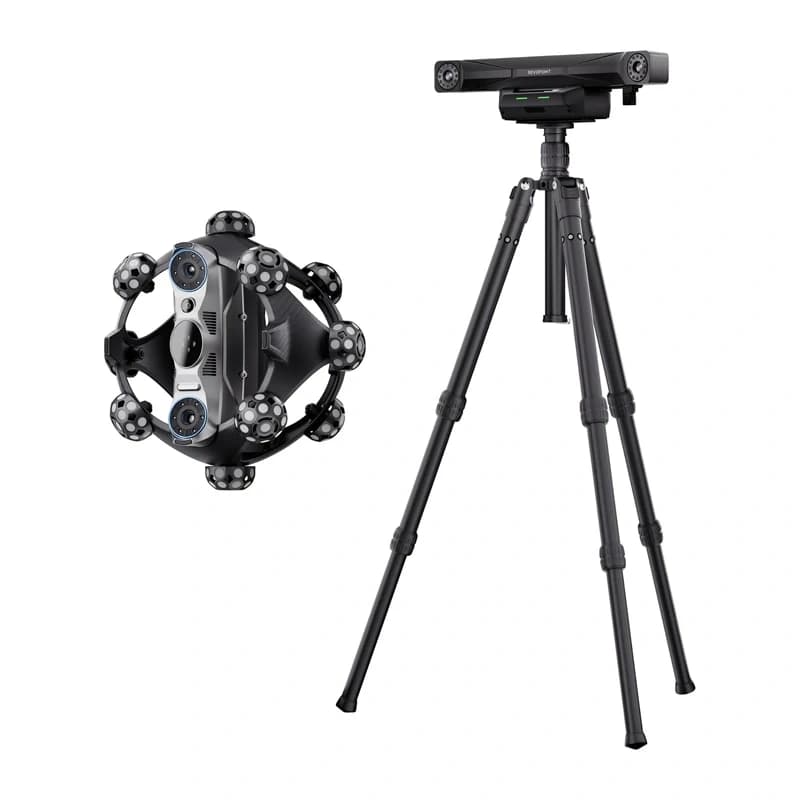

Revopoint Trackit SR Standard optical 3D scanner with tracker, 0.02 mm

Wireless scanning and support for multi-position stations simplify the digitization of large objects, and the scanner itself weighs just 1 kg. Thermal stabilization takes two minutes, system calibration less than 20 minutes, and scanning works under light of up to 100,000 lux. The scanner also captures texture and color and works with Revo Measure and Revo Track software.

• Type: optically tracked 3D scanner (scanner + tracker), Standard
• Accuracy: single-frame 0.02 mm, volumetric 0.02 mm + 0.04 mm × L (m), point distance 0.05 mm
• Speed and light source: up to 2,000,000 points/s; 30 crossing, 17 parallel or 1 single blue laser line
• Working distance and capture area: 200–500 mm, single frame from 123 × 130 mm (200 mm) to 330 × 325 mm (500 mm)
• Tracker: working distance 800–2500 mm, 3 m³ tracking volume, objects 0.01–4 m, NIR, 1.5 kg
• Scanner details: Wi-Fi 6, 1 kg, 250 × 250 × 177 mm, carbon fiber frame, operating temperature 0–30 °C; PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
• In the box: scanner, tracker, two-axis auto-calibration gimbal, tripod, gimbal adapter, quick-release connector, calibration plate and rod, power adapter, cables, cable case, 20 magnetic and 200 standard markers, wheeled case, 2 batteries, battery charger
• MPN and manufacturer: Trackit SR Standard, Revopoint
• Warranty: 12 months
