Revopoint Trackit SR CMM Edition optical 3D scanner, ball plate, Revo Measure

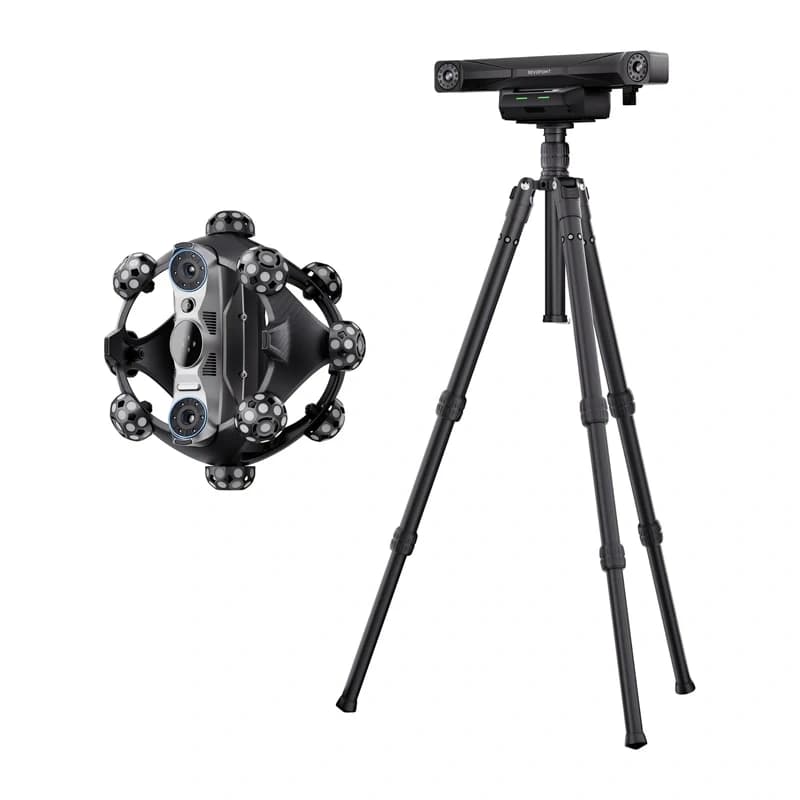

The Revopoint Trackit SR CMM Edition is an optically tracked 3D scanning system for precision measurement: the scanner and tracker work markerless and wirelessly. Three modes cover different tasks: 30 crossing blue laser lines for fine detail, 17 parallel lines for fast capture of larger components and a single line for deep holes. Single-frame accuracy is 0.02 mm, volumetric accuracy 0.02 mm + 0.04 mm × L (m), and scanning speed reaches 2,000,000 points per second.

Description

The scanner weighs 1 kg, thermal stabilization takes two minutes and full system calibration less than 20 minutes, and it keeps working under light of up to 100,000 lux. The CMM Edition kit adds a calibration ball plate, a one-year Revo Measure subscription (Windows 10/11), a battery holder and a user manual.

  • Type: optically tracked 3D scanner (scanner + tracker), CMM Edition
  • Accuracy: single-frame 0.02 mm, volumetric 0.02 mm + 0.04 mm × L (m), point distance 0.05 mm
  • Speed and light source: up to 2,000,000 points/s; 30 crossing, 17 parallel or 1 single blue laser line
  • Working distance and capture area: 200–500 mm, single frame from 123 × 130 mm (200 mm) to 330 × 325 mm (500 mm)
  • Tracker: working distance 800–2500 mm, 3 m³ tracking volume, objects 0.01–4 m, NIR, 1.5 kg
  • Connectivity and formats: Wi-Fi 6; PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
  • In the box: scanner, tracker, two-axis auto-calibration gimbal, tripod, calibration plate and rod, ball plate, 2 batteries, battery holder, charger, cables, 20 magnetic and 200 standard markers, wheeled case, 1-year Revo Measure subscription
  • MPN and manufacturer: Trackit SR CMM Editi, Revopoint
  • Warranty: 12 months

Specifications

BrandRevopoint
Weight (boxed)18.84 kg
EAN6975577882141
