TP-LINK

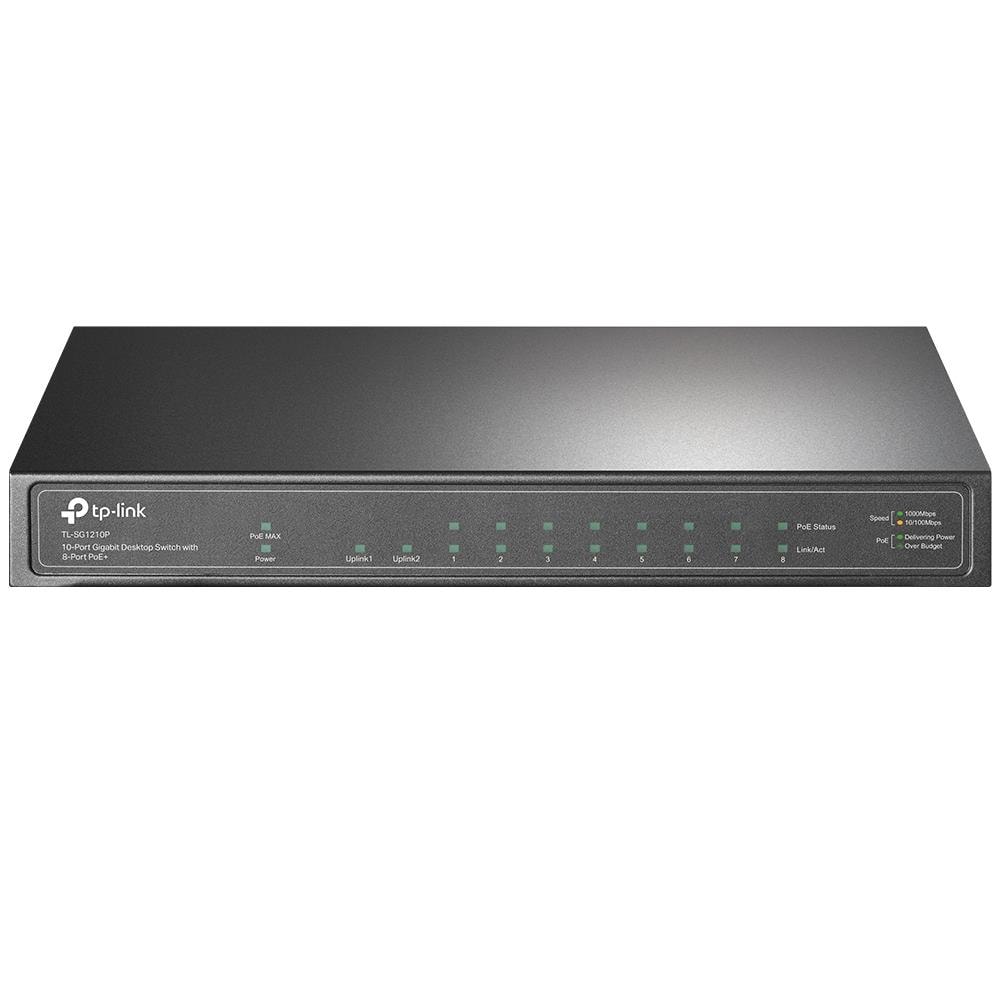

TP-Link TL-SG1210P 10-Port Gigabit Unmanaged PoE+ Switch

  • Switching capacity20
  • Power consumption (typical)7.11 W
  • Operating temperature (T-T)0 – 50 °C
  • Switch typeUnmanaged
  • Width209 mm
  • Fiber ethernet cabling technology1000BASE-X

The TP-Link TL-SG1210P is a 10-port gigabit unmanaged switch with 8 PoE+ ports, purpose-built to power and connect IP cameras, access points, and VoIP phones over a single Ethernet cable — no separate power adapters needed.

Description

Eight PoE+ Ports, Zero Configuration

  • 8 x PoE+ ports support IEEE 802.3af/at devices, automatically detecting and supplying power to connected equipment
  • 9 x Gigabit RJ45 ports plus 1 x SFP uplink port for fiber connectivity or a high-speed uplink to your core network
  • Fully unmanaged operation — plug in and go, no software or login required
  • Compact desktop/pedestal metal chassis with fanless design for silent operation in offices or server closets
  • Intelligent power management prevents overload by prioritizing power delivery across active PoE ports

A solid fit for small offices, retail spaces, and home networks looking to deploy wireless access points, IP surveillance cameras, or IP phone systems without running separate power cabling.

Specifications

General

BrandTP-LINK
Model nameTL-SG1210P
Product colourGrey
Housing materialMetal
ManualYes
FanlessYes
Fiber typeSingle-mode
User guideYes
IGMP snoopingYes
Wall mountableYes
Auto-negotiationYes
MAC address table4000
Quick start guideYes
Store-and-forwardYes
SFP module slots quantity1
Operating relative humidity (H-H)10 - 90
EAN6935364052980

Storage

Switching capacity20
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Power over Ethernet (PoE)Yes
Fiber ethernet cabling technology1000BASE-X
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Total Power over Ethernet (PoE) budget63
Gigabit Ethernet (copper) ports quantity9
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity9
Power over Ethernet plus (PoE+) ports quantity8

Connectivity

Networking standardsIEEE 802.1p/IEEE 802.3af/IEEE 802.3at/IEEE 802.3x

Keyboard & controls

Switch typeUnmanaged

Battery & power

Power consumption (typical)7.11 W
Power consumption (max)78.13 W
Input current1.31
DC input voltage53.5
Power supply includedNo

Performance & capacities

Operating temperature (T-T)0 – 50 °C
Heat dissipation266.42

Features

Cables includedAC
LED indicatorsYes
10G supportNo
Auto MDI/MDI-XYes
MAC address auto-aging supportedYes
Quality of Service (QoS) supportYes
MAC address auto-learning supportedYes

Dimensions & weight

Width209 mm
Depth126 mm
Height26 mm
