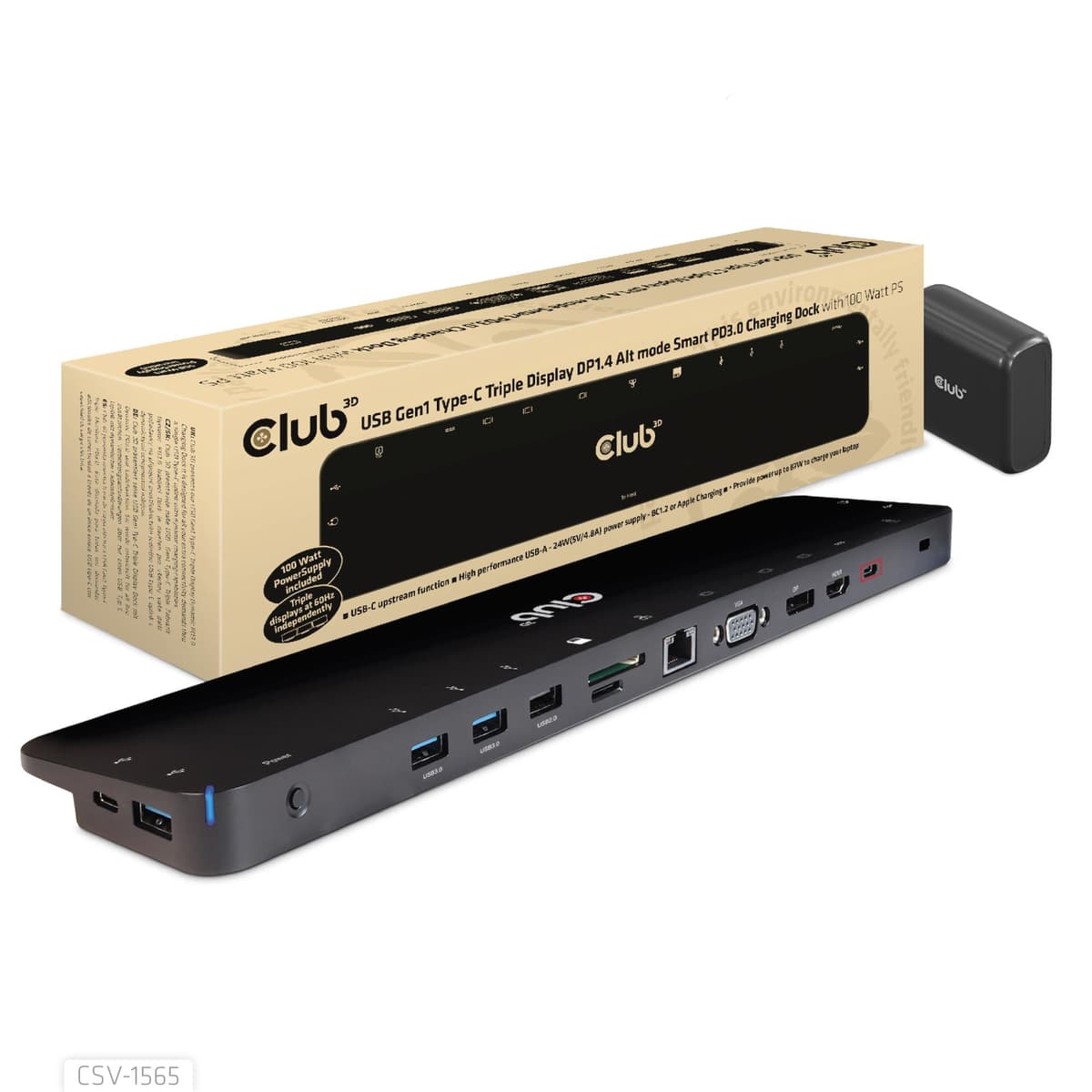

CLUB3D CSV-1565 docking station USB-C, 3 displays, HDMI + DP + VGA, 100 W adapter
CLUB3D

CLUB3D CSV-1565 docking station USB-C, 3 displays, HDMI + DP + VGA, 100 W adapter

The CLUB3D CSV-1565 is a USB-C docking station that puts video, data, network, audio and charging on one cable. Three different video outputs let you run up to three screens at once, and the included 100 W power adapter charges the laptop over USB PD 3.0, so you can leave the laptop charger at home.

  • Host connection: USB-C 5 Gbps (USB 3.2 Gen 1), the computer must support DisplayPort 1.4 Alt Mode
  • Video outputs: HDMI 4K 60 Hz, DisplayPort 1.4 4K 60 Hz, VGA 1920 × 1080 60 Hz
  • Laptop power: USB-C PD 3.0 up to 100 W (20 V / 5 A), 100 W power adapter included
  • Ports: 3 × USB-A 5 Gbps, USB-C data port, Gigabit RJ-45, SD and microSD slots, 3.5 mm combo audio jack
  • Colour: Black

Description

Three screens and a charger in one box

In MST mode three screens run at once: one at 4K 30 Hz and two at 1920 × 1080 60 Hz. With one or two monitors, HDMI and DisplayPort go up to 4K 60 Hz. The dock draws only the power it actually uses from the adapter and passes the rest to the laptop. The SD and microSD slots work at the same time.

Who this docking station is for

People who move between office and home and want to connect everything on the desk with one plug: monitors, network, headset and USB devices. The VGA output helps when a meeting room still has an older projector or monitor, and the bundled adapter means the laptop charger can stay in the bag.

Specifications

General

BrandCLUB3D
Product colourBlack
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
Headphone outputs1
EAN8719214472702

Audio

Microphone inYes

Ports

Card reader integratedYes
Combo headphone/mic portYes
HDMI ports quantity1
USB 2.0 ports quantity5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity2
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
DisplayPort version1.4
DisplayPorts quantity1

Connectivity

Connectivity technologyDocking

Features

Plastic packaging weight0
Total plastic packaging weight0
Paper/cardboard packaging weight239
Total paper/cardboard packaging weight0

Questions & answers

How many monitors can I connect?

Up to three: in MST mode one 4K 30 Hz screen and two Full HD 60 Hz screens. The computer's USB-C port must support DisplayPort 1.4 Alt Mode.

Does the dock charge my laptop?

Yes, over USB PD 3.0 up to 100 W (20 V / 5 A), and a 100 W power adapter is included. Power is shared dynamically so the laptop gets as much as possible.

Can I connect a headset?

Yes, the 3.5 mm stereo jack supports both headphones and a microphone, with sampling rates up to 96 kHz.
