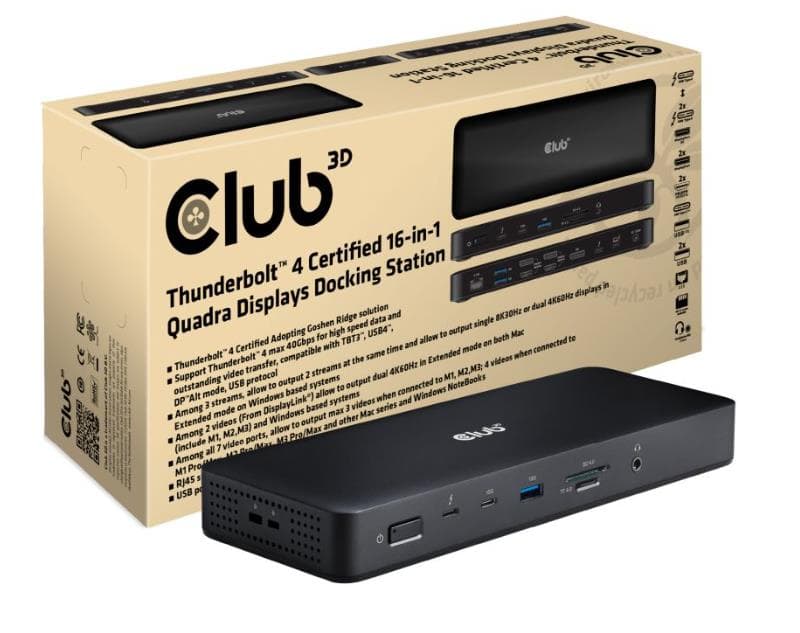

Club3D CSV-1583 Thunderbolt 4 docking station 16-in-1, 4 displays, DisplayLink, 96 W

The Club3D CSV-1583 is a Thunderbolt 4 certified 16-in-1 docking station that connects up to four monitors to a laptop by combining Thunderbolt video with DisplayLink technology. It charges the laptop at up to 96 W, adds 2.5GbE networking, a card reader and USB ports to the desk, and works with both Windows and Mac.

  • Host connection: Thunderbolt 4, up to 40 Gbit/s; TB4 and USB4 computers, compatible with TB3 and DP Alt Mode
  • Video outputs: 3 × DisplayPort, 2 × HDMI, up to 4 monitors in total (up to 3 with base Apple M1, M2, M3)
  • Display modes: via Thunderbolt 1 × 8K 30 Hz or 2 × 4K 60 Hz (Windows), via DisplayLink 2 × 4K 60 Hz
  • Charging: up to 96 W to the laptop, up to 140 W for laptop and dock combined, smart power sharing
  • Ports: 4 × Thunderbolt 4, 3 × USB-A, 1 × USB-C, 2.5GbE RJ-45, SD and microSD (SD 4.0), headset jack
  • System and size: Windows 10 or later, macOS 13.5.2; 225 × 85 × 22 mm, 594 g, black

Description

Thunderbolt 4 and DisplayLink combined

The dock uses a Thunderbolt 4 link of up to 40 Gbit/s plus a DisplayLink chip that sends video over the USB data channel. Through Thunderbolt, Windows can drive either one 8K 30 Hz screen or two 4K 60 Hz screens, and DisplayLink adds two more 4K 60 Hz screens on both Windows and Mac. That way even a computer with a limited number of native video outputs can run more monitors.

Up to four monitors, Mac included

In total the dock has seven ports capable of video output, including three DisplayPort and two HDMI outputs. Windows laptops and Macs with Apple M1, M2 and M3 Pro or Max chips can use up to four monitors. Macs with the base M1, M2 and M3 chips support up to three monitors through the dock, which is still more than those computers allow on their own.

Charging with smart power sharing

The dock supplies up to 96 W to the laptop and up to 140 W for the laptop and dock combined. The smart power feature distributes power in real time according to how much the laptop and connected devices are drawing, so the capacity of the external power supply is fully used. Power comes in through a DC jack, and the power cable is 1 m long.

Networking, USB and a fast card reader

Wired networking runs through a 2.5GbE RJ-45 port, faster than standard gigabit. USB devices get three USB-A ports and one USB-C port, plus four Thunderbolt 4 ports. The SD and microSD card reader supports the SD 4.0 standard at up to 312 MB/s, which speeds up copying photos and video from a camera. A combo jack takes headphones and a microphone.

Compact housing and theft protection

The dock measures 225 × 85 × 22 mm and weighs 594 g, so it sits next to the laptop without taking up much desk space. The Thunderbolt 4 cable is 0.8 m long. The housing has a slot for a Kensington lock and, according to the manufacturer description, for the smaller Nano lock as well, so the dock can be secured to an office desk.

Who this docking station is for

Office workers and analysts who need three or four monitors at their laptop; Mac users whose M1, M2 or M3 machine does not support several external screens on its own; and shared workplaces where both Windows laptops and Macs use the same dock and need 2.5GbE networking and a fast card reader.

Specifications

General

BrandCLUB3D
Product colourBlack
Host interfaceThunderbolt 4
Data transfer rate40
EAN8719214473044

Storage

Compatible memory cardsMicroSD (TransFlash)/SD

Ports

Card reader integratedYes
Combo headphone/mic portYes
HDMI ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Thunderbolt 4 ports quantity4
Ethernet LAN (RJ-45) ports1
DC-in jackYes
Cable lock slotYes
Cable lock slot typeKensington
DisplayPorts quantity3
Thunderbolt 4 cable length0.8

Connectivity

Connectivity technologyWired

Software & security

Mac operating systems supportedYes
Windows operating systems supportedWindows 10

Battery & power

Power cable length1

Features

Cables includedPower
Plastic packaging weight4
Total plastic packaging weight20
Paper/cardboard packaging weight163
Total paper/cardboard packaging weight815

Dimensions & weight

Width85 mm
Depth225 mm
Height22 mm
Weight594 g

Questions & answers

How many monitors can I connect to a Mac?

Up to three with base Apple M1, M2 and M3 chips, and up to four with M1, M2 and M3 Pro or Max. Windows laptops also support up to four.

Does the dock charge my laptop?

Yes, at up to 96 W. Laptop and dock together get up to 140 W, and the smart power feature shares it according to demand.

Which operating systems does the dock work with?

Windows 10 or later and macOS 13.5.2. The manufacturer notes that limitations may vary between Apple Silicon models.

Which cables are included?

A 1 m power cable is listed as included. The Thunderbolt 4 cable is 0.8 m long.
