Lian Li RS1000G power supply 1000 W, 80 PLUS Gold, ATX 3.1, white
LIAN LI

Lian Li RS1000G power supply 1000 W, 80 PLUS Gold, ATX 3.1, white

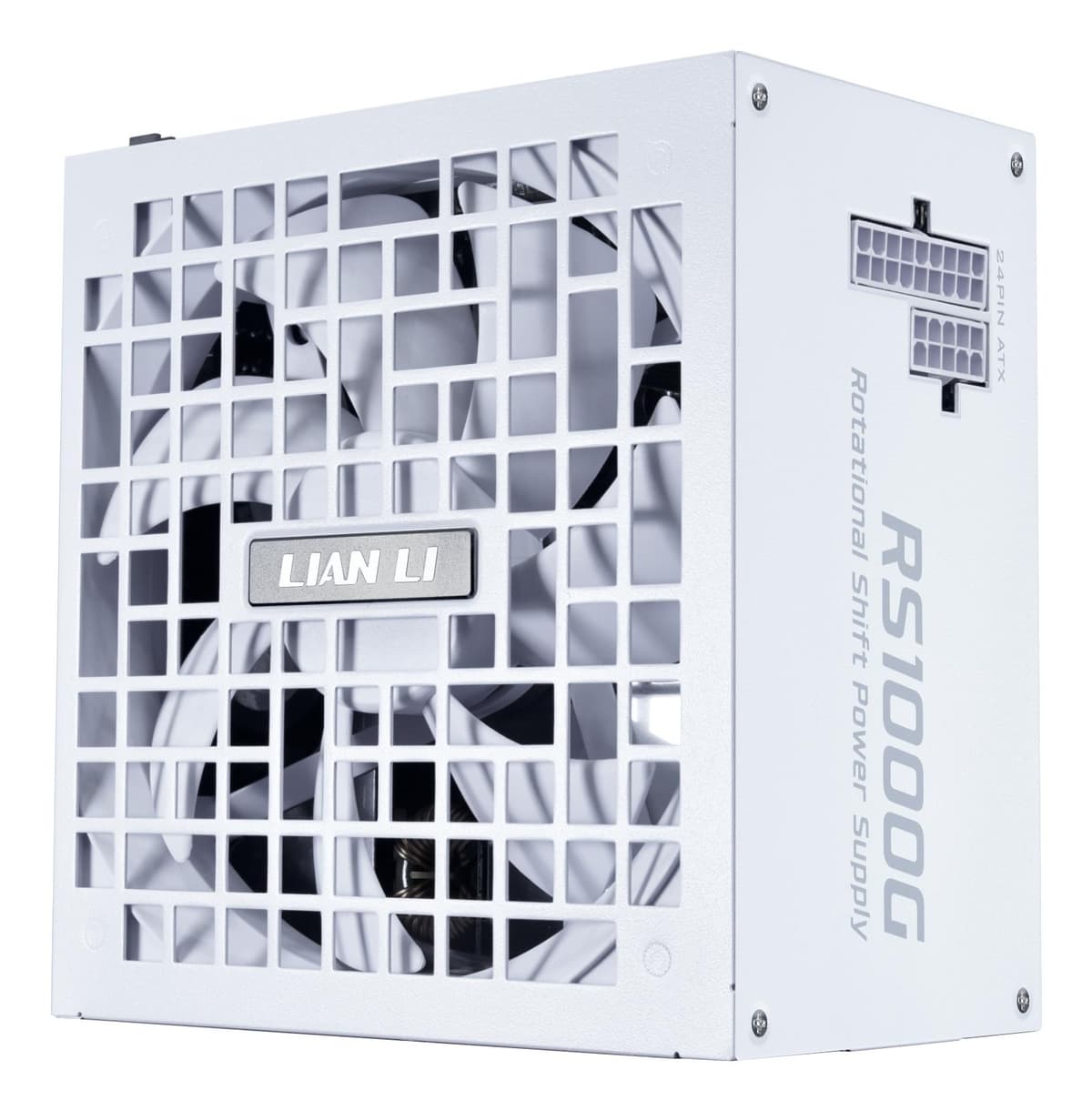

The Lian Li RS1000G is a white, fully modular 1000 W power supply built to ATX 3.1. Its compact 150 × 86 × 150 mm housing, 90° rotatable AC inlet and 135 mm fan let you mount it in the usual position or on its side in a dual-chamber case.

  • Wattage: 1000 W
  • Efficiency: 80 PLUS Gold, Cybenetics Platinum-level per the manufacturer
  • Cabling: fully modular, braided motherboard cable, flat CPU and PCIe cables
  • Connectors: 12V-2×6, 2 × PCIe 6+2, 4 × Molex, dual-sided 20+4 ATX output
  • Size: ATX, 150 × 86 × 150 mm
  • Cooling: 135 mm FDB fan, 0–1600 rpm, 36.21 dB

Description

Mounting that adapts to your case

The AC inlet rotates 90°, so the unit can sit in the standard spot or stand vertically against the side of the case. The motherboard cable can leave from either side of the unit, and the 18+10-pin output has a dust cover. The flat CPU and PCIe cables fold shorter with magnetic clips, which helps with back-connect motherboards. The capacitors are German EPCOS parts.

Who this power supply is for

Builders using a white dual-chamber case who mount the power supply on its side and want visible cables to look tidy. 1000 W and the 12V-2×6 cable leave headroom for a high-end graphics card, and the quiet 135 mm fan suits a PC that runs under the desk all day.

Specifications

General

BrandLIAN LI
Model nameRS1000G
Product colourWhite
PurposePC
ATX version3.1
Cabling typeFully-Modular
Fan diameter135
Number of fans1
Mean time between failures (MTBF)100000
EAN4718466019165

Processor

CPU power cable length700

Ports

Motherboard power connector20+4 pin ATX
ATX power connector (20+4 pin)Yes
PCI Express power connectors (6+2 pin)2
Peripheral (Molex) power connectors (4-pin)4

Battery & power

AC input voltage100 – 240 V
AC input frequency50/60
Total power1000
Input current8 - 15
Combined power (+5V)100
80 PLUS certification80 PLUS Gold
Combined power (+12V)1200
Combined power (+3.3V)100
Combined power (+5Vsb)100
Power protection featuresNo load operation/Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage
Motherboard power cable length620
PCI Express power cable length650
Power Factor Correction (PFC) typeActive
Power supply unit (PSU) form factorATX
Peripheral (Molex) power cable length500

Performance & capacities

Noise level36.21 dB
Operating temperature (T-T)0 – 40 °C
Fan speed0 - 1600

Features

Bearing technologyFDB

Dimensions & weight

Width86 mm
Depth150 mm
Height150 mm

Questions & answers

Is a 12V-2×6 cable for new graphics cards included?

Yes, Lian Li's own 12V-2×6 cable with a two-colour connector housing is included, making it easy to see whether the plug is fully seated. All modular cables come in the box.

How quiet is it?

The 135 mm fluid dynamic bearing fan spins at 0–1600 rpm with a noise level of 36.21 dB. The manufacturer also cites PPLP.info SSS and Cybenetics A noise ratings.

What operating temperature does it handle?

The rated operating range is 0–40 °C, which covers normal home and office conditions.
