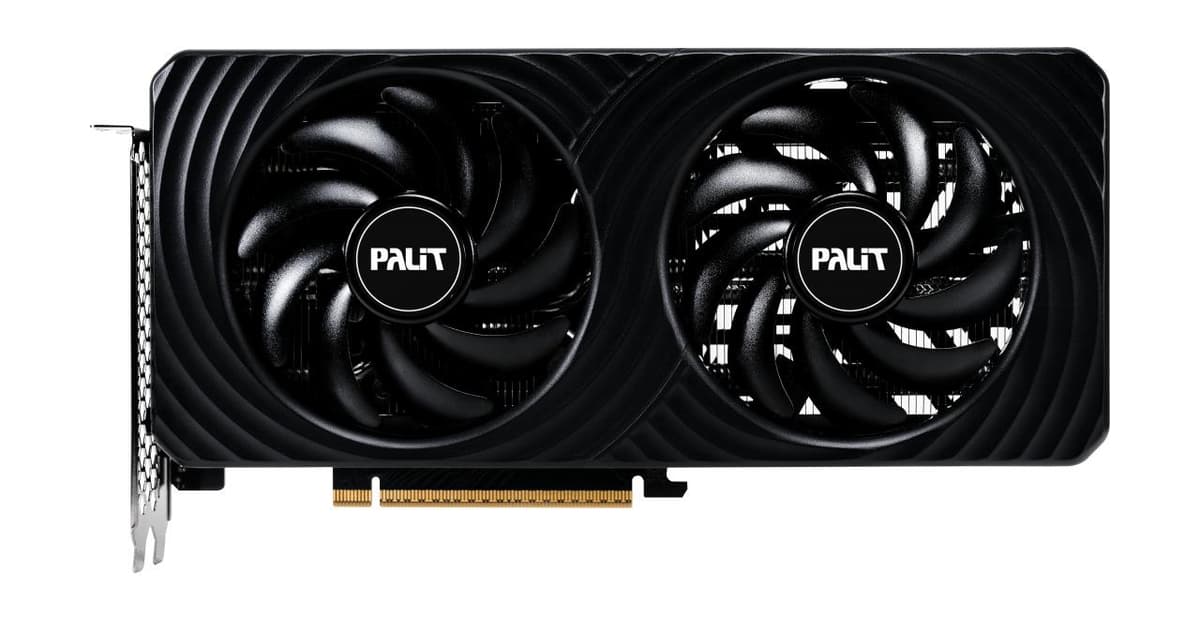

The card is built on the NVIDIA GeForce RTX 5060 Ti with 4608 CUDA cores, fifth-generation Tensor cores and fourth-generation RT cores. DLSS 4 with Multi Frame Generation uses AI to create additional frames and raise frame rates, while Reflex 2 cuts input latency in competitive games. The base clock is 2407 MHz and the boost clock reaches 2573 MHz.
Video memory is 8 GB of GDDR7 at 28 Gbps on a 128-bit bus, for 448 GB/s of bandwidth. 8 GB is enough for Full HD gaming and, in many titles, for 1440p. If you plan to use the heaviest texture packs, work on large video projects or run AI models locally, the 16 GB version with the same GPU is worth considering.
The cooler has two 95 mm fans that stop completely during light work and only start when the GPU reaches about 60 °C or power draw exceeds roughly 150 W. They stop again once the temperature drops below 50 °C, memory below 80 °C and power draw below 60 W. According to the manufacturer, the composite heat pipes improve heat dissipation by up to 32%.
The card measures 262.1 × 126.3 × 40.1 mm, occupies two expansion slots and weighs only 0.5 kg. The black card has subtle multicolour RGB lighting and a sturdy backplate that adds rigidity to the structure. Palit ThunderMaster software lets you adjust clocks, fan speed and lighting effects, and monitor the status of the GPU.
Maximum power consumption is 180 W, supplementary power comes through one 8-pin PCIe connector, and the manufacturer recommends a power supply of at least 600 W. There are four outputs: three DisplayPort 2.1b and one HDMI 2.1b, with a maximum resolution of 7680 × 4320. HDCP, NVIDIA G-SYNC and VR headsets are supported, and the ninth-generation encoder speeds up video exports.
Gamers who mainly play at Full HD and want a card with DLSS 4 and Reflex 2; PC builders looking for a light 262 mm dual-slot card with a single 8-pin power connector; and users who value quiet operation and subtle RGB lighting in a black build.
| Brand | PALIT |
|---|---|
| Product colour | Black |
| CUDA | Yes |
| HDCP | Yes |
| Fan diameter | 95 |
| Illumination | Yes |
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| Interface type | PCI Express 5.0 |
| Number of fans | 2 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| Number of slots | 2 |
| Data transfer rate | 28 |
| Illumination colour | Multi |
| Virtual Reality (VR) ready | Yes |
| EAN | 4710562245264 |
| Maximum resolution | 7680 x 4320 |
|---|---|
| TV tuner integrated | No |
| Processor frequency | 2407 GHz |
|---|---|
| CUDA cores | 4608 |
| Processor boost clock speed | 2573 |
| Memory bus | 128 |
|---|---|
| Memory bandwidth (max) | 448 |
| Discrete graphics card memory | 8 GB |
|---|---|
| Graphics processor | GeForce RTX 5060 Ti |
| Graphics card memory type | GDDR7 |
| Graphics processor family | NVIDIA |
| Maximum displays per videocard | 4 |
| HDMI ports quantity | 1 |
|---|---|
| HDMI version | 2.1b |
| Dual Link DVI | No |
| DisplayPort version | 2.1b |
| DisplayPorts quantity | 3 |
| Supplementary power connectors | 1x 8-pin |
| Power consumption (max) | 180 W |
|---|---|
| Minimum system power supply | 600 |
| Cooling type | Active |
|---|
| Package type | Box |
|---|---|
| Parallel processing technology support | Not supported |
| Depth | 40.1 mm |
|---|---|
| Height | 126.3 mm |
| Product Net Weight | 0.5 kg |
| Length | 262.1 |
For Full HD gaming and, in many titles, 1440p, yes. For the heaviest textures, large video projects and AI models, the 16 GB version is the more sensible option.
The card is 262.1 mm long, 126.3 mm tall and 40.1 mm thick, which means two expansion slots. Compare the length with the maximum graphics card length given by your case manufacturer.
The manufacturer recommends a power supply of at least 600 W. The card draws up to 180 W and needs one 8-pin PCIe supplementary power connector.
Lighting effects are set in the Palit ThunderMaster software. The lighting is multicolour.
