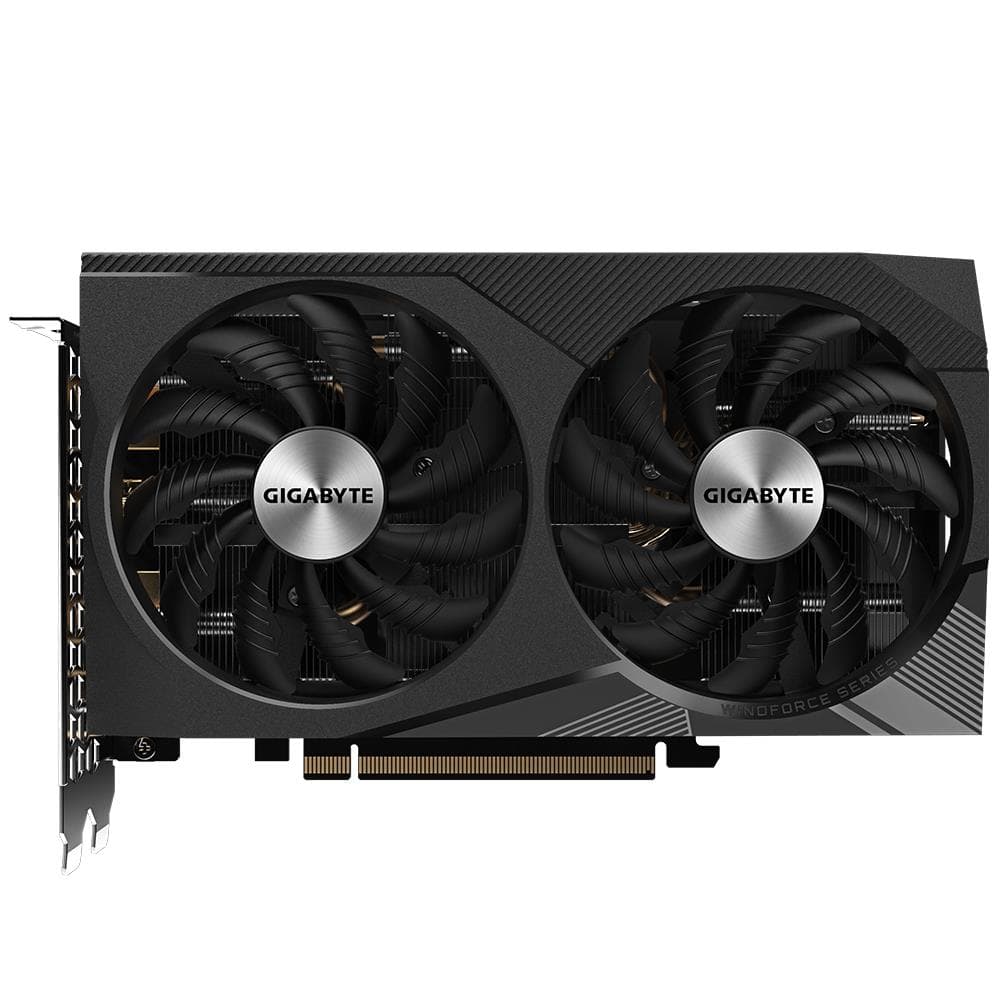

Gigabyte GeForce RTX 3060 Windforce OC graphics card 12 GB GDDR6, rev. 2.0, 198 mm

The Gigabyte GeForce RTX 3060 Windforce OC 12G (rev. 2.0) is a graphics card just 198 mm long that fits small cases and offers 12 GB of GDDR6 video memory. A WINDFORCE 2X cooler with two 90 mm fans, a factory clock of 1792 MHz, and ray tracing and DLSS support make it a compact card for Full HD and 1440p gaming.

  • GPU and memory: NVIDIA GeForce RTX 3060, 3584 CUDA cores, 12 GB GDDR6, 192-bit bus, 360 GB/s
  • Clocks: GPU 1792 MHz (OC), effective memory clock 15,000 MHz
  • Outputs: 2 × HDMI 2.1, 2 × DisplayPort 1.4a, up to 4 displays, up to 7680 × 4320
  • Power: 1 × 8-pin connector, power supply of 550 W or more
  • Dimensions and weight: 198 × 121 × 39 mm, 0.7 kg, PCI Express 4.0 x16
  • Cooling: WINDFORCE 2X, 2 × 90 mm fans, 3 copper heat pipes, back plate

Description

12 GB of video memory on a compact card

The RTX 3060 GPU has 3584 CUDA cores and is paired with 12 GB of GDDR6 memory on a 192-bit bus, at an effective 15,000 MHz and with 360 GB/s of bandwidth. Twelve gigabytes is a large amount for this class, useful both in games with high texture settings and in video editing and 3D work. The card is the Low Hash Rate (LHR) version, intended for gaming and creative work rather than cryptocurrency mining.

Ray tracing, DLSS and NVIDIA Reflex

The Ampere architecture brings second-generation RT cores for ray tracing and third-generation Tensor cores that accelerate AI tasks. NVIDIA DLSS uses them to raise frame rates in supported games, and NVIDIA Reflex cuts system latency in competitive titles. DirectX 12 is supported, and with a G-SYNC monitor the screen refresh is synchronised to the card's frames.

WINDFORCE 2X: silent under light load

The two 90 mm fans spin in opposite directions, which reduces turbulence between neighbouring fans. The 3D Active Fan feature keeps the fans stopped at low load, so the card is silent during office work. Three composite copper heat pipes touch the GPU directly, the memory is cooled through a metal plate, and the extended heatsink lets air pass straight through. According to the manufacturer, graphene nano lubricant extends fan life.

Four outputs and Ultra Durable components

The rear bracket has two HDMI 2.1 and two DisplayPort 1.4a outputs, and up to four displays can be used at the same time. Two HDMI outputs are handy when both a monitor and a TV are connected to the PC. Ultra Durable components include metal chokes, low-ESR solid capacitors, a 2 oz copper PCB and low-resistance MOSFETs. The back plate stiffens the card, and GIGABYTE CONTROL CENTER software lets you adjust the clock, voltage and fans.

Installation and power supply

The card is 198 mm long, 121 mm tall and 39 mm thick and weighs 0.7 kg, so it fits a small case as well. Supplementary power comes through a single 8-pin connector, and the manufacturer recommends a power supply of at least 550 W. The interface is PCI Express 4.0 x16. Supported operating systems are Windows 11, Windows 10 and Windows 7 (64-bit).

Who this graphics card is for

Owners of a small case that cannot take a long card; Full HD and 1440p gamers who want ray tracing, DLSS and 12 GB of video memory; and streamers or video editors who use NVIDIA Broadcast and hardware video encoding. You will need a power supply of at least 550 W with an 8-pin connector.

Specifications

General

BrandGIGABYTE
Product colourBlack
CUDAYes
User guideYes
Fan diameter90
NVIDIA G-SYNCYes
Interface typePCI Express x16 4.0
Number of fans2
OpenGL version4.6
DirectX version12 Ultimate
Low Hash Rate (LHR)Yes
Number of pipelines3
EAN4719331312862

Display

Maximum resolution7680 x 4320
TV tuner integratedNo

Processor

Processor frequency1792 GHz
CUDA cores3584

Memory

Memory clock speed15,000 MHz
Memory bus192
Memory bandwidth (max)360

Graphics

Discrete graphics card memory12 GB
Graphics processorGeForce RTX 3060
Graphics card memory typeGDDR6
Graphics processor familyNVIDIA
Maximum displays per videocard4

Ports

HDMI ports quantity2
HDMI version2.1
Dual Link DVINo
DisplayPort version1.4a
DisplayPorts quantity2
Supplementary power connectors1x 8-pin

Software & security

Windows operating systems supportedWindows 10 x64/Windows 11 x64/Windows 7 x64

Battery & power

Minimum system power supply550

Performance & capacities

Cooling typeActive
Cooling technologyGIGABYTE WINDFORCE 2X

Features

Package typeBox
Parallel processing technology supportNot supported

Dimensions & weight

Depth39 mm
Height121 mm
Product Net Weight0.7 kg
Length198

Questions & answers

Will the card fit in a small case?

The card is only 198 mm long, 121 mm tall and 39 mm thick. Compare these dimensions with the maximum graphics card length in your case specifications.

Is my power supply big enough?

The manufacturer recommends at least 550 W. The card needs one 8-pin supplementary power connector.

What does LHR mean?

LHR, or Low Hash Rate, means that cryptocurrency mining performance is limited. It does not affect gaming, video editing or 3D work.

How many monitors can I connect?

Up to four at once: two HDMI 2.1 and two DisplayPort 1.4a outputs. The maximum supported resolution is 7680 × 4320 pixels.
