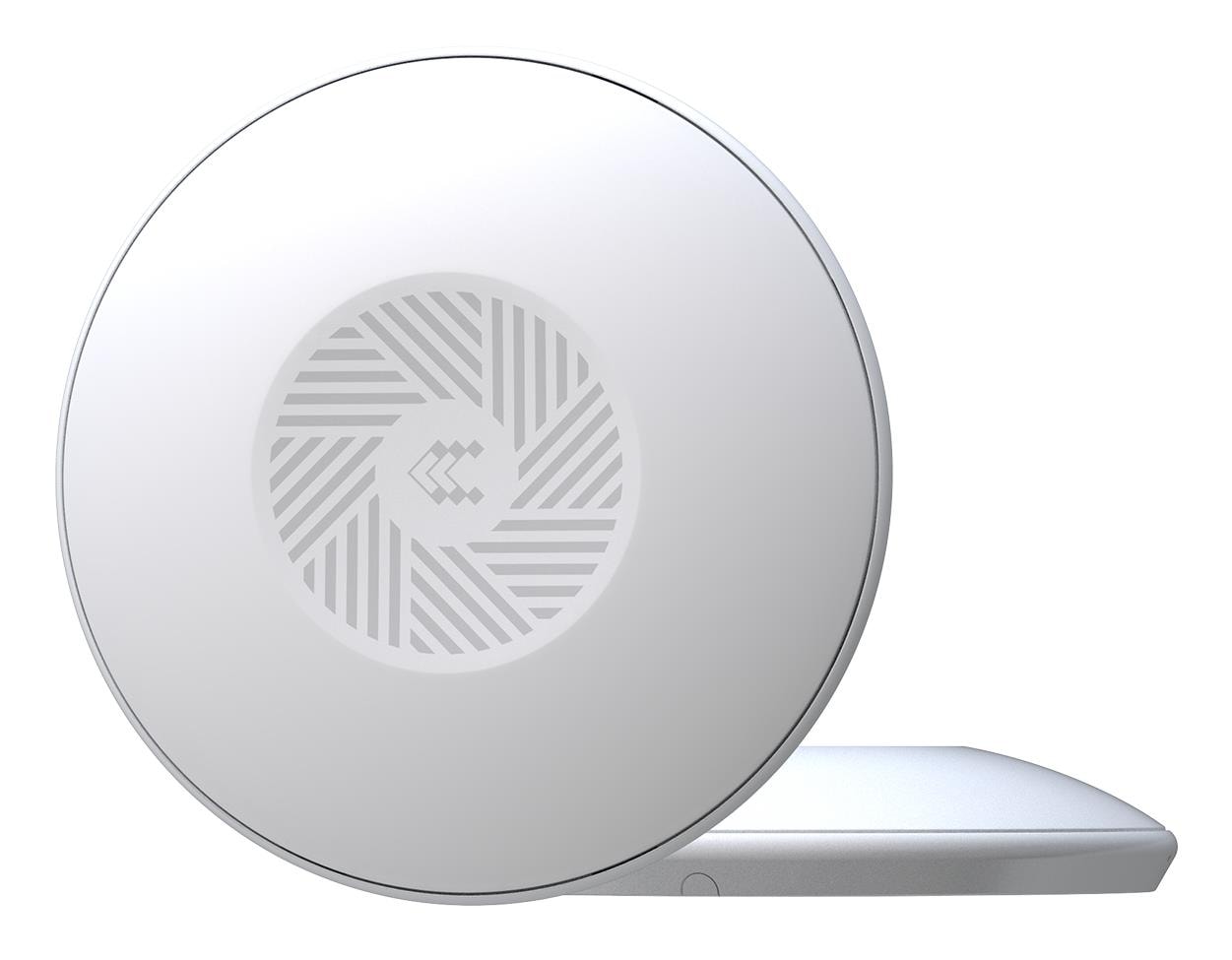

Teltonika TAP100 Wi-Fi 4 access point 300 Mbit/s, PoE, ceiling mount
TELTONIKA

Teltonika TAP100 Wi-Fi 4 access point 300 Mbit/s, PoE, ceiling mount

The Teltonika TAP100 is a ceiling or wall mounted access point that improves wireless coverage in a small office, retail space or café. It is powered by active PoE over the same Ethernet cable and delivers Wi-Fi 4 at up to 300 Mbit/s.

  • Wi-Fi: IEEE 802.11b/g/n (Wi-Fi 4), up to 300 Mbit/s
  • Band: 2.4 GHz, internal antenna
  • Port: 1 × RJ-45, 10/100 Mbit/s
  • Management: web interface, VLAN, 802.11r roaming, WPA3, Teltonika RMS
  • Power: active PoE 44–57 V, up to 2 W
  • Housing: white plastic, IP30, 158 × 158 × 30 mm, 190 g

Description

Installation with a single cable

The access point gets both data and power over one Ethernet cable via active PoE, so no outlet is needed on the ceiling. A mounting kit is included, and the UV-stabilised plastic housing blends into its surroundings. Maximum power draw is just 2 W. Setup runs through the web interface or the Teltonika RMS remote management platform.

Who this access point is for

Small offices, shops, cafés and guesthouses where the router Wi-Fi does not reach every corner. VLAN support keeps the guest network apart from the work network, and roaming helps devices move between several TAP100 units. An operating range of −40 to 75 °C allows installation in unheated rooms too.

Specifications

General

BrandTELTONIKA
Model nameTAP100001000
Product colourWhite
Housing materialPlastic
5 GHzNo
6 GHzNo
2.4 GHzYes
PlacementCeiling, Wall
Mounting kitYes
WAN connectionEthernet (RJ-45)
Firmware upgradeableYes
Web-based managementYes
Maximum data transfer rate300
Operating relative humidity (H-H)10 - 90
EAN4779051840182

Processor

Processor frequency580 GHz
Built-in processorYes

Memory

Internal memory64 GB

Camera

Flash memory16 MB

Ports

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10/100
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedActive PoE

Connectivity

Networking standardsIEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.11r/IEEE 802.3/IEEE 802.3az/IEEE 802.3u
Security algorithmsAES-CCMP/TKIP/WPA2-EAP/WPA2-PSK/WPA3-EAP/WPA3-SAE/WPA-PSK
Antenna typeInternal
Wi-Fi roamingYes

Keyboard & controls

Reset buttonYes

Battery & power

Power consumption (max)2 W
DC voltage range44 - 57

Performance & capacities

Operating temperature (T-T)0 – 40 – 75 °C
MAC address filteringYes

Features

International Protection (IP) codeIP30
LED indicatorsPower
VLAN supportYes
Cabling technology10/100Base-T(X)

Dimensions & weight

Width158 mm
Depth30 mm
Height158 mm
Weight190 g

Questions & answers

What PoE does the TAP100 need?

It supports active PoE at 44–57 V, so a PoE switch or a PoE injector will do. The manufacturer does not specify whether an injector is included.

Can it be mounted on a wall?

Yes. It can go on the ceiling or a wall, and a mounting kit is included.

Can I separate a guest network?

Yes. The TAP100 supports VLANs, so guest and staff traffic can be kept on separate networks.
