MIKROTIK

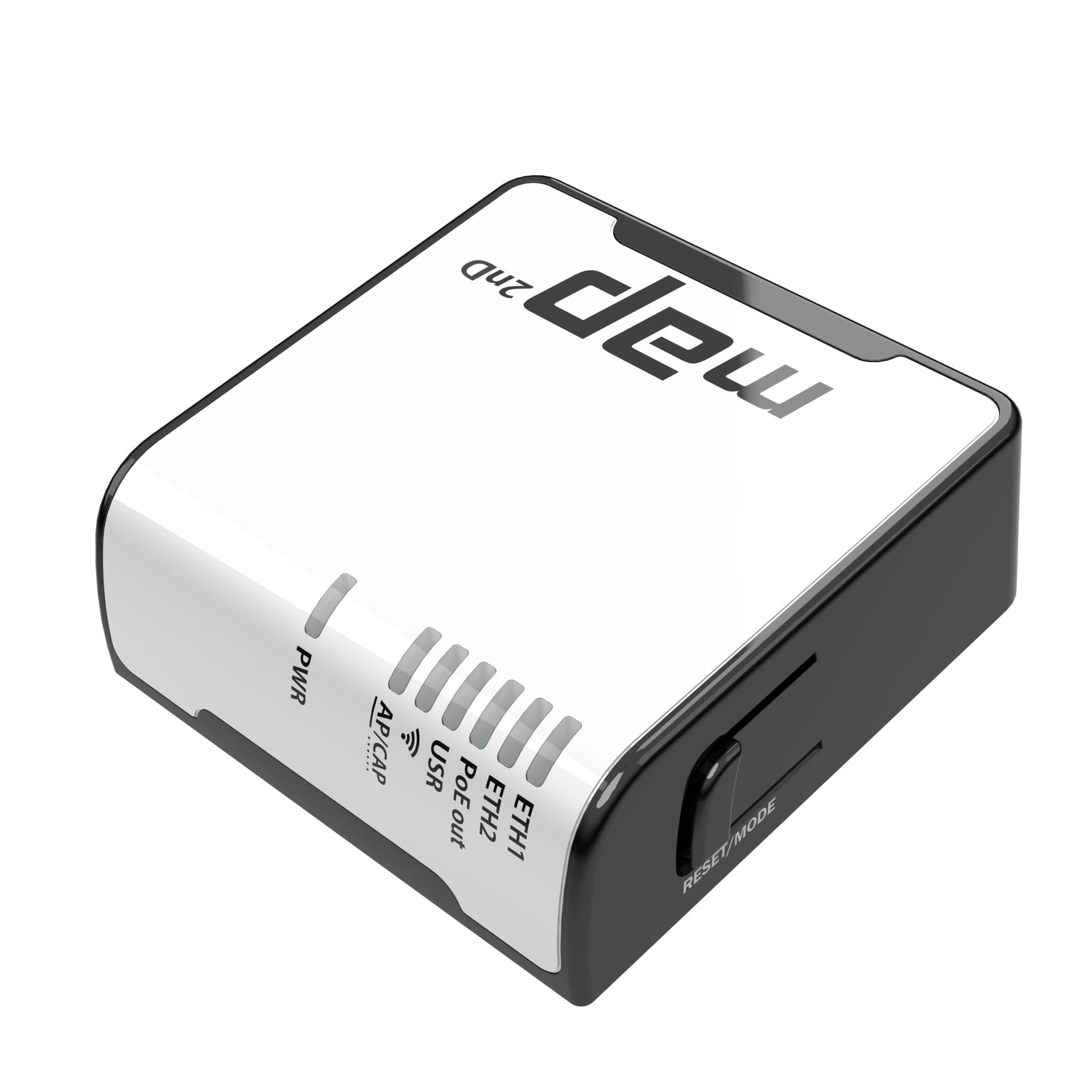

MikroTik mAP 2.4GHz Micro Wireless Access Point with PoE

  • Internal memory64 GB
  • Output voltage24 V
  • Antenna gain level (max)1.2
  • Flash memory16 MB
  • Operating system installedLinux
  • Width68 mm

The MikroTik mAP (micro Access Point) is a compact dual-chain 2.4GHz wireless access point running full RouterOS, giving you router-grade control in a desktop-friendly form factor. With built-in PoE support and two Ethernet ports, it does far more than a standard AP.

Description

Two Ethernet Ports, One Powerful Little Device

  • PoE in and out: accepts Passive PoE power and can supply up to 500mA through its second Ethernet port to power another device, such as a CPE unit
  • 2 LAN ports let you extend wired connectivity alongside your wireless network
  • Table placement design keeps setup straightforward on a desk or shelf without wall mounting
  • Available in black or white to blend into different environments
  • Full RouterOS support for advanced routing, firewall and traffic management features

A practical fit for home offices, small retail spaces or field deployments where a lightweight, PoE-capable wireless access point with wired passthrough is needed without bulky hardware.

Specifications

General

BrandMIKROTIK
Model namemAP // RBmAP2nD
Product colourBlack/White
5 GHzNo
2.4 GHzYes
InternalNo
PlacementTable
Operating relative humidity (H-H)-10 - 70
EAN4752224004291

Processor

Built-in processorYes

Memory

Internal memory64 GB

Camera

Flash memory16 MB

Ports

USB 2.0 ports quantity1
USB connector typeUSB Type-B
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10/100
DC-in jackYes
Power over Ethernet (PoE)Yes

Connectivity

Networking standardsIEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at
Antenna gain level (max)1.2

Software & security

Operating system installedLinux

Battery & power

AC adapter includedYes
Output voltage24 V
Output current0.8

Features

Cables includedUSB
LED indicatorsYes
Auto MDI/MDI-XYes

Dimensions & weight

Width68 mm
Depth68 mm
Height19 mm
