UBIQUITI

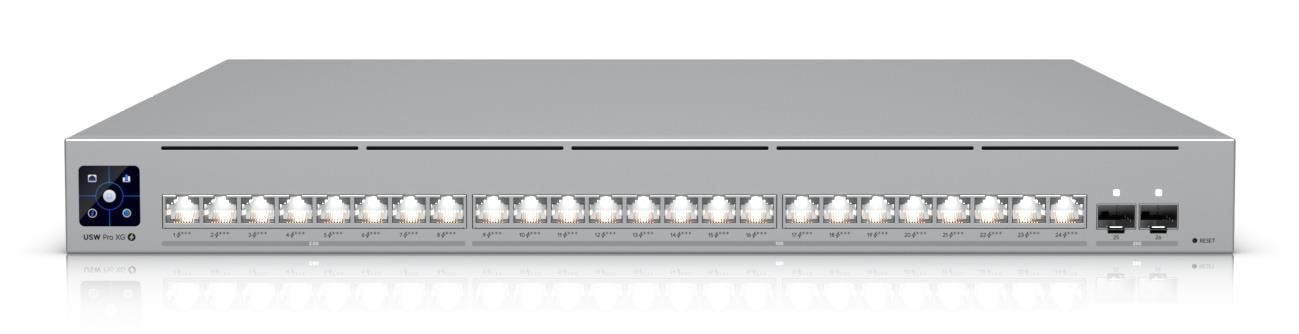

Ubiquiti UniFi Pro XG 24 PoE 10G Managed Network Switch

Display typeLCM
Switching capacity460
Power consumption (max)870 W
Operating temperature (T-T)0 – 5 – 40 °C
Switch typeManaged
Width442 mm

The Ubiquiti UniFi Pro XG 24 PoE is a rack-mountable, Layer 2/3 managed network switch built for high-density 10G deployments. With 24 PoE++ (4PPoE) ports and a 720 W power budget, it delivers serious wired infrastructure without compromising on port density or uplink capacity.

Description

High-Throughput PoE++ Switching for Demanding Environments

16 × 10G copper ports and 8 × 2.5G copper ports provide flexible, multi-speed connectivity across your network
2 × SFP28 25G uplink ports keep aggregation bandwidth well ahead of edge traffic
720 W total PoE++ budget across all 24 ports supports power-hungry devices like Wi-Fi 7 APs and PTZ cameras
Full Layer 3 managed switching with stackable 1U rack form factor suits structured cabling deployments
Native UniFi controller integration enables centralised management alongside other UniFi network gear

The USW-PRO-XG-24-POE is a strong fit for enterprise offices, university campuses, data centre edge layers, and large-scale hospitality or venue networks that require high-speed PoE switching with room to grow.

Specifications

General

Brand	UBIQUITI
Form factor	1U
Model name	Pro XG 24 PoE
Product colour	Grey
Housing material	SGCC
Stackable	Yes
Throughput	230
IPv4 routes	256000
Static route	Yes
IGMP snooping	Yes
Rack mounting	Yes
Rate limiting	Yes
Rack mount kit	Yes
Forwarding rate	342
Number of VLANs	1000
MAC address table	128000
Packet buffer memory	8
Broadcast storm control	Yes
Operating relative humidity (H-H)	10 - 90
Access Control List (ACL) IPv4 entries	256
EAN	810177160762

Display

Display type	LCM
Backlight display	Yes

Storage

Switching capacity	460

Ports

Power over Ethernet (PoE)	Yes
Port mirroring	Yes
Power connector	AC/DC
SFP28 ports quantity	2
Virtual LAN features	Interface-based VLAN/Voice VLAN
10G Ethernet (copper) ports quantity	16
2.5G Ethernet (copper) ports quantity	8
Total Power over Ethernet (PoE) budget	720
Power over Ethernet (PoE) power per port	15.4
Power over Ethernet (PoE) type supported	PoE+++
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity	24
Power over Ethernet 4PPoE (PoE++) ports quantity	24

Keyboard & controls

Switch type	Managed
Reset button	Yes
Switch layer	L2/L3

Battery & power

Power consumption (max)	870 W
AC input voltage	100 – 240 V
AC input frequency	50/60
Power source	AC/DC
Power supply included	Yes
Redundant power supply (RPS) support	Yes

Performance & capacities

Operating temperature (T-T)	0 – 5 – 40 °C

Features

Cables included	Power
10G support	Yes
VLAN support	Yes
DHCP features	DHCP guarding/DHCP relay/DHCP server/DHCPv6 snooping
Loop protection	Yes
Multicast support	Yes
Flow control support	Yes
Jumbo frames support	Yes
Quality of Service (QoS) support	Yes
