UBIQUITI

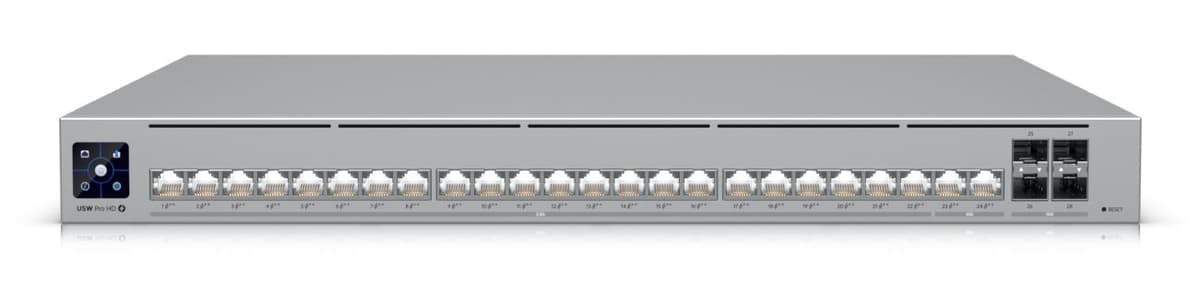

Ubiquiti USW-Pro-HD-24-PoE Layer 3 managed switch 2.5G 600W PoE++

Display typeLCM
Switching capacity230
Power consumption (max)60 W
Operating temperature (T-T)0 – 5 – 40 °C
Networking standardsIEEE 802.1x
Switch typeManaged

The Ubiquiti UniFi USW-Pro-HD-24-PoE is a rack-mountable Layer 3 managed switch built for high-density PoE++ deployments, delivering up to 600W of total PoE budget across 22 x 2.5 GbE and 2 x 10 GbE ports — with an additional 4 x 10G SFP+ uplinks for fibre or direct-attach connectivity.

Description

High-wattage PoE++ with multi-gigabit throughput

22 x 2.5 GbE PoE++ ports (100/1000/2500 Mbps) for access points, cameras and other powered devices
4 x 10G SFP+ ports for uplink aggregation or inter-switch connections
600W total PoE availability — supports demanding devices without a separate injector
Layer 3 managed — supports routing, VLANs and granular network segmentation
1U rack-mount form factor fits standard 19-inch server racks

Well suited for enterprise offices, university campuses, hospitality venues and mid-to-large SME networks that need high-throughput multi-gigabit switching with substantial PoE capacity in a single 1U unit.

Specifications

General

Brand	UBIQUITI
Form factor	1U
Product colour	Grey
Housing material	SGCC
Stackable	Yes
Throughput	115
IPv4 routes	12000
Static route	Yes
IGMP snooping	Yes
Rack mounting	Yes
Rate limiting	Yes
Rack mount kit	Yes
Forwarding rate	171
Number of VLANs	1000
MAC address table	32000
Packet buffer memory	2
Broadcast storm control	Yes
SFP+ module slots quantity	4
Operating relative humidity (H-H)	10 - 90
EAN	810084696606

Display

Display type	LCM

Storage

Switching capacity	230

Ports

Power over Ethernet (PoE)	Yes
Port mirroring	Yes
Power connector	AC/DC
Virtual LAN features	Voice VLAN
10G Ethernet (copper) ports quantity	2
2.5G Ethernet (copper) ports quantity	22
Total Power over Ethernet (PoE) budget	600
Power over Ethernet (PoE) power per port	15.4
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity	22
Power over Ethernet 4PPoE (PoE++) ports quantity	24

Connectivity

Networking standards	IEEE 802.1x

Keyboard & controls

Switch type	Managed
Reset button	Yes
Switch layer	L2/L3

Battery & power

Power consumption (max)	60 W
AC input voltage	100 – 240 V
AC input frequency	50/60
Power source	AC/DC/PoE
Power supply included	Yes
Redundant power supply (RPS) support	Yes

Performance & capacities

Operating temperature (T-T)	0 – 5 – 40 °C

Features

Cables included	Power
LED indicators	Link/Speed/Status
10G support	Yes
VLAN support	Yes
DHCP features	DHCP guarding/DHCP relay/DHCP server/DHCP snooping
Loop protection	Yes
Multicast support	Yes
Flow control support	Yes
Jumbo frames support	Yes
Quality of Service (QoS) support	Yes
