UBIQUITI

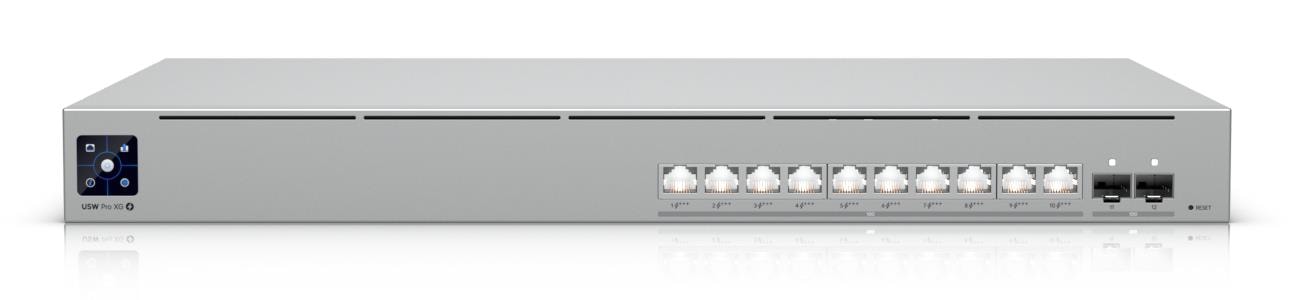

Ubiquiti USW-Pro-XG-10-PoE Layer 3 managed 10G switch with PoE

Display typeLCM
Switching capacity240
Power consumption (max)520 W
Operating temperature (T-T)0 – 5 – 40 °C
Switch typeManaged
Width442.4 mm

The Ubiquiti USW-Pro-XG-10-PoE is a 1U rack-mountable, Layer 3 managed network switch built around ten 10 GbE ports and two 10G SFP+ uplinks — a serious high-density 10G switch for environments where bandwidth and power delivery both matter at scale.

Description

High-speed PoE switching with full Layer 3 control

10 × 10G Ethernet ports (100/1000/10000) deliver full wire-speed throughput across every port
PoE output powers demanding devices directly from the switch, up to 400 W total budget
2 × 10G SFP+ ports provide flexible fibre or DAC uplink options
Layer 3 managed feature set enables inter-VLAN routing, static routes and granular traffic control
1U rack-mount form factor fits cleanly into standard server or network cabinets

This switch suits IT professionals deploying high-throughput core or aggregation layers in enterprise offices, data centres, university campuses and demanding SMB environments where 10G to the edge is a requirement rather than a luxury.

Specifications

General

Brand	UBIQUITI
Form factor	1U
Product colour	Grey
Housing material	SGCC
Manual	Yes
Stackable	Yes
Throughput	120
IPv4 routes	12000
Static route	Yes
IGMP snooping	Yes
Rack mounting	Yes
Rate limiting	Yes
Rack mount kit	Yes
Forwarding rate	179
Number of VLANs	1000
MAC address table	32000
Packet buffer memory	2
Broadcast storm control	Yes
SFP+ module slots quantity	2
Operating relative humidity (H-H)	10 - 90
EAN	810177160137

Display

Display type	LCM
Backlight display	Yes

Storage

Switching capacity	240

Ports

Power over Ethernet (PoE)	Yes
Port mirroring	Yes
Power connector	AC/DC
Virtual LAN features	Interface-based VLAN/Voice VLAN
10G Ethernet (copper) ports quantity	10
Total Power over Ethernet (PoE) budget	400
Power over Ethernet (PoE) power per port	15.4
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity	10
Power over Ethernet 4PPoE (PoE++) ports quantity	10

Keyboard & controls

Switch type	Managed
Reset button	Yes
Switch layer	L2/L3

Battery & power

Power consumption (max)	520 W
AC input voltage	100 – 240 V
AC input frequency	50/60
Power source	AC/DC
Power supply included	Yes
Redundant power supply (RPS) support	Yes

Performance & capacities

Operating temperature (T-T)	0 – 5 – 40 °C

Features

Cables included	Power
LED indicators	System
10G support	Yes
VLAN support	Yes
DHCP features	DHCP guarding/DHCP relay/DHCP server/DHCPv6 snooping
Loop protection	Yes
Multicast support	Yes
Flow control support	Yes
Jumbo frames support	Yes
Quality of Service (QoS) support	Yes
