UNITREE

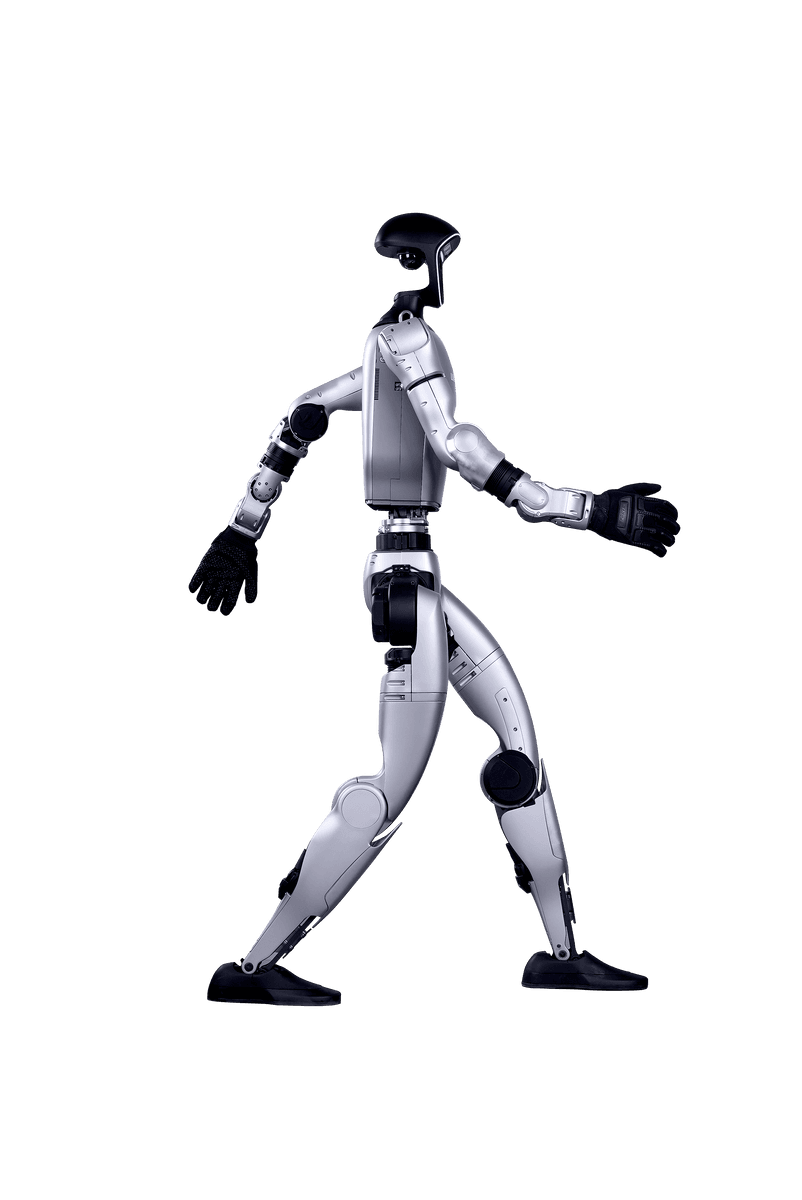

Unitree G1 Edu U1 humanoid robot, 23 DoF, 100 TOPS expansion dock, SDK

Name: Unitree G1 Edu U1 humanoid robot, 23 DoF, 100 TOPS expansion dock, SDK
Brand: UNITREE
SKU: IP-800052171
Price: 34429 EUR
Availability: InStock

The Unitree G1 Edu U1 is the fundamental developer version of the G1 humanoid robot, designed for researchers, developers and educational institutions. The platform is fully open to secondary development: it ships with low-level and high-level SDKs, robot models, APIs, documentation and technical support. For AI tasks it has an expansion dock with 100 TOPS of computing power. Compared with the Basic model, knee torque is raised to 120 N·m and arm payload to 3 kg.

Description

Its kinematics include 23 degrees of freedom: six-axis legs, five-axis arms and a single-axis waist; an optional dexterous hand and 2-DoF wrist can be added. Depth camera, 3D laser scanner, stereo speakers and microphone array; Wi-Fi 6, Bluetooth 5.2, Smart OTA. The quick-release smart battery provides about 2 h of operation. Standing 127 × 45 × 20 cm, folded 69 × 45 × 30 cm, weight about 35 kg.

Type: humanoid robot, Edu U1 developer version for universities and research labs
Degrees of freedom: 23 (leg 6, arm 5, waist 1), optional hand + 2-DoF wrist
Mechanics: knee torque 120 N·m, arm payload 3 kg, dual encoders
Computing: 8-core CPU + 100 TOPS expansion dock, SDK, Smart OTA
Perception and audio: depth camera, 3D laser scanner, stereo speakers, microphone array
Battery and runtime: smart quick-release battery (13 strings), ~2 h
Weight and size: ~35 kg, 127 × 45 × 20 cm standing, 69 × 45 × 30 cm folded
In the box: robot, remote control, charger, smart battery
MPN: 077286, manufacturer Unitree, warranty 12 months
