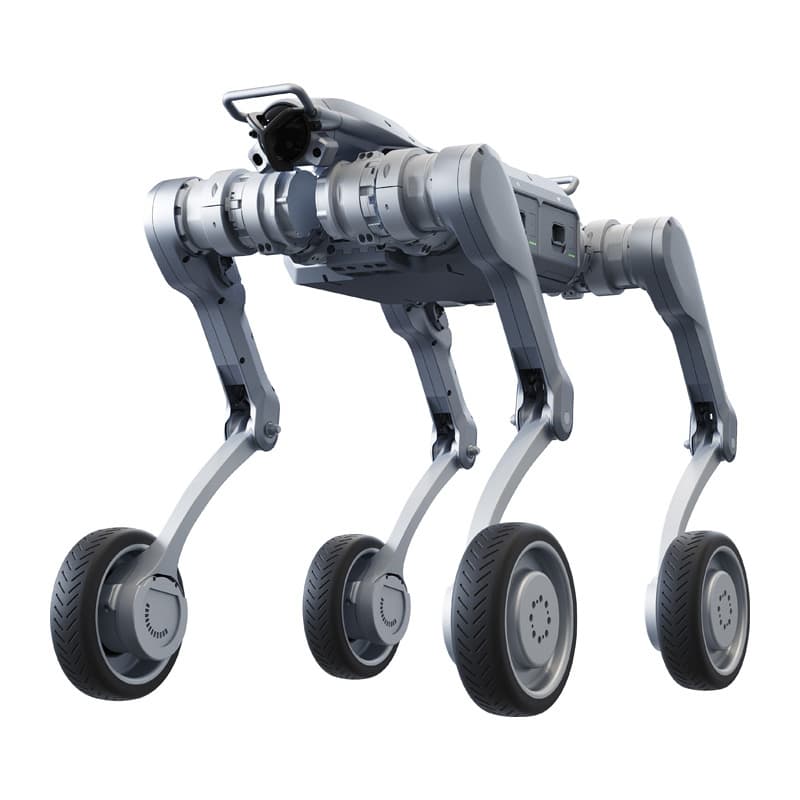

Unitree A2-W wheeled quadruped robot, LiDAR + HD camera, 25 kg payload, 5 h
UNITREE

Unitree A2-W wheeled quadruped robot, LiDAR + HD camera, 25 kg payload, 5 h

The Unitree A2-W is a wheel-driven industrial quadruped robot for efficient movement over demanding terrain. An extension of the A2 platform, it adds wheels for more energy-efficient, smoother travel over long distances. Weighing about 37 kg, the robot carries up to 25 kg in motion and holds up to 100 kg in static mode, climbing steps of up to 30 cm and slopes of up to 45°. Twelve PMSM motors deliver around 180 N·m of torque.

Description

Orientation relies on an industrial LiDAR and a front HD camera, with front lighting for dark spaces. Two hot-swappable 9000 mAh batteries give up to 5 h and about 20 km unloaded, or about 3 h with a 25 kg load. On board are an 8-core processor and an Intel Core i7; interfaces include RS485, CAN, Gigabit Ethernet, USB-C, Wi-Fi 6, Bluetooth 5.2 and Smart OTA. A speaker and microphone provide voice messaging. IP56, –20 °C to 55 °C.

  • Type: wheel-driven industrial quadruped robot (standard version)
  • Payload: up to 25 kg in motion, up to 100 kg static
  • Terrain: steps up to 30 cm, slopes up to 45°, joint torque ~180 N·m
  • Batteries and runtime: 2 × 9000 mAh (907.2 Wh), hot-swap; up to 5 h / ~20 km unloaded
  • Perception: industrial LiDAR (front), HD camera (front), front LED lighting
  • Computing and interfaces: 8-core CPU + Intel Core i7; RS485, CAN, Gigabit Ethernet, USB-C
  • Weight and size: ~37 kg, 82 × 44 × 57 cm standing, IP56
  • MPN: 080987, manufacturer Unitree
  • Warranty: 12 months

Specifications

BrandUNITREE
Weight (boxed)101.5 kg
Warranty12 months
EAN5907085529769
