UNITREE

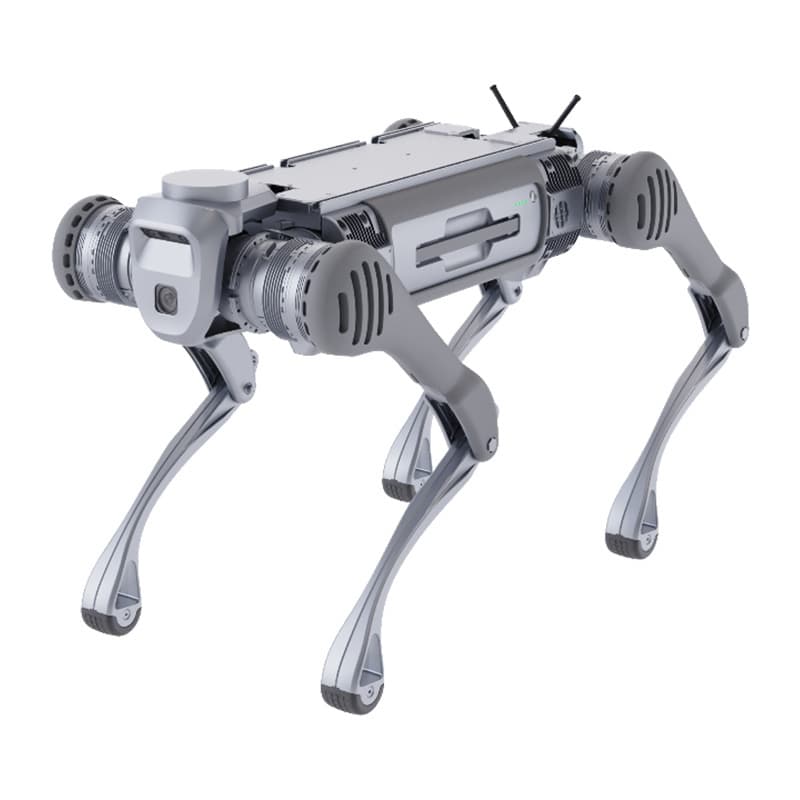

Unitree B2 industrial quadruped robot dog, 6 m/s, 3D LiDAR, up to 120 kg load

Name: Unitree B2 industrial quadruped robot dog, 6 m/s, 3D LiDAR, up to 120 kg load
Brand: UNITREE
SKU: IP-800052169
Price: 73519 EUR
Availability: InStock

The Unitree B2 is an industrial quadruped platform built for the most demanding conditions. A top speed above 6 m/s makes it one of the fastest industrial robot dogs in its class, and M107 joint modules with around 360 N·m of torque keep it stable during dynamic manoeuvres. The robot handles slopes above 45° and stairs with 20–25 cm steps, clears obstacles up to 40 cm, jumps up to 1.6 m and drops from heights of up to 1 m.

Description

In static mode the B2 holds up to 120 kg; while walking it carries more than 40 kg. The 45 Ah (2250 Wh) battery gives 4–6 h of operation: more than 5 h and up to 20 km unloaded. Perception relies on a 32-beam 3D LiDAR, two depth cameras and two optical cameras; standard Intel Core i5 + i7, optional Jetson Orin NX. IP67, –20 °C to 55 °C. Ideal for infrastructure inspection, rescue operations, patrols and logistics.

Type: industrial quadruped robot dog, optional wheel mounting
Speed and terrain: above 6 m/s, stairs 20–25 cm, obstacles up to 40 cm, slopes above 45°
Load: up to 120 kg standing, more than 40 kg walking
Battery and runtime: 45 Ah / 2250 Wh, 58 V; ~4–6 h, up to 20 km unloaded
Perception: 32-beam 3D LiDAR, 2 depth cameras, 2 optical cameras
Computing: Intel Core i5 + i7; optional i7 + Jetson Orin NX
Weight and size: ~60 kg, ~109.8 × 45 × 64.5 cm standing, IP67
MPN: 077268, manufacturer Unitree
Warranty: 12 months
