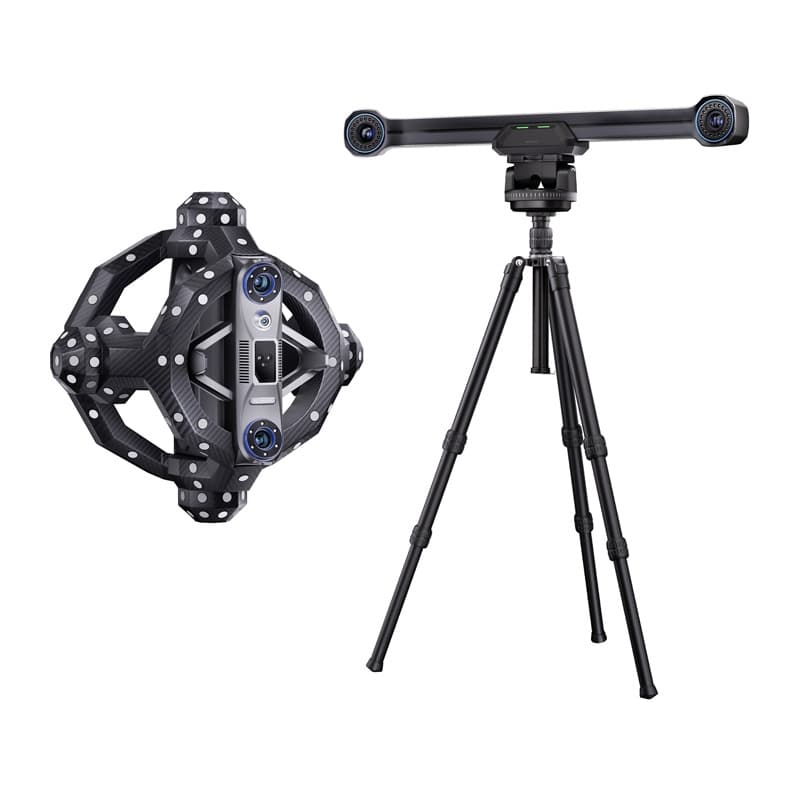

Revopoint Trackit optical 3D scanner with tracker, 0.02 mm, objects up to 6 m

Track Scan mode follows the scanner position in real time without markers, Multi-Position Scan stitches large models from sections, and Marker Scan helps on challenging surfaces. Two dual-axis gimbals simplify calibration, while Revo Trackit software merges point clouds and generates the mesh. The scanner weighs 1.2 kg and the tracker 1.8 kg, both with a carbon fiber frame and polycarbonate housing, and they travel in wheeled cases.

• Type: optically tracked 3D scanner (scanner + tracker)
• Accuracy: single-frame 0.02 mm, volumetric 0.025 mm + 0.04 mm × L (m), point distance up to 0.05 mm
• Scanner: up to 1,500,000 points/s, working distance 200–400 mm, single frame from 160 × 70 mm to 320 × 215 mm, 1.2 kg
• Tracker: working distance 1500–4000 mm, 11 m³ tracking volume, objects 0.01–6 m, infrared, 1.8 kg
• Formats and temperature: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX; 0–40 °C
• Recommended PC: Windows 10/11 (64-bit), 12th-gen Intel Core i9, 64 GB RAM, NVIDIA RTX 4060 8 GB, USB 3.0
• In the box: scanner, tracker, 2 dual-axis calibration gimbals, 3 tripods, calibration board and pole, power supply, cables, magnetic markers, magnetic anchor block, positioning mat, USB stick, 2 wheeled cases
• MPN and manufacturer: TRACKIT, Revopoint
• Warranty: 12 months
